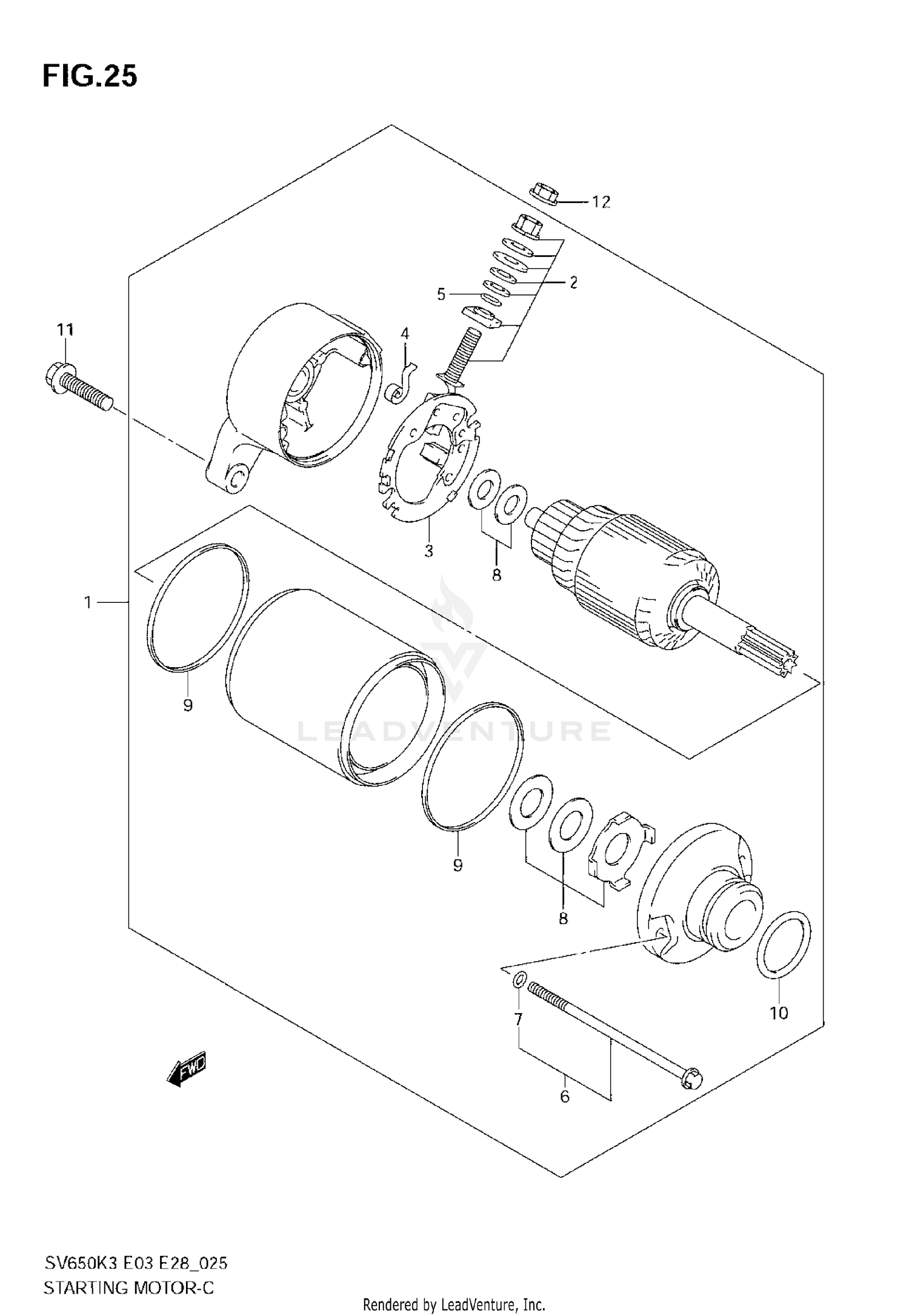

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY,STARTING
31100-19F00
Superseded by 31100-19F10
|
$619.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TERMINAL SET, BRUSH
31130-13E00
|
$54.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRUSH HOLDER SET
31132-33E00
|
$72.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
..SPRING, BRUSH
31135-31300
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING
31143-49040
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SET BOLT
31280-19F00
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
31156-13E00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER SET
31170-19B10
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING
31264-13E00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING (D:3,ID:24.5)
09280-24003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-06253
Superseded by 01547-0625B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08361-35068
Superseded by 08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
