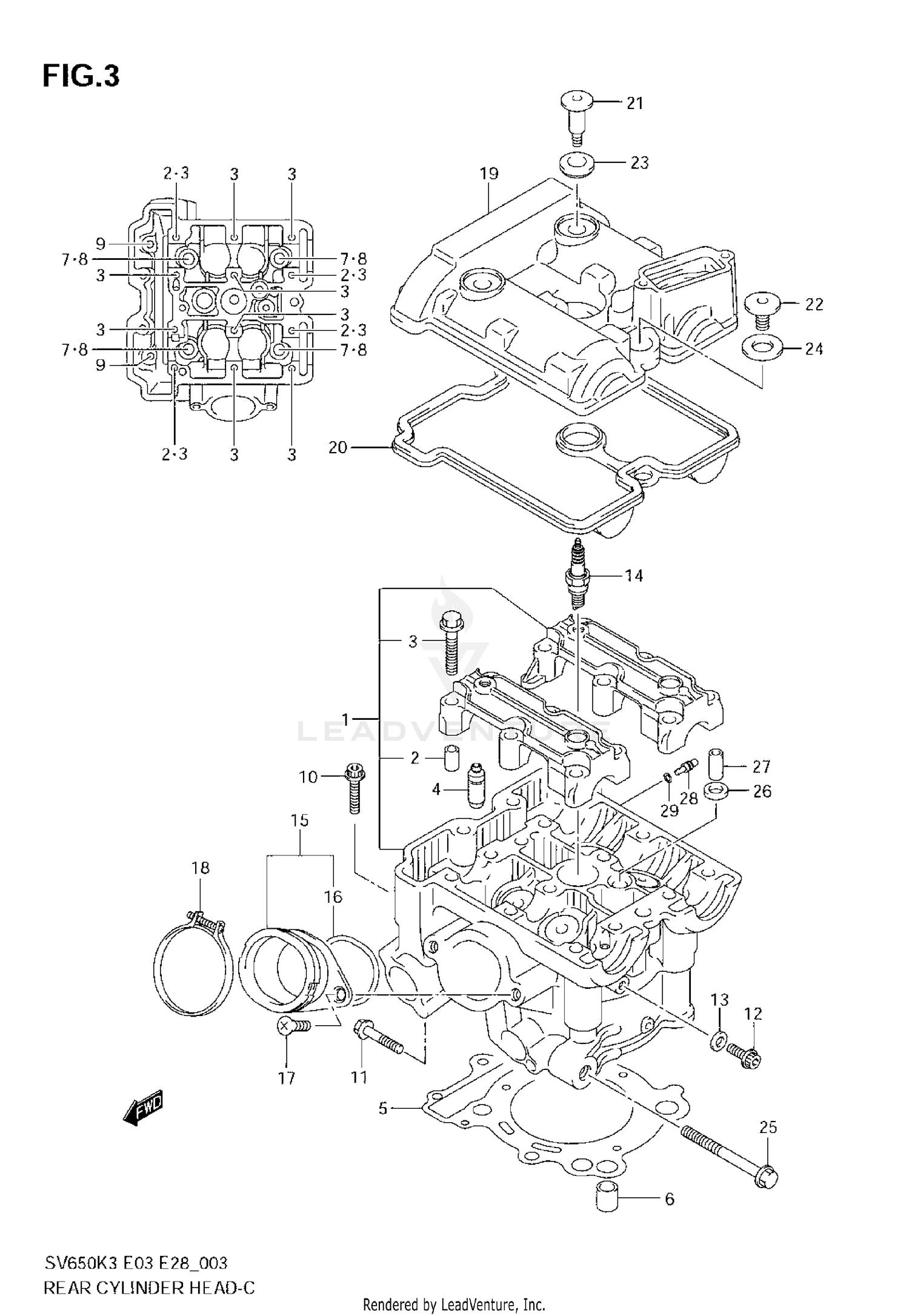

Rear Cylinder Head (model K3/k4/k5/k6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER REAR
11103-17G01
|
$662.37 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER REAR
11103-17G10
|
$797.85 | ||
|
Unavailable |
|||
|
#2
PIN (6.2X8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X39)
09103-06026
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE
11115-18D72
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET,CYLINDER HEAD
11141-20F00
|
$55.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER (10.5X19X2.0)
09160-10082
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X160)
09103-10272
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X70)
09103-06103
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07120-06403
Superseded by 07120-0640B
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-10557
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.08 | ||
|
Unavailable |
|||
|
#14
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPARK PLUG (CR9E)
09482-00458
|
$7.76 | ||
|
Unavailable |
|||
|
#14
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE ASSY,INTAK
13102-17G00
Superseded by 13102-17G01
|
$59.97 | ||
|
Unavailable |
|||
|
#16
.O-RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$8.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP
09402-62208
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD REAR
11172-17G00
|
$130.49 | ||
|
Unavailable |
|||
|
#20
.GASKET,CYLINDER HEAD COVER
11173-19F01
|
$42.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (7X17.5)
09106-07009
Superseded by 09106-07021
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (L:19)
09106-07010
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
09161-11008
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION,HEAD COVER BOLT
11192-13E00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
09103-10148
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, 2ND AIR PASSAGE
11182-35F00
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN
09206-08007
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET (#80)
09493-80005
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
