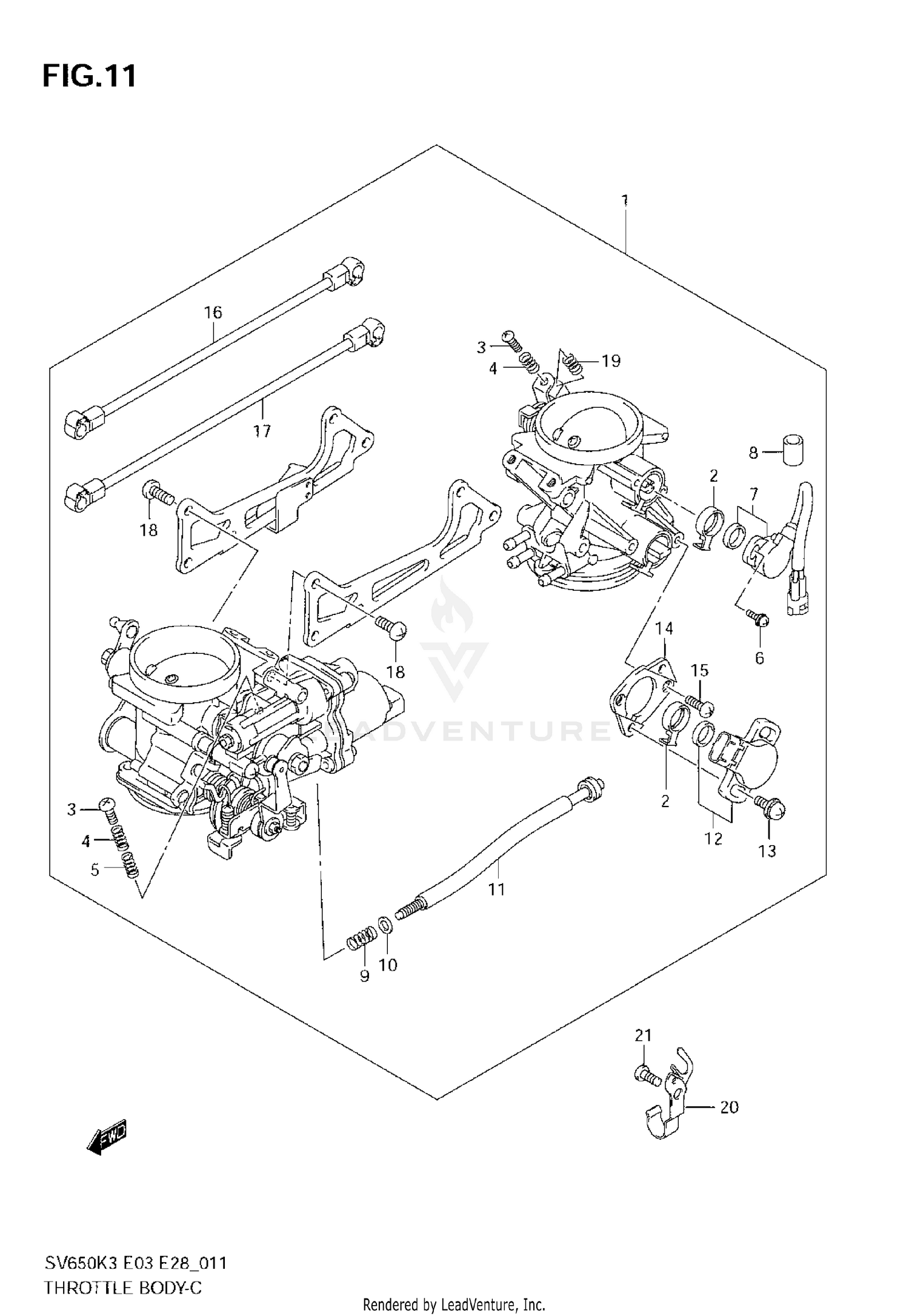

Throttle Body (model K3/k4/k5/k6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
13405-17G00
Superseded by 13405-17G02
|
$1,061.34 | ||
|
Unavailable |
|||
|
#1
THROTTLE BODY
13405-17G10
Superseded by 13405-17G12
|
$1,380.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
13405-17G01
Superseded by 13405-17G02
|
$1,061.34 | ||
|
Unavailable |
|||
|
#1
THROTTLE BODY
13405-17G11
Superseded by 13405-17G12
|
$1,380.31 | ||
|
Unavailable |
|||
|
#2
RING
13311-06G00
|
$3.60 | ||
|
Unavailable |
|||
|
#3
SCREW
13548-42F00
|
$2.61 | ||
|
Unavailable |
|||
|
#4
SPRING
13271-44B00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13268-96111
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
13605-39F00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR ASSY
13580-16G00
|
$182.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13683-39F10
|
$2.14 | ||
|
Unavailable |
|||
|
#9
SPRING
13271-93011
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
PACKING
13386-09410
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUST SCREW ASSY
13270-06G00
|
$97.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY,THR
13550-13D60
Superseded by 13550-13D61
|
$109.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
13605-02F00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
13627-16G30
|
$19.04 | ||
|
Unavailable |
|||
|
#15
SCREW
02112-04107
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD ASSY
13552-16G10
|
$27.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD ASSY
13552-16G00
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
13602-06128
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
13268-89J00
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, IDLE ADJUST
13279-16G00
|
$3.89 | ||
|
Unavailable |
|||
|
#20
PLATE, IDLE ADJUST
13279-16G10
|
$4.72 | ||
|
Unavailable |
|||
|
#21
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
