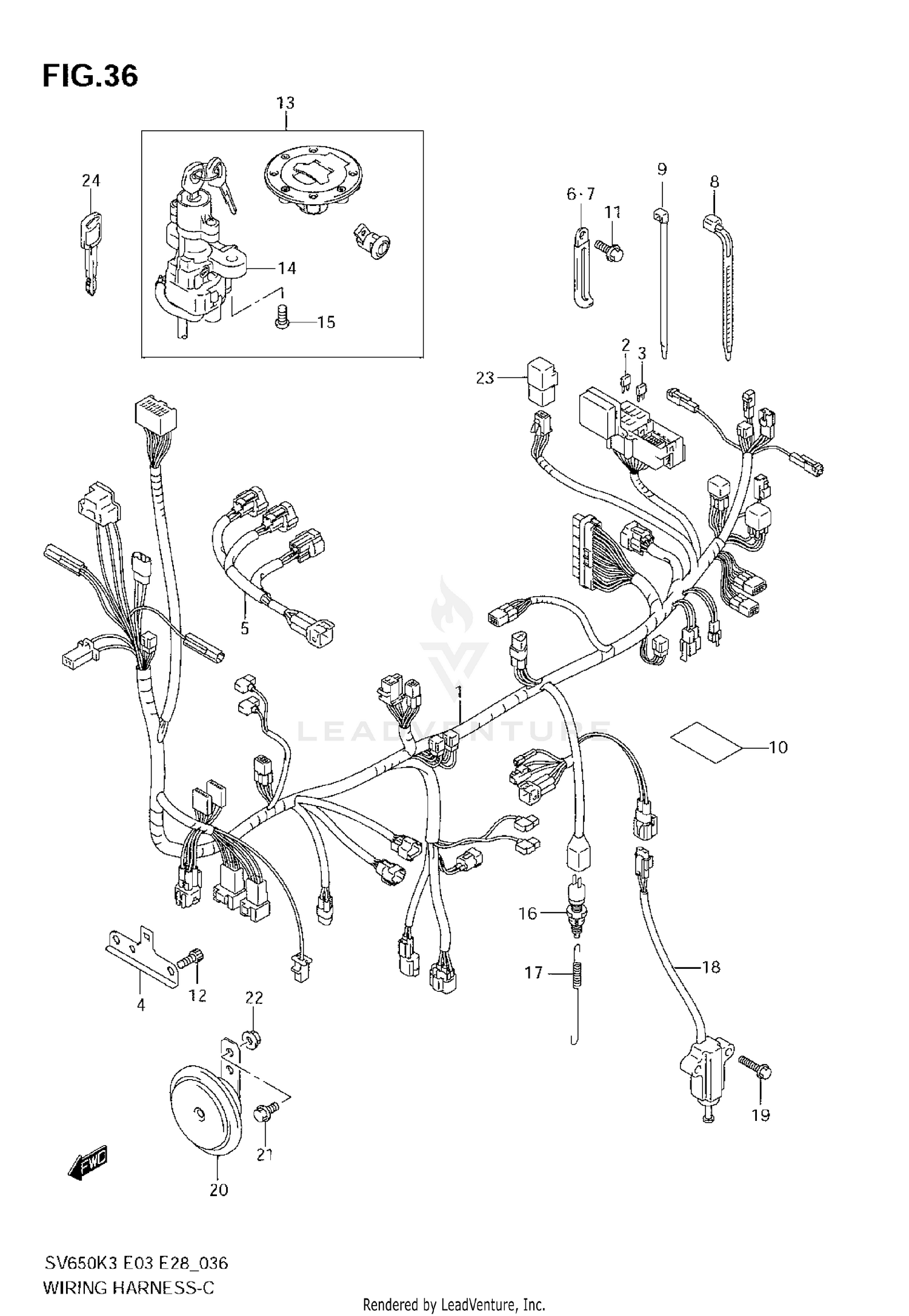

Wiring Harness (sv650k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-17G80
Superseded by 36610-17GV0
|
$722.00 | ||
|
Unavailable |
|||
|
#1
HARNESS, WIRING
36610-17GB0
|
$705.83 | ||
|
Unavailable |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, COUPLER
36687-17G00
|
$3.82 | ||
|
Unavailable |
|||
|
#5
WIRE, INJECTOR LEAD
36859-16G00
|
$189.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#6
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09404-08207
Superseded by 09404-08212
|
$1.58 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, NO.3
07130-06103
Superseded by 07130-0610B
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK SET
37000-16820
Superseded by 37000-16844
|
$413.04 | ||
|
Unavailable |
|||
|
#13
LOCK SET
37000-16830
Superseded by 37000-16852
|
$434.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK ASSY,STEER
37100-16G20
Superseded by 37100-16G02
|
$202.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X20)
09139-08016
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY, STOP LAMP
37740-24A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-06005
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-06016
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SWITCH ASSY,SID
37840-26X50
Superseded by 37840-26X52
|
$94.41 | ||
|
Unavailable |
|||
|
#19
BOLT (6X25)
09103-06211
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN ASSY
38500-17G00
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, BLANK
37146-33E00
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
