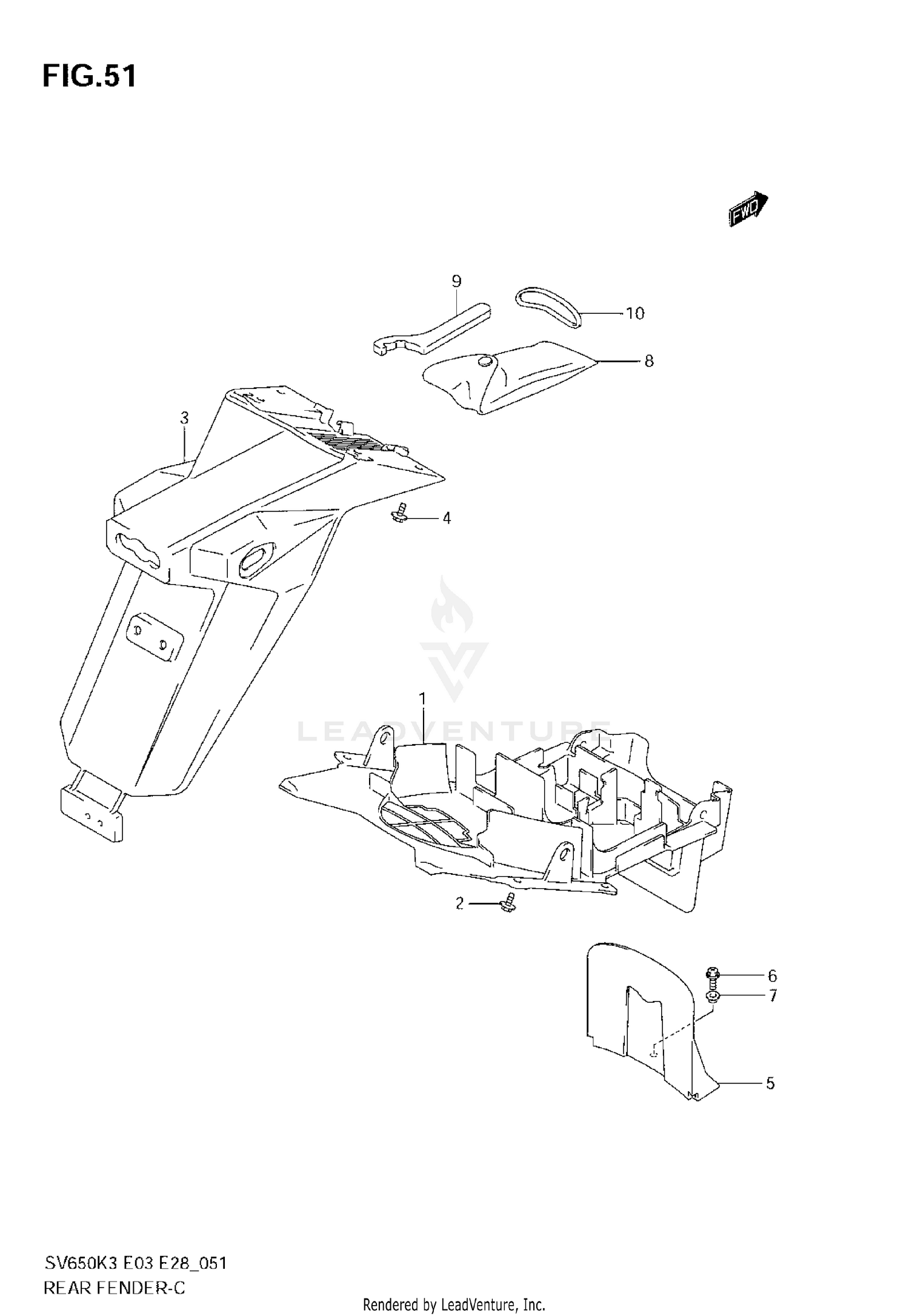

Rear Fender (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR, FRONT (BLACK)
63111-16G00-291
|
$97.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,6X14
09116-06098
Superseded by 09116-06098-XC0
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER, REAR
63112-16G10-291
|
$62.01 | ||
|
Unavailable |
|||
|
#4
BOLT,6X14
09116-06098
Superseded by 09116-06098-XC0
|
$2.60 | ||
|
Unavailable |
|||
|
#5
MUDGUARD, LOWER
63421-16G00
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X16)
02162-06163
Superseded by 02162-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09169-06071
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TOOL ASSY
09800-21035
|
$117.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, WRENCH
09822-00004
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING(D:3.5,ID
09280-61002
Superseded by 09280-61004
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
