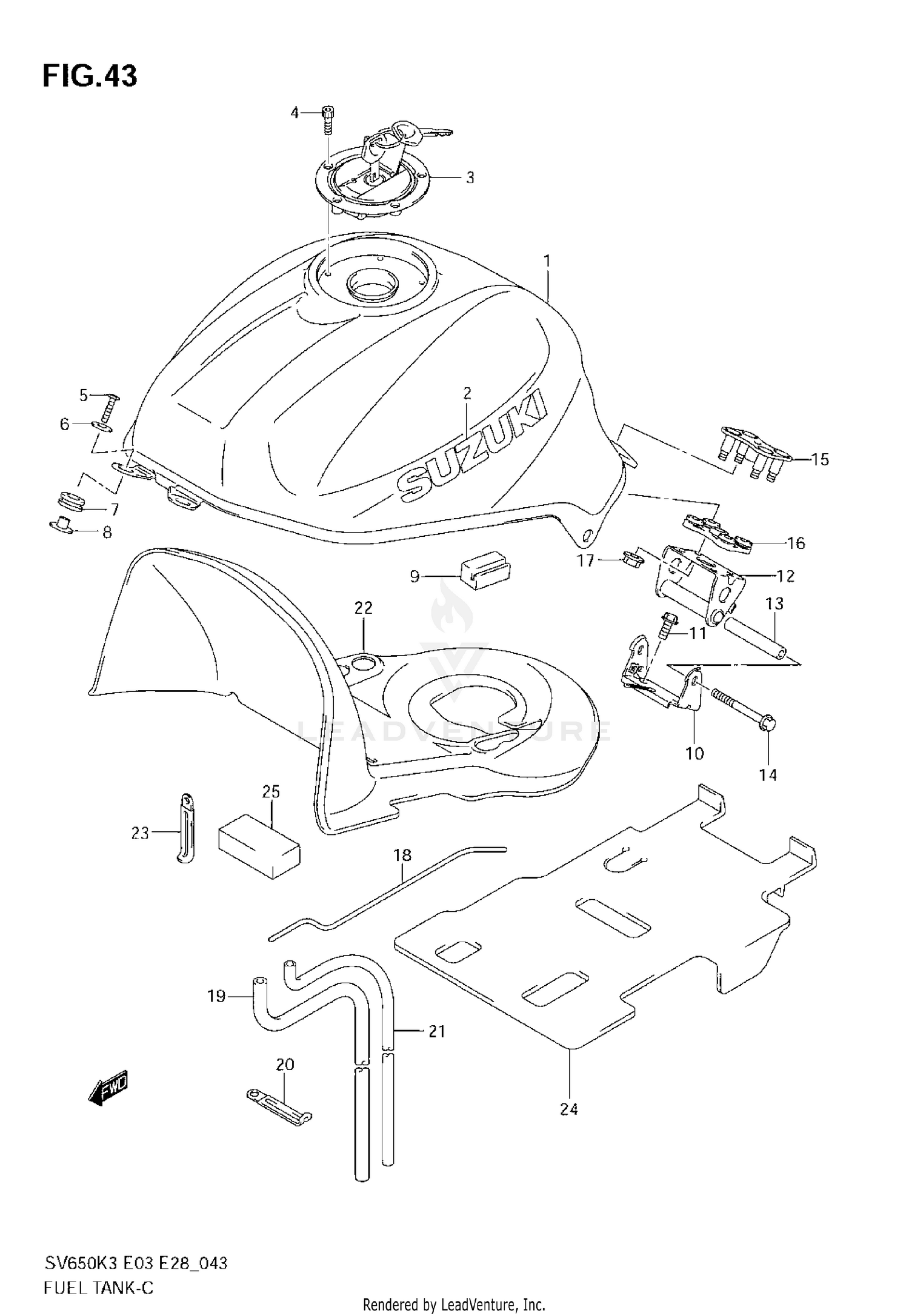

Fuel Tank (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (SILVER)
44100-16G00-YD8
Superseded by 44100-16G01-YD8
|
$1,319.16 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-16G00-33J
|
|||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-16G00-YC2
Superseded by 44100-16G01-YC2
|
$1,292.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-16G00-YAV
Superseded by 44110-16G03-13L
|
$1,203.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-16G20-YD8
Superseded by 44100-16G22-YD8
|
$1,052.03 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-16G20-33J
|
|||
|
Unavailable |
|||
|
#1
TANK ASSY,FUEL(
44100-16G20-YC2
Superseded by 44100-16G22-YC2
|
$1,437.47 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-16G20-YAV
Superseded by 44110-16G23-13L
|
$1,009.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM (GRAY)
68111-47C10-YU8
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,SUZUKI (SILVER)
68111-47C10-YD8
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$146.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16860
Superseded by 44200-16862
|
$259.85 | ||
|
Unavailable |
|||
|
#4
BOLT (5X20)
09106-05017
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FRONT
09139-06029
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06054
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,FUEL TANK,FR
44512-16G00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, SIDE
44541-16G00
|
$9.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET COMP,FU
44550-16G00
Superseded by 44550-16G01
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CENTER
44530-16G00
|
$43.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, JOINT
44561-35F00
|
$17.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, JOINT
09103-06060
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET,FUEL TANK REAR UP
44570-16G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
44542-16G00
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08319-31063
Superseded by 08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FUEL TANK
44574-35F00
|
$18.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,WATER DRAI
44423-17G00
Superseded by 44423-17G01
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,FUEL TANK
44424-16G00
Superseded by 44424-18G01
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD, TANK HEAT
44191-16G00
|
$197.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Unavailable |
|||
|
#24
SHEET, HEAT RUBBER
44271-16G00
|
$43.20 | ||
|
Unavailable |
|||
|
#25
CUSHION, TANK
44545-16G00
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
