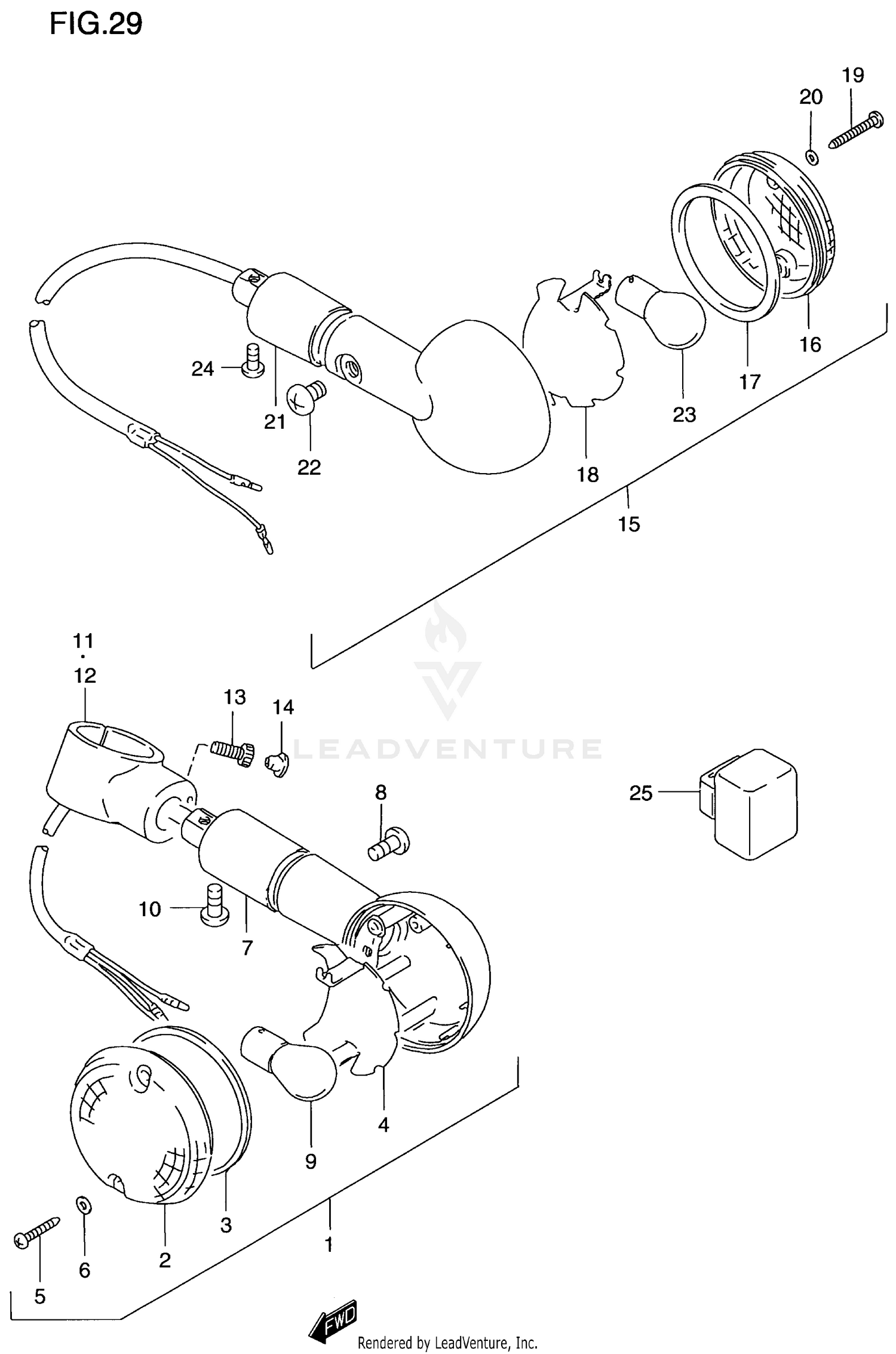

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FR TURN SIGNAL,L
35601-38A32-999
|
$135.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35612-38A30
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-38A00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR
35624-39A00
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03211-04253
Superseded by 03211-0425B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, TURNSIGNAL LAMP
35619-38A01
|
$45.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
35623-38A01
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V,21/5W)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-06107
|
|||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, RH
35671-39A00
|
$53.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, LH
35681-39A00
|
$89.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-06167
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP
09250-05008
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
LAMP ASSY, RR TURN SIGNAL,L
35603-38A02-999
|
$104.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
LENS
35612-38A01
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
35613-38A00
|
$10.99 | ||
|
Unavailable |
|||
|
#18
REFLECTOR
35624-39A00
|
$29.65 | ||
|
Unavailable |
|||
|
#19
SCREW
03211-04253
Superseded by 03211-0425B
|
$2.95 | ||
|
Unavailable |
|||
|
#20
GASKET
35627-43010
|
$2.68 | ||
|
Unavailable |
|||
|
#21
STAY, TURNSIGNAL LAMP
35619-38A01
|
$45.50 | ||
|
Unavailable |
|||
|
#22
SCREW
35623-38A01
|
$6.70 | ||
|
Unavailable |
|||
|
#23
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02142-06107
|
|||
|
Unavailable |
|||
|
#25
RELAY ASSY
38610-26E00
Superseded by 38610-26E01
|
$66.56 | ||
|
Available to order. Add to View Price |
|||
