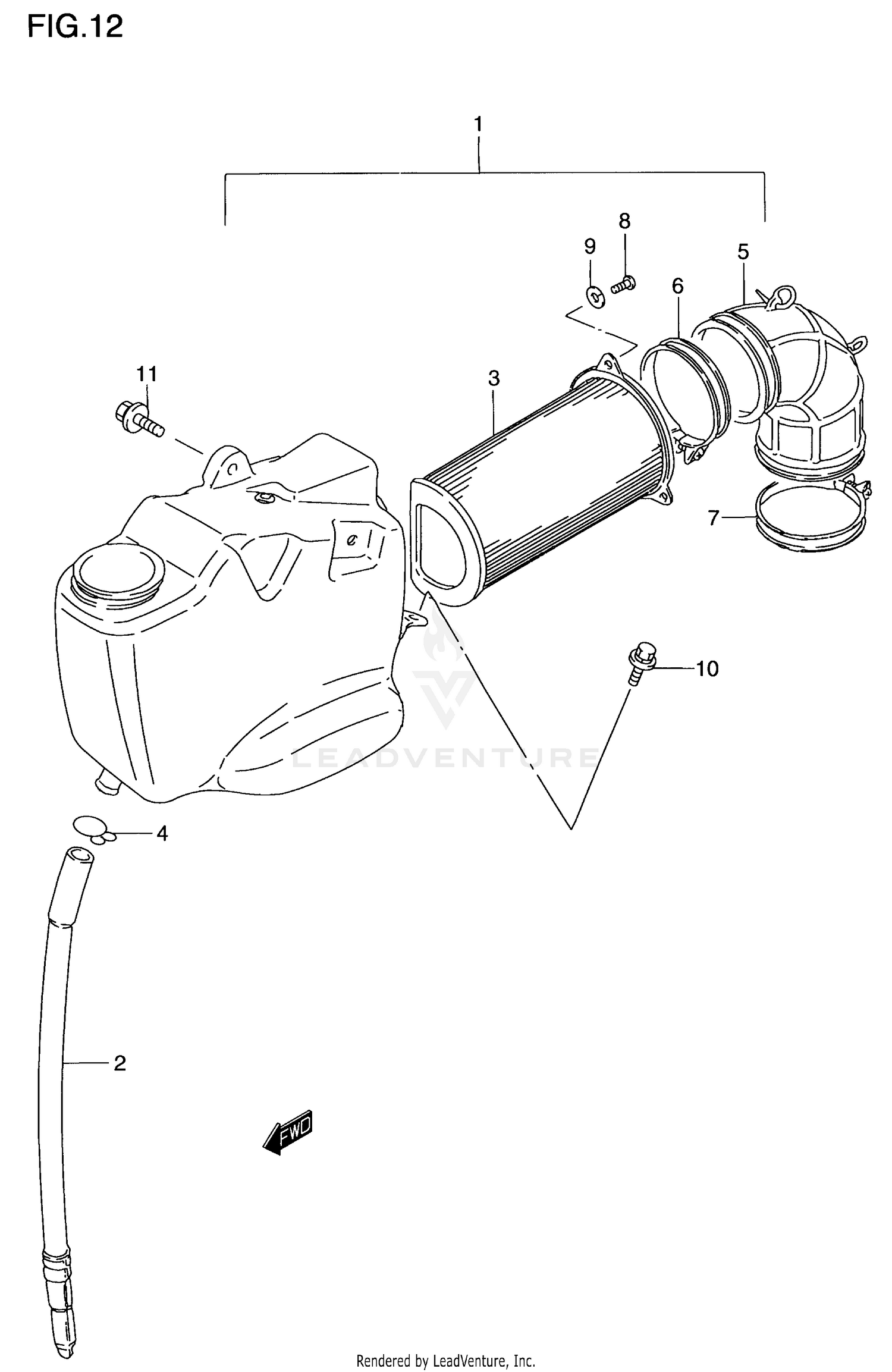

Air Cleaner (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR FRONT
13700-38A01
|
$244.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE,DRAIN
13870-11458
Superseded by 13870-11459
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER ASSY
13780-38A01
|
$41.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP (ID:13.5)
09401-13409
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, OUTLET
13881-38A00
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09402-56208
Superseded by 09402-56901
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CLAMP
09402-58208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-01043
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, REAR
01580-06203
Superseded by 01580-0620B
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
