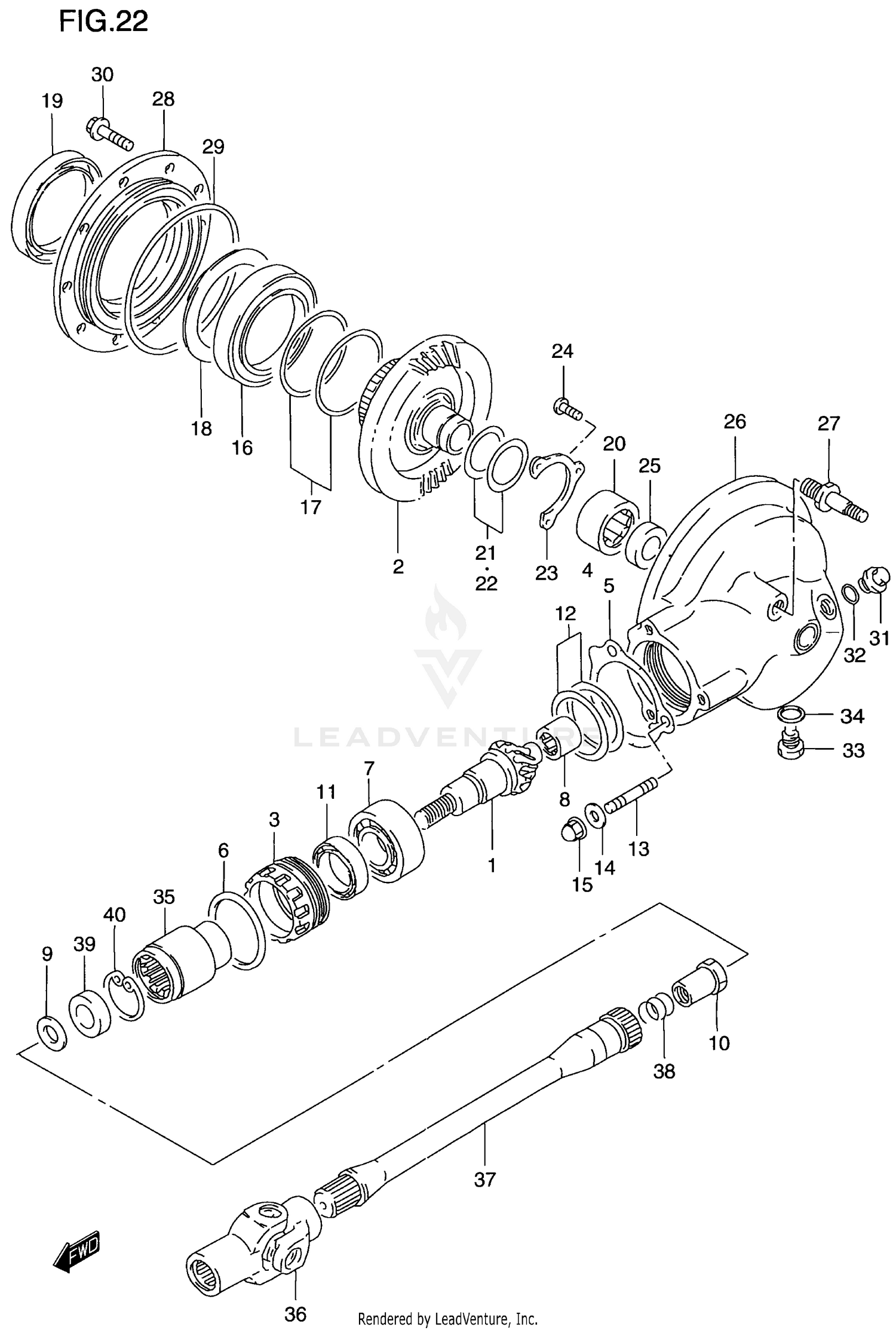

Propeller Shaft - Final Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEAR & CASE SET, FINAL BEVEL
27300-38835
Superseded by 27300-38836
|
$1,059.44 | ||
|
Unavailable |
|||
|
#1
GEAR, DRIVE BEVEL (NT:11)
27311-38A00
|
$331.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, DRIVEN BEVEL (NT:34)
27320-45C01
|
$515.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, BEARING
27312-38A00
|
$82.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE
27313-38A00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE
27313-38A10
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING (D:1.9,ID:61.6)
09280-62002
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING (30X62X23.8)
09267-30005
|
$129.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (17X32X16)
09263-17028
|
$53.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (16X29X4)
09160-16029
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-16010
|
$12.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (38X54X6)
09283-38009
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SHIM SET, FINAL
27445-38810
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD BOLT
09108-10095
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
09164-10008
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09159-10026
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RH (70X110X13)
09262-70001
|
$153.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM SET, DRIVE GEAR BEARING
27327-34810
|
$43.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE
27328-34200
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
.OIL SEAL (70X96X16)
09289-70001
|
$64.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, LH (32X46X17.7)
09263-32007
|
$88.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM SET, FINAL DRIVE GEAR
27326-34820
|
$22.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM SET, FINAL DRIVE GEAR
27326-34810
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINER, BEARING
27329-34200
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02112-06123
Superseded by 02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
.OIL SEAL (30X42X7)
09283-30028
|
$12.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE, FINAL GEAR
27450-38A12
|
$865.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
STUD BOLT
27481-38A01
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
CASE, FINAL GEAR BEARING
27460-07A01
|
$187.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
.O RING (D:3.5,ID:131.6)
09280-00015
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
.BOLT
01550-08253
Superseded by 01550-0825A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG, OIL FILLER
09247-18001
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (D:2.4,ID:17.8)
09280-18004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#34
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#35
COUPLING, PROPELLER SHAFT
27172-38A00
|
$68.47 | ||
|
Available to order. Add to View Price |
|||
|
#36
YOKE, UNIVERSAL JOINT
27100-38A50
Superseded by 27100-38A60
|
$387.43 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, PROPELLER
27151-38A01
|
$225.61 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
09440-18019
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (28.4X48X15)
09283-30051
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP
09381-40003
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
