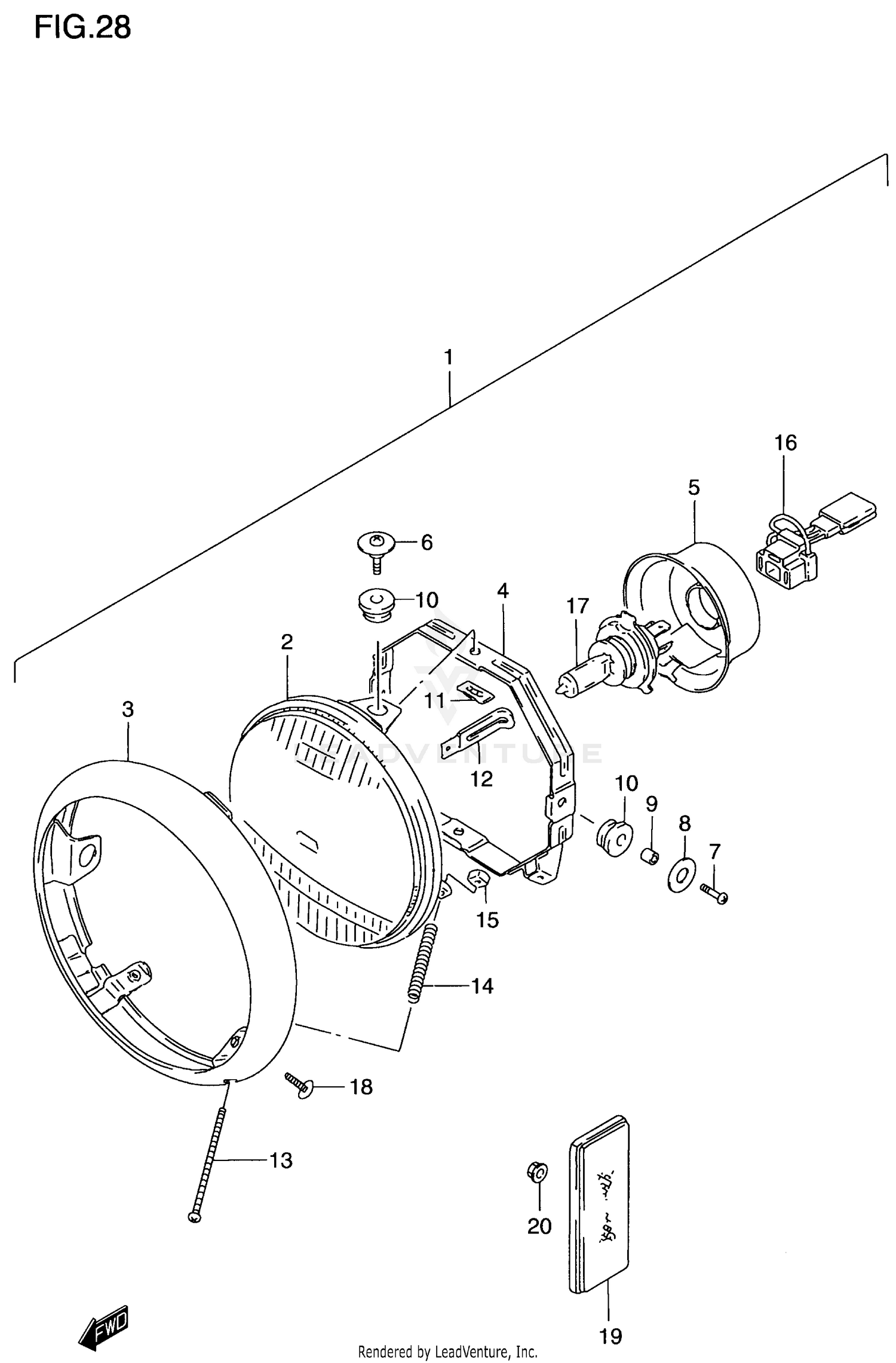

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-38A30-999
Superseded by 35100-38A62-999
|
$308.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, LAMP
35121-38A30
|
$98.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM
35111-38A00
|
$52.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, MOUNTING
35130-38A00
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
35173-38A00
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,MOUNTING
35136-38A00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
09125-05102
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
.WASHER (5.5X18X1)
09160-05003
Superseded by 09160-05045
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SPACER
35133-45230
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
35139-45230
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
35155-48510
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:60)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#13
SCREW, ADJUST
35151-38A00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
35154-31300
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
35135-45600
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
SOCKET
36853-38A00
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW
02142-05127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
REFLEX REFLECTOR, FRONT SIDE
35950-43431
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
