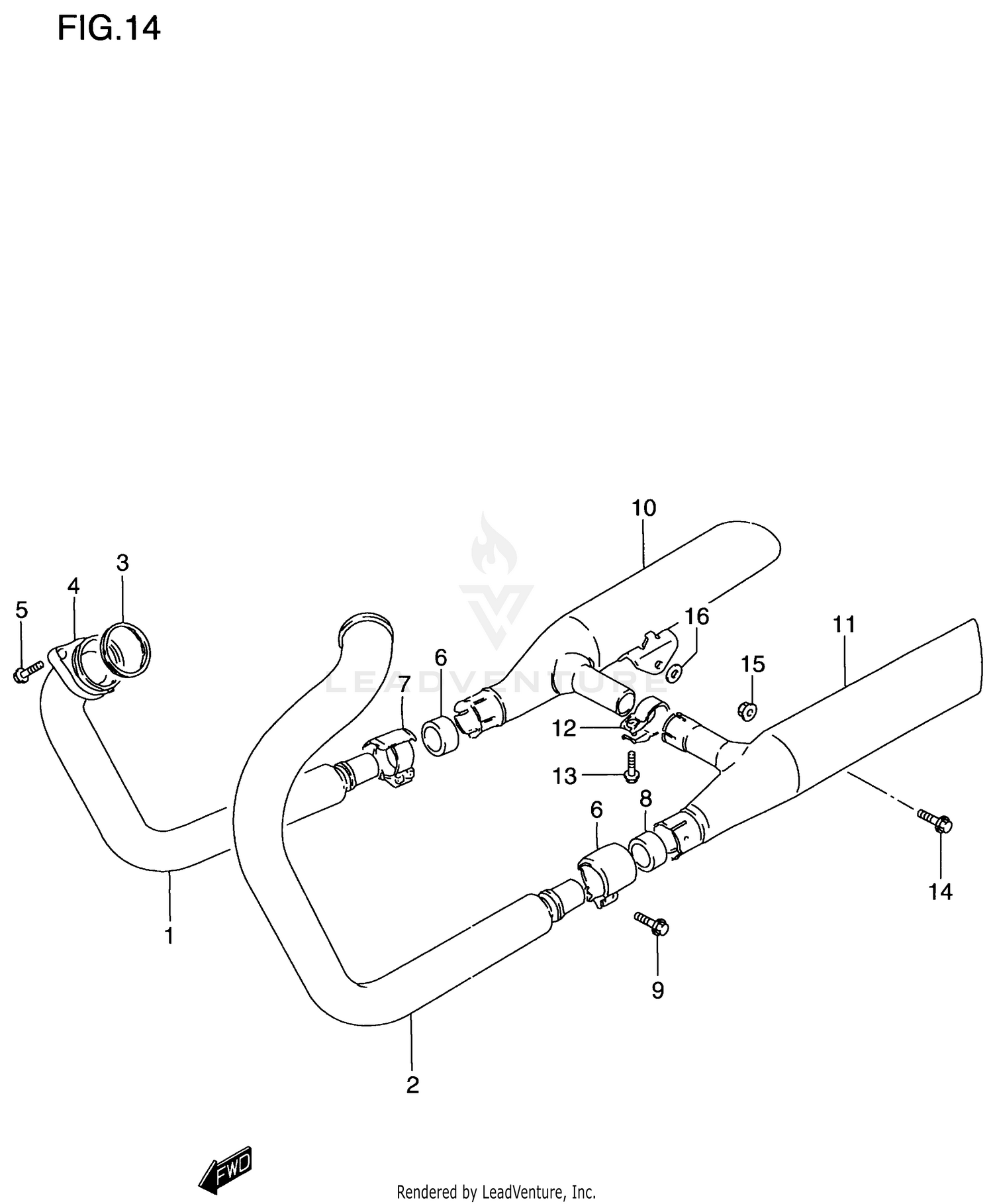

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST RH
14150-38A01
|
$341.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, EXHAUST LH
14160-38A02
|
$354.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EXHAUST PIPE
14181-45C00
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, EXHAUST PIPE
14182-38A02
|
$47.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X35)
09104-08026
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR, MUFFLER
14771-30E00
|
$35.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, MUFFLER CONNECTOR RH
14459-38A00
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MUFFLER CONNECTOR LH
14469-38A00
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
MUFFLER, RH
14310-38A72-H01
|
$419.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUFFLER, LH
14340-38A72-H01
|
$419.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, EXHAUST COUPLER
14772-38B00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-08307
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (8.5X18X3.2)
09160-08122
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
