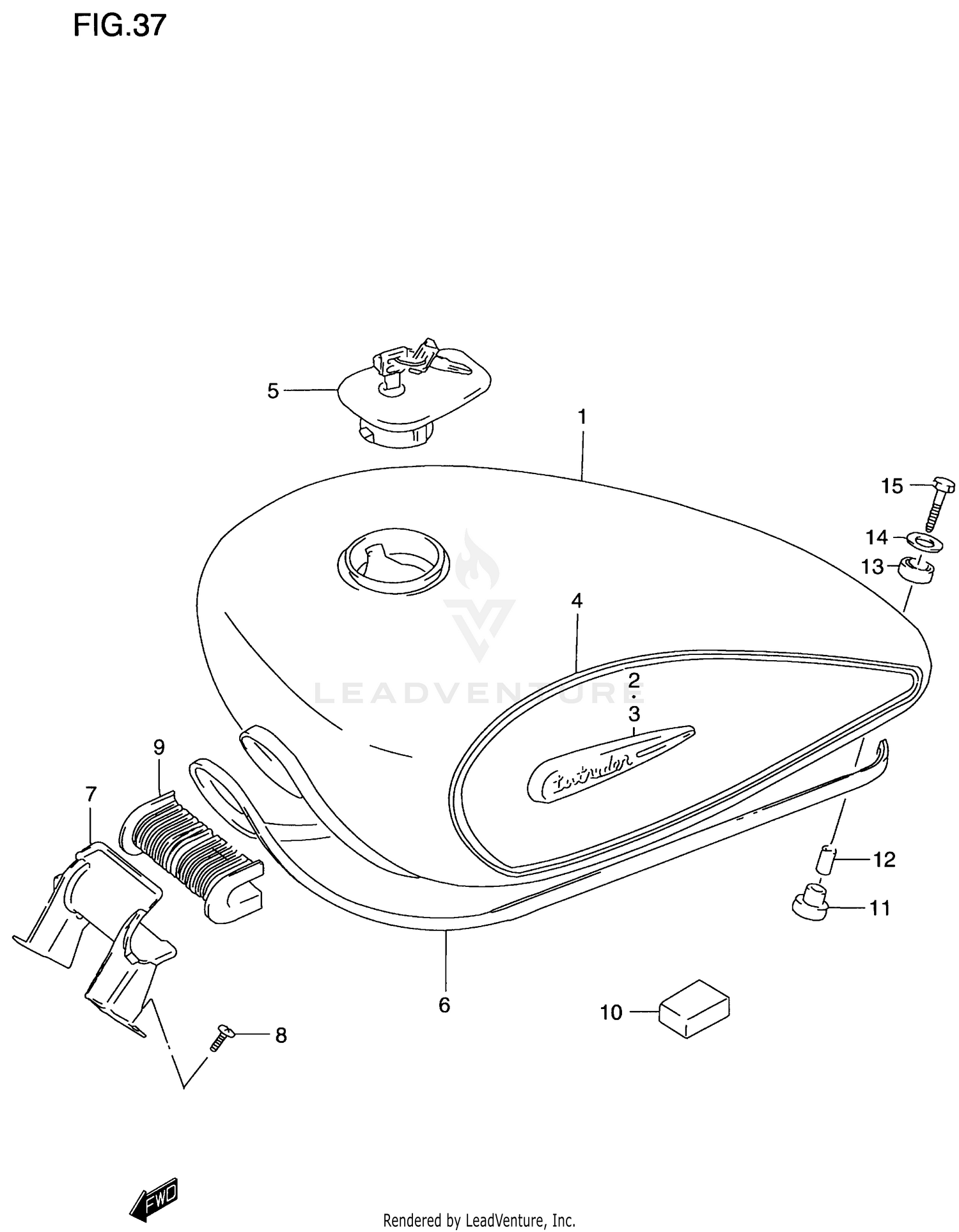

Fuel Tank (model W) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-38E30-19A
Superseded by 44100-38E40-19A
|
$726.37 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-38E30-Y98
Superseded by 44100-38E40-Y98
|
$726.37 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-38E50-19A
Superseded by 44110-38A12-YD8
|
$637.73 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-38E50-Y98
Superseded by 44100-38E51-Y98
|
$527.89 | ||
|
Unavailable |
|||
|
#2
EMBLEM, RH
68111-38E00
|
$53.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM, LH
68121-38E00
|
$52.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPE SET, FUEL TANK
68110-38E00-J7H
|
$86.08 | ||
|
Unavailable |
|||
|
#4
TAPE SET, FUEL TANK
68110-38E00-J7K
|
$86.08 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38820
|
$121.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP SET,FUEL TA
44200-38850
Superseded by 44200-38852
|
$123.78 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38860
|
$128.40 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38870
|
$59.95 | ||
|
Unavailable |
|||
|
#6
MOLDING (L:300)
68241-04X50-00B
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FRONT (BLACK)
44250-38A01-019
|
$58.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-76163
Superseded by 02112-7616A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FRONT
44511-38A01
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, SIDE
44512-38B00
Superseded by 56314-48B10
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-06273
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, REAR UPPER
09320-14013
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, 6.5X24X1.6
09160-06072
Superseded by 09160-06501
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09128-06055
Superseded by 01500-0635A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
