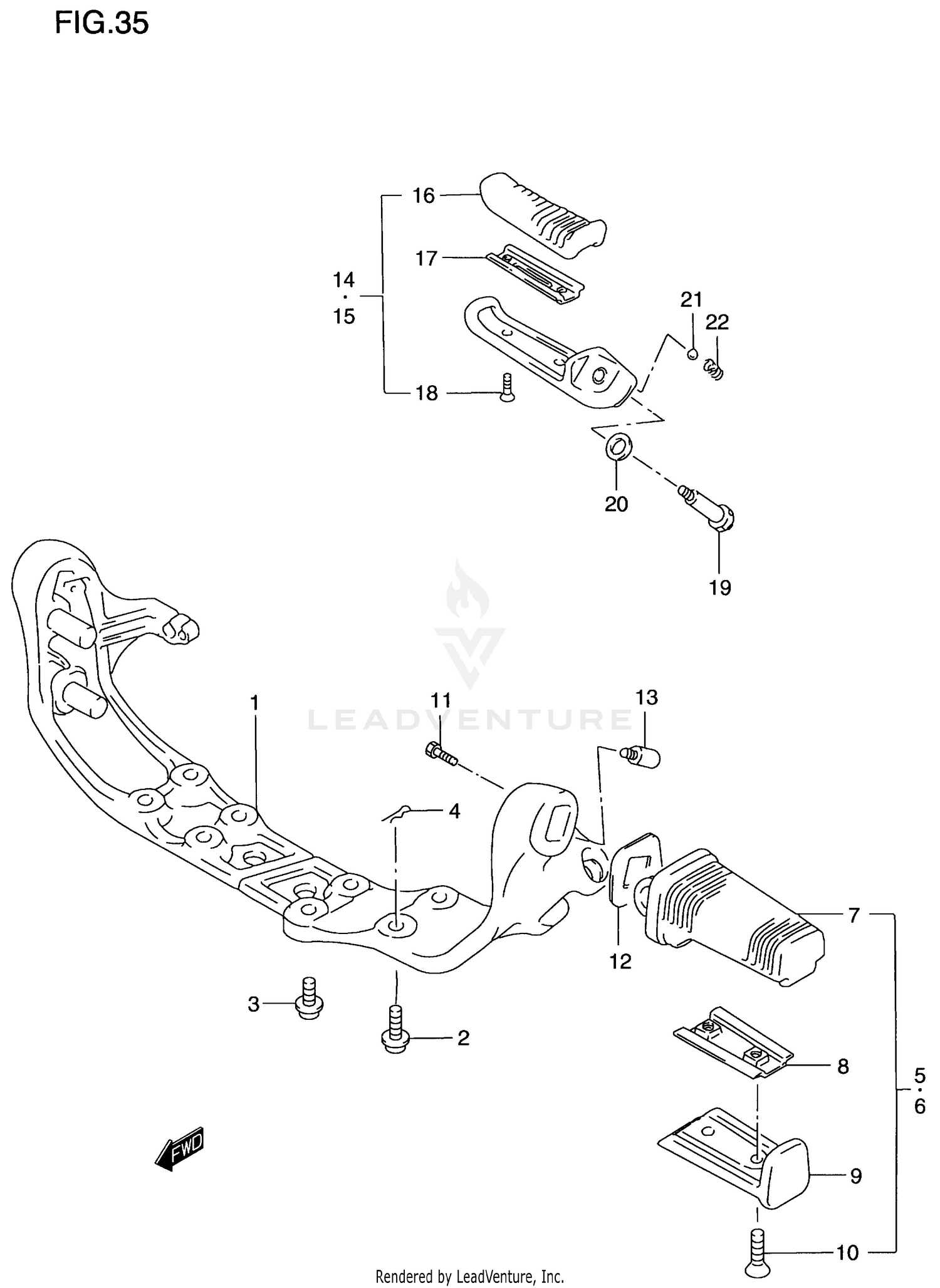

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST
43510-38E01
|
$602.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, OUTER
09106-08064
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07120-08203
Superseded by 07120-0820A
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09385-08005
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST ASSY, FRONT RH
43501-38B11
|
$169.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST ASSY, FRONT LH
43502-38B11
|
$141.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER,FR FOOTR
43551-38B00
Superseded by 43551-38B01
|
$14.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FOOTREST
43580-38B10
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
43585-38B11
|
$91.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
09127-05018
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-35123
Superseded by 02112-3512A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, FRONT FOOTREST
43546-38B01
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
43641-38B00
Superseded by 09106-06101
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST ASSY, PILLION RH
43600-38A01
|
$58.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST ASSY,P
43600-38E00
Superseded by 43600-38E01
|
$84.86 | ||
|
Unavailable |
|||
|
#15
FOOTREST ASSY,P
43700-38A01
Superseded by 43700-38A02
|
$48.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOTREST ASSY,P
43700-38E00
Superseded by 43700-38E01
|
$73.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER,PILLION
43612-38A00
Superseded by 43612-38A10
|
$9.68 | ||
|
Unavailable |
|||
|
#17
PLATE, RUBBER STOPPER
43632-38A00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
09127-05017
|
$3.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT
09111-06050
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM
08221-08164
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09440-05031
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
