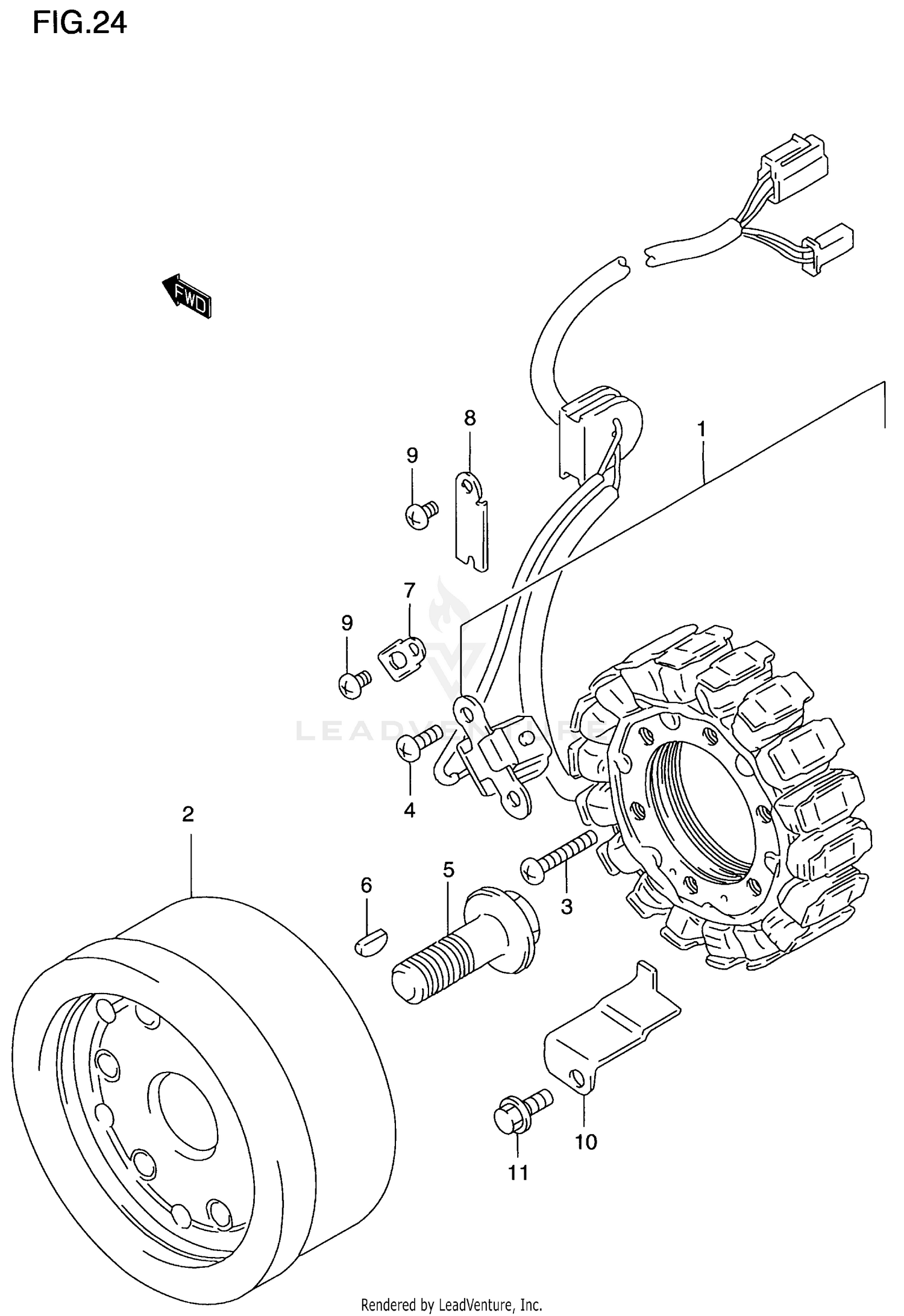

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR
32101-45C00
|
$568.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR
32102-38A30
|
$384.28 | ||
|
Unavailable |
|||
|
#3
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW, THROTTLE
02112-05103
Superseded by 02112-0510A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (14X43)
09103-14001
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY
09420-04008
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
31497-45000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
32371-38A10
|
$1.20 | ||
|
Unavailable |
|||
|
#9
SCREW, THROTTLE
02112-05103
Superseded by 02112-0510A
|
$1.78 | ||
|
Unavailable |
|||
|
#10
CLAMP
32371-45C00
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-06103
Superseded by 01547-0610B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
