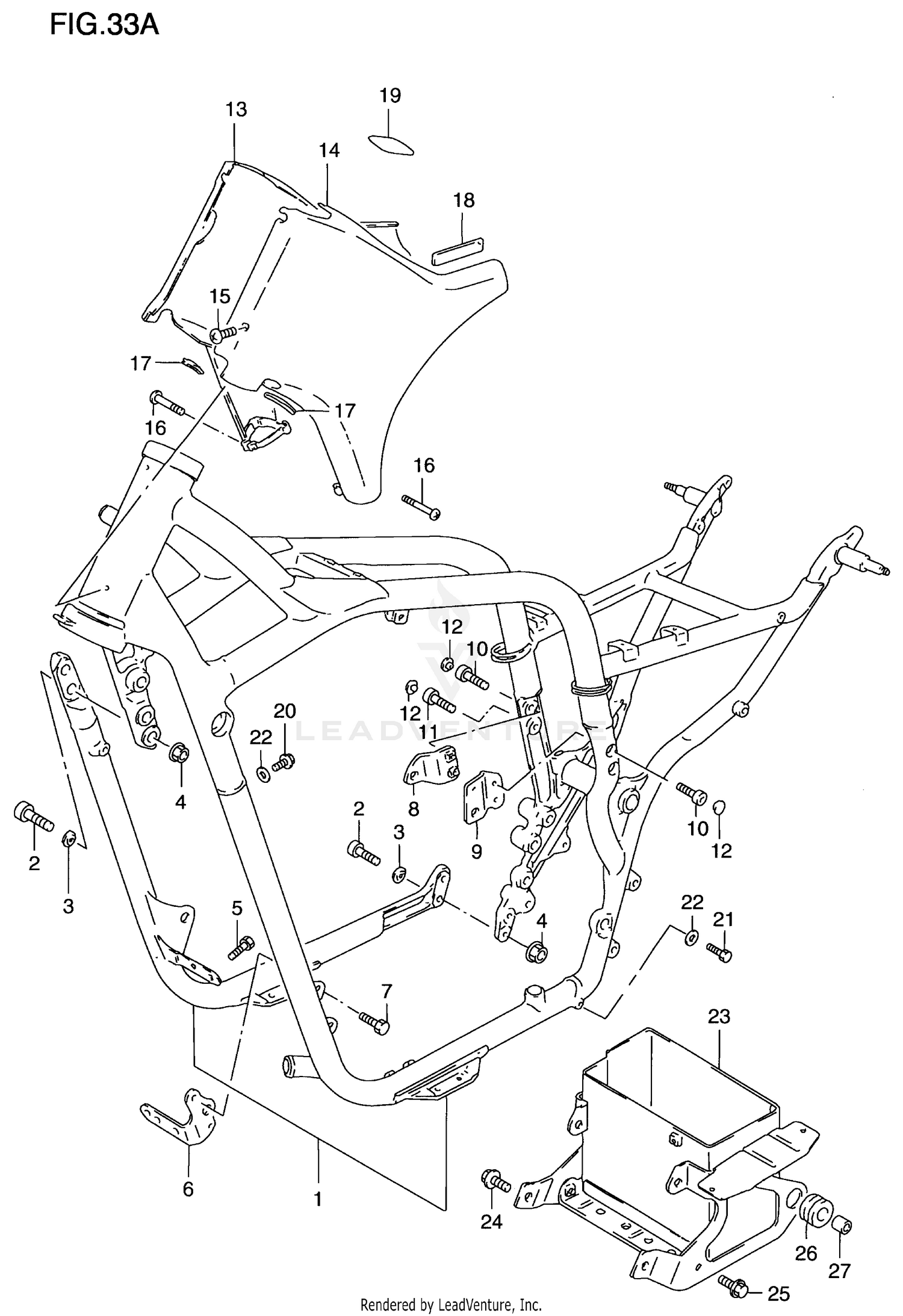

Frame (model Y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SET (BLACK)
41101-39813-33J
|
$1,722.15 | ||
|
Unavailable |
|||
|
#1
FRAME SET (RED)
41101-39813-19A
|
$1,755.27 | ||
|
Unavailable |
|||
|
#2
BOLT, REAR
09106-10019
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
09164-10010
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-31103
Superseded by 08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01551-08203
Superseded by 01551-0820A
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, NO.1 LH (BLACK)
41920-38A00-019
|
$9.12 | ||
|
Unavailable |
|||
|
#7
BOLT
01570-08163
Superseded by 01570-0816A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, NO.1 LH (BLACK)
41950-38A11-019
|
$30.74 | ||
|
Unavailable |
|||
|
#9
PLATE, NO.3 LH (BLACK)
41960-38A10-019
|
$21.23 | ||
|
Unavailable |
|||
|
#10
BOLT, UPPER
09106-08070
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STEERING DAMPER
07130-08303
Superseded by 07130-0830A
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
09250-06004
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER, FRAME HEAD RH (BLACK)
47350-38A01-33J
|
$172.21 | ||
|
Unavailable |
|||
|
#13
COVER,FRAME HEA
47350-38A01-19A
Superseded by 47350-38A01-13L
|
$387.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, FRAME HEAD LH (BLACK)
47360-38A01-33J
|
$164.01 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME HEAD LH (RED)
47360-38A01-19A
|
$238.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, CL RLSE CAM SHAFT
02142-06103
Superseded by 02142-0610A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-04253
Superseded by 02112-0425B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
MOLDING (L:300)
68241-38A10
Superseded by 68241-04X50-300
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION, FRAME HEAD COVER
33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
TAPE, FRAME HEAD COVER
47358-38A00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNION
09360-06015
Superseded by 09360-06015-XC0
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BATTERY
41540-38A12
|
$144.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01551-10163
Superseded by 01551-1016A
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION
09320-12031
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SPACER
09301-08009
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
