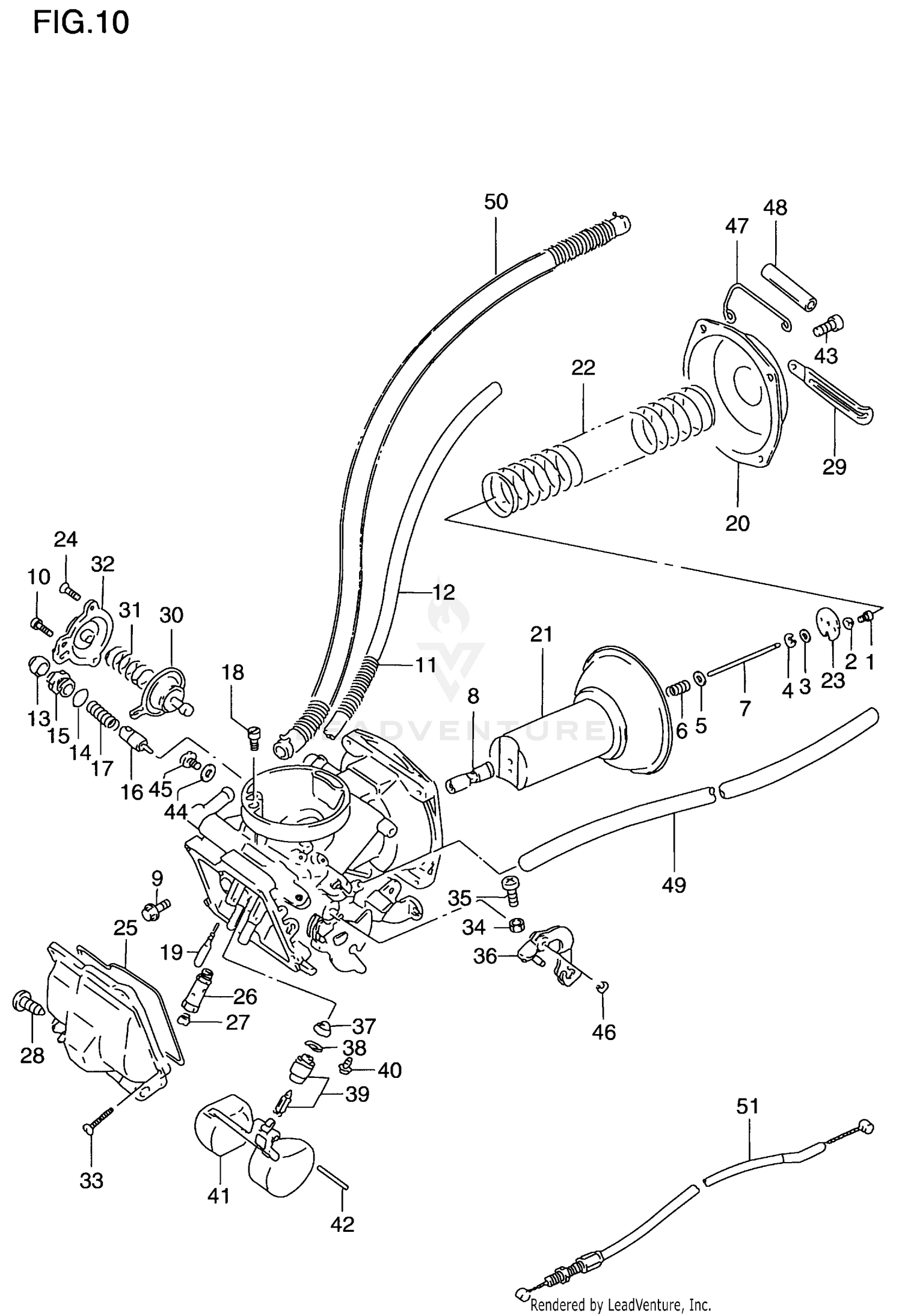

Carburetor (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY, FRONT
13210-38E10
Superseded by 13210-38E11
|
$1,104.79 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY, FRONT
13210-38E50
Superseded by 13210-38E51
|
$569.17 | ||
|
Unavailable |
|||
|
#1
SCREW
02112-03063
Superseded by 02112-0306B
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCK WASHER
08321-21033
Superseded by 08321-2103B
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
13387-47010
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
E RING
13394-10010
|
$6.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER
13382-44030
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING
13388-44030
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE, JET (5D47-1)
13383-45C20
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
JET, NEEDLE (P-2M)
09494-00892
|
$58.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
13605-38B00
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-04103
Superseded by 02112-0410A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
13689-38A00
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, GUIDE
13418-38A00
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUNGER ASSY
13411-01400
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
13417-08210
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, PILOT AIR (65)
09492-65005
|
$12.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
JET, PILOT (40)
09492-40021
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER
13502-45C10
Superseded by 13502-38A00
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIAPHRAGM ASSY
13500-05A10
Superseded by 13500-05A11
|
$150.72 | ||
|
Unavailable |
|||
|
#22
SPRING
13503-38B00
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE
13389-37400
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02122-04103
Superseded by 02122-0410A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING
13251-38A00
|
$8.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOLDER
13385-05A11
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, MAIN (127.5)
09491-25018
|
$18.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
DIAPHRAGM ASSY
13480-05A10
Superseded by 13480-05A11
|
$68.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
13481-45C10
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER
13484-38A00
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
13601-04148
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
08310-00047
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
02112-04303
Superseded by 02112-0430B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
LEVER ASSY
13554-38A00
|
$17.42 | ||
|
Unavailable |
|||
|
#37
FILTER
13376-84110
Superseded by 13376-19F00
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#38
.O RING,NEEDLE VALVE SEAT
13374-44080
Superseded by 13374-35C00
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
VALVE ASSY, NEEDLE
13370-39A00
|
$77.97 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
FLOAT
13250-38B00
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#42
.PIN,FLOAT
13254-20010
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW
02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER
13523-46110
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW
02112-05063
Superseded by 02112-0506B
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#46
.E RING
13415-38300
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP
13671-38A00
|
$4.73 | ||
|
Unavailable |
|||
|
#48
HOSE(6X10X600)
09352-60103-600
Superseded by 09352-60104-600
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE (5X8X430)
13683-38B00
Superseded by 13683-38B01
|
$39.50 | ||
|
Available to order. Add to View Price |
|||
|
#50
HOSE ASSY, FUEL
13683-38A20
Superseded by 13683-38A21
|
$81.09 | ||
|
Available to order. Add to View Price |
|||
|
#51
CABLE, ID SYNCRO
13641-38A00
Superseded by 13641-38A01
|
$24.62 | ||
|
Available to order. Add to View Price |
|||
