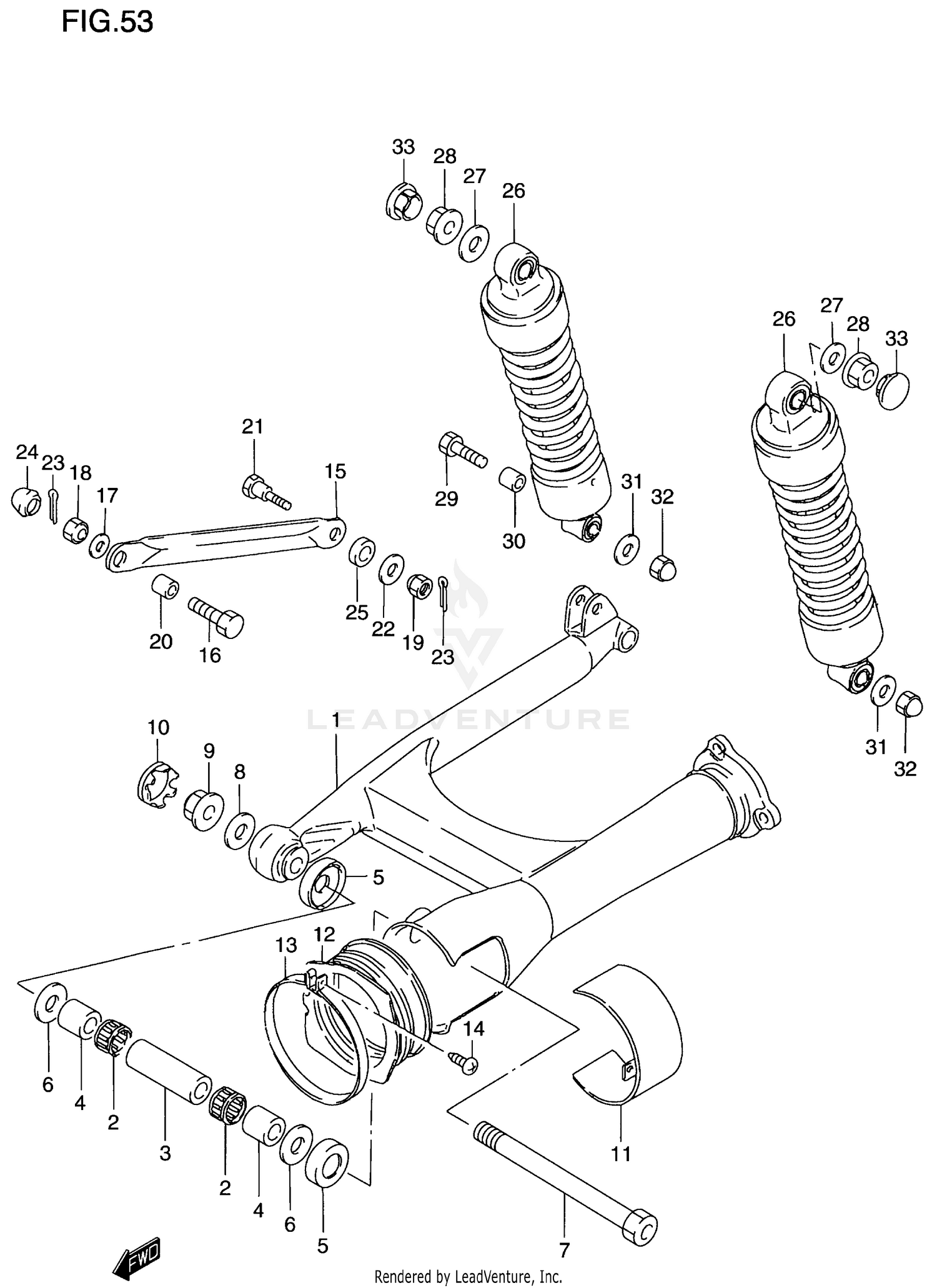

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM, REAR (GREEN)
61100-38E01-Y98
|
$391.06 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR (RED)
61100-38E01-19A
|
$370.97 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR (SILVER)
61100-38E01-Y4M
|
$379.89 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR (BLUE)
61100-38E01-Y7H
|
$417.54 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR (BLACK)
61100-38E01-33J
|
$567.36 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR (RED)
61100-38E01-19A
|
$370.97 | ||
|
Unavailable |
|||
|
#2
BEARING (22X29X20)
09263-22022
|
$29.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, CENTER
61282-38E01
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, PIVOT BEARING
61251-32410
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
61262-14A00
Superseded by 61262-14A01
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
THRUST WASHER
08211-16341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
61211-38E00
|
$48.32 | ||
|
Unavailable |
|||
|
#8
WASHER
09160-17047
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08319-21168
Superseded by 08319-2116A
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RH
61222-38A01
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, LH (GREEN)
61232-38A00-Y98
|
$22.89 | ||
|
Unavailable |
|||
|
#11
CAP, LH (RED)
61232-38A00-19A
|
$29.71 | ||
|
Unavailable |
|||
|
#11
CAP, LH (SILVER)
61232-38A00-Y4M
|
$20.29 | ||
|
Unavailable |
|||
|
#11
CAP, LH (BLUE)
61232-38A00-Y7H
|
$22.36 | ||
|
Unavailable |
|||
|
#11
CAP, LH (BLACK)
61232-38A00-33J
Superseded by 61232-38A00-YAY
|
$34.93 | ||
|
Unavailable |
|||
|
#11
CAP, LH (RED)
61232-38A00-19A
|
$29.71 | ||
|
Unavailable |
|||
|
#12
BOOT, PROPELLER SHAFT
61372-38A00
|
$31.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
09402-92306
Superseded by 09402-92306-XC0
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
03211-04253
Superseded by 03211-0425B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
TORQUE LINK, REAR (BLACK)
64310-38A13-019
|
$20.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FRONT (10X28)
09101-10037
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, REAR
09160-10085
Superseded by 09160-10142
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FRONT
09159-10059
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPACER (10.2X14X9.60)
09180-10137
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, REAR (10X41)
09111-10035
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, REAR
09160-10085
Superseded by 09160-10142
|
$2.95 | ||
|
Unavailable |
|||
|
#23
PIN
04111-16208
Superseded by 04111-1620A
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, FRONT
09251-13002
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION
09320-12501
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
ABSORBER ASSY, REAR SHOCK
62100-38A53
|
$518.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
ABSORBER ASSY, REAR SHOCK
62100-38A70
|
$315.47 | ||
|
Unavailable |
|||
|
#27
WASHER, UPPER (10.5X20X2.3)
09160-10123
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08316-10103
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, LOWER RH (10X39)
09100-10247
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPACER, LOWER RH (10.2X14X20.7)
09180-10139
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, LOWER (10.5X24X2.3)
09160-10127
Superseded by 09160-10093
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
08313-10107
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP
95672-24A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
