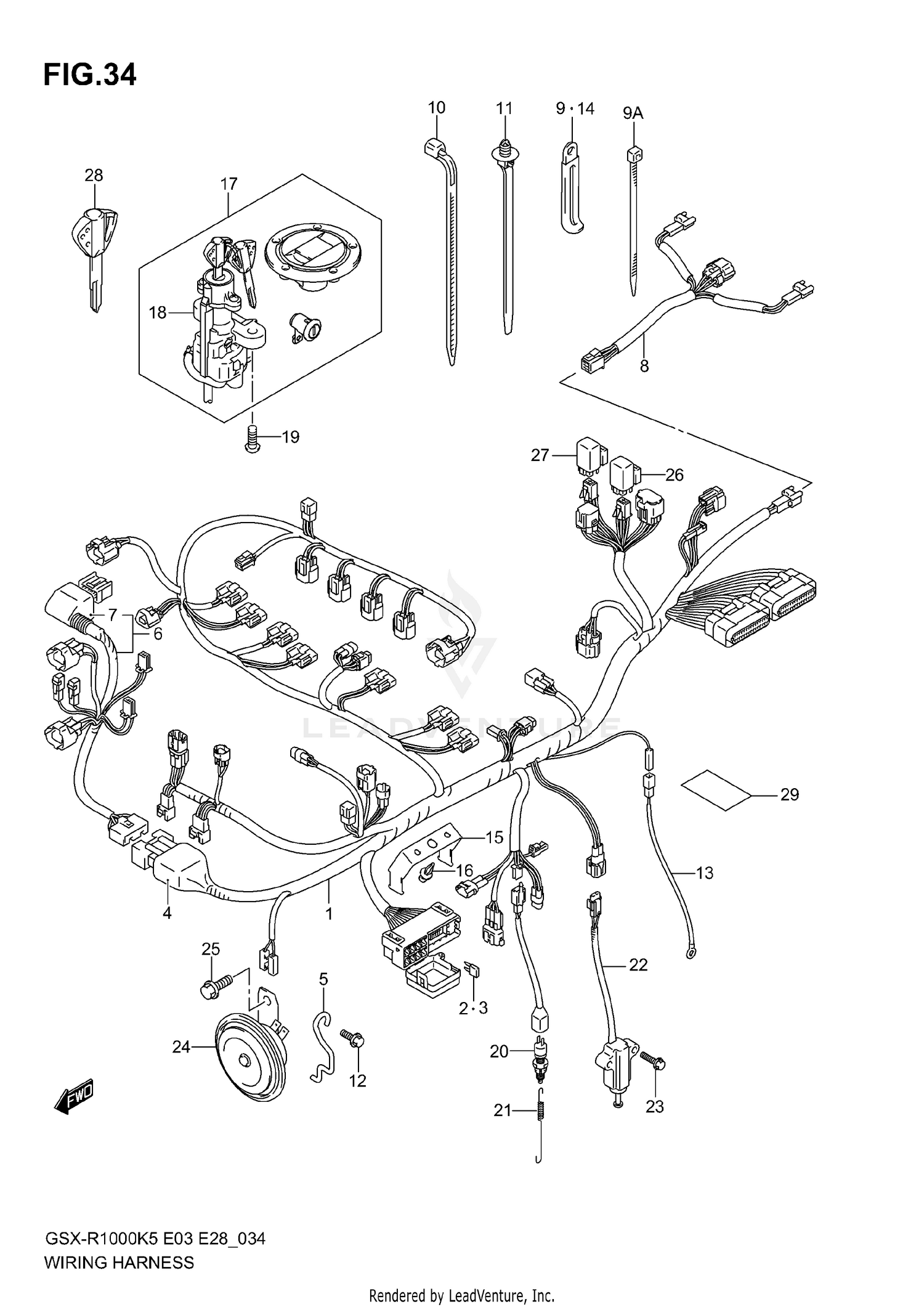

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WIRE, OIL PRESSURE SWITCH LEAD
36851-35F00
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, OIL PRESS LEAD (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#15
BRACKET, FUSE
36744-41G00
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, FUSE BRACKET (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
LOCK SET
37101-40820
Superseded by 37101-40824
|
$347.28 | ||
|
Unavailable |
|||
|
#17
LOCK SET
37101-40830
Superseded by 37101-40834
|
$514.60 | ||
|
Unavailable |
|||
|
#18
.LOCK ASSY,STEERING
37100-41G10
Superseded by 37100-41G12
|
$292.99 | ||
|
Unavailable |
|||
|
#19
SCREW, STEERING LOCK (8X20)
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY, STOP LAMP
37740-45D00
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, BRAKE LAMP SWITCH
09443-06087
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,SID
37840-35F10
Superseded by 37840-35F12
|
$97.02 | ||
|
Unavailable |
|||
|
#23
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
HORN ASSY
38501-23E10
Superseded by 38501-23E11
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (8X16)
01550-08163
Superseded by 01550-0816A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
RELAY ASSY, FUEL PUMP
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
RELAY ASSY, FAN MOTOR
38740-24X50
|
$58.35 | ||
|
Unavailable |
|||
|
#28
KEY,BLANK (IMMOBI)
37146-41G10
Superseded by 37146-41G00
|
$55.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
TAPE, FENDER
36611-16G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS, WIRING NO.1
36610-41G30
|
$1,075.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#5
GUIDE, WIRING HARNESS
36619-41G00
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
HARNESS, WIRING NO.2
36620-41G00
|
$263.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#8
WIRE, REAR COMB
36855-41G00
|
$88.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#9A
CLAMP (L:100)
09407-10404
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
