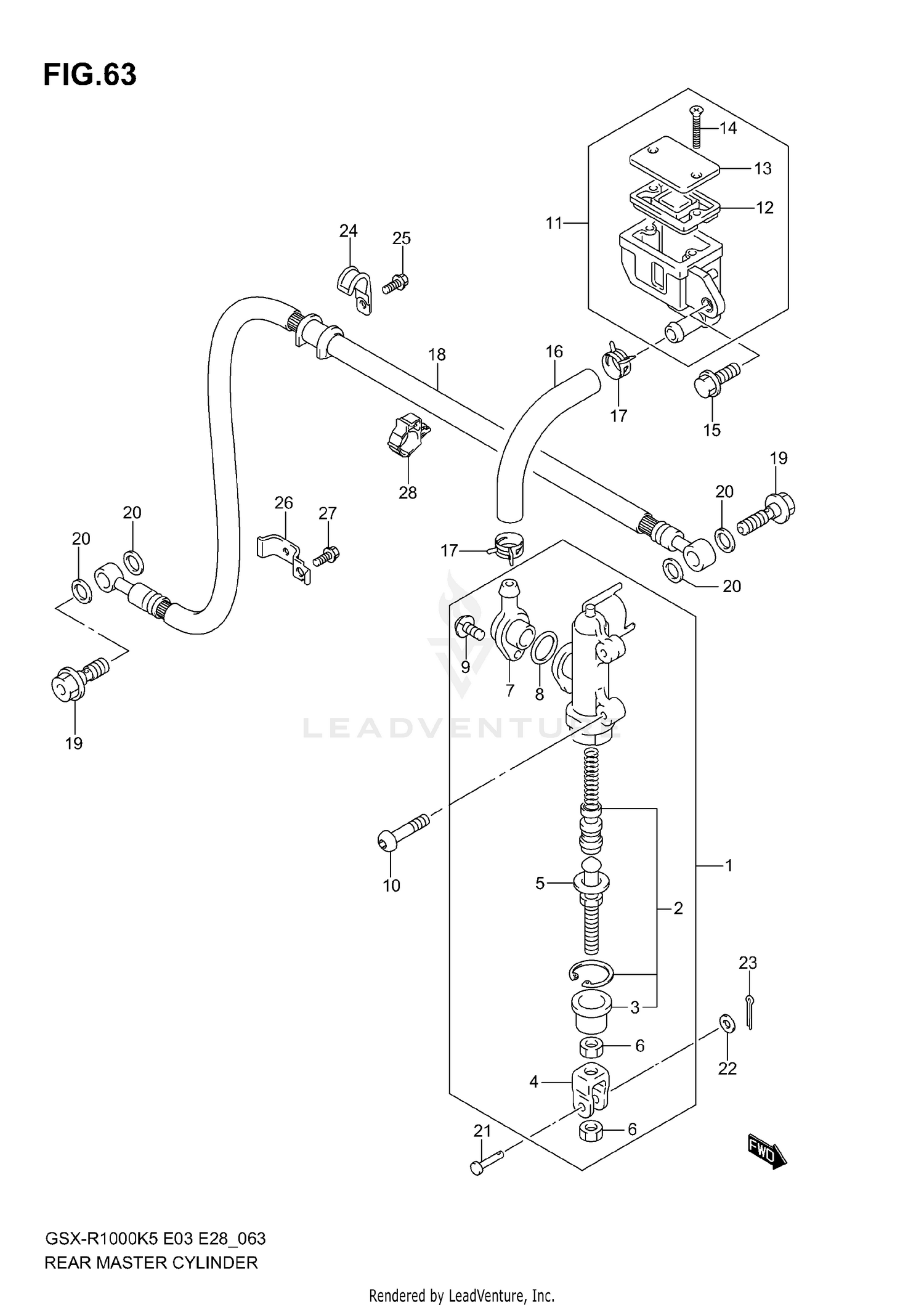

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-16G00
|
$301.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-34820
Superseded by 69600-34821
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
69670-48B00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
69693-05A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-05A00
|
$7.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.SCREW
02112-74123
Superseded by 02112-7412A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09139-06125
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY, REAR RESERVOIR
69740-41G00
|
$88.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
59667-04700
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
59669-05D00
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
69689-04A00
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X12)
09103-06273
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, RESERVOIR TANK
69731-41G00
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP (ID:12.9)
09401-13417
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RR BRAKE
69480-41G00
Superseded by 69480-41G02
|
$86.32 | ||
|
Unavailable |
|||
|
#19
UNION
09360-10042
Superseded by 09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
.WASHER
08322-01063
Superseded by 08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, RR BRAKE HOSE
69268-41G00
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GUIDE, RR BRAKE HOSE
69266-41G00
|
$7.54 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
Unavailable |
|||
|
#28
GUIDE, RR BRAKE HOSE NO.2
09403-17306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
