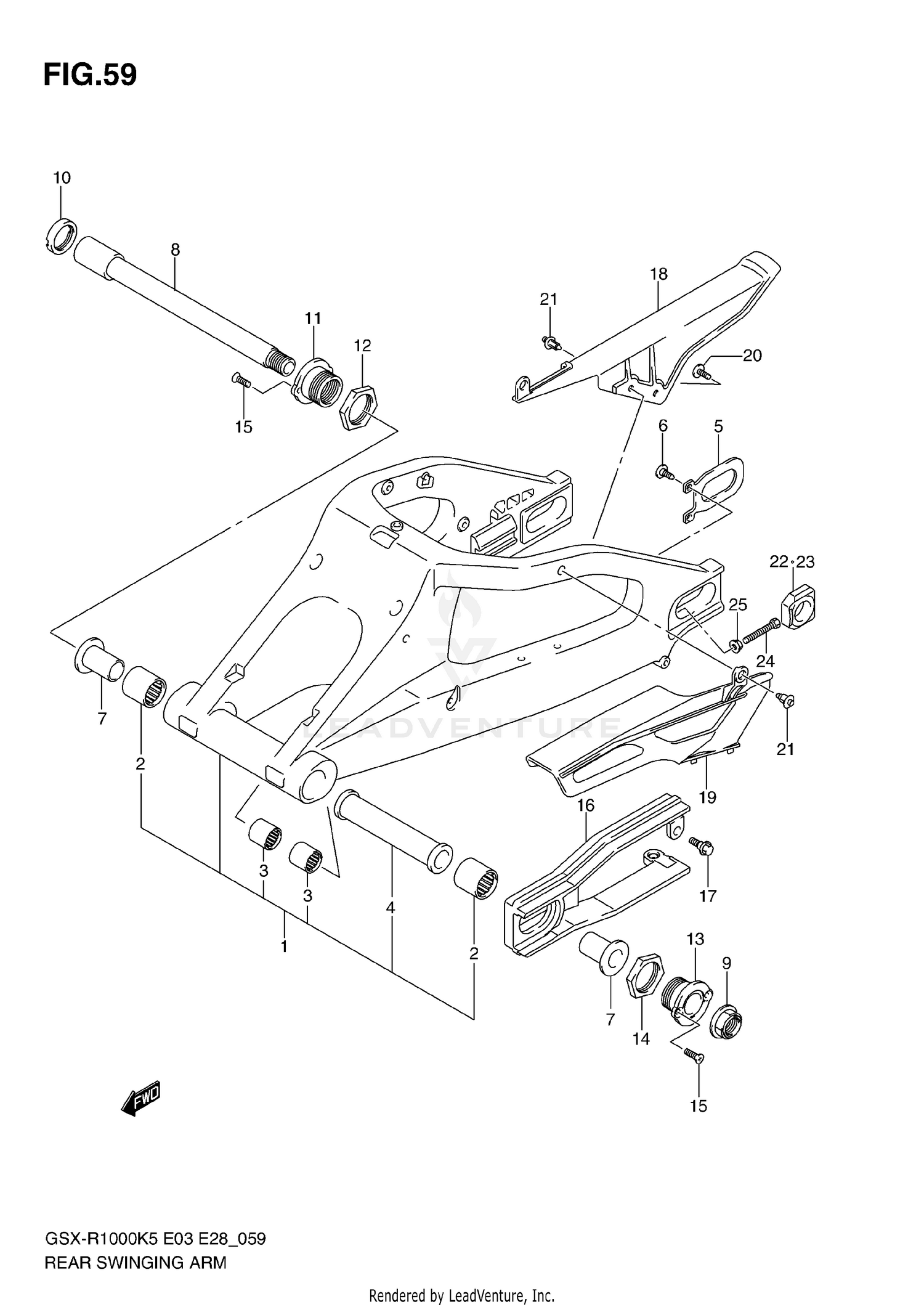

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR (BLACK)
61000-41G00-YAP
|
$2,771.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$34.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, CENTER
61281-41G00
|
$62.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, RR SWING ARM BRKT
61124-41G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
09125-06073
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
61251-41G00
|
$50.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-41G00
|
$190.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20006
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, PIVOT
61214-42E00
Superseded by 61214-42E10
|
$48.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, RR SWGARM PIVOT, R
61212-41G00
|
$97.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, RR SWGARM PIVOT, R
61210-41GR0
|
$841.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, RR SWGARM PIVOT BOSS, R
61213-41G00
|
$40.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOSS, RR SWGARM PIVOT, L
61214-41G00
|
$82.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOSS, RR SWGARM PIVOT, L
61210-41GR0
|
$841.02 | ||
|
Unavailable |
|||
|
#14
NUT, RR SWGARM PIVOT BOSS, L
61215-41G00
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02122-05123
Superseded by 02122-0512A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUFFER,CHAIN TO
61273-41G00
Superseded by 61273-41G01
|
$47.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
09111-06072
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE,CHAIN N0.1
61311-41G00
Superseded by 61311-41G01
|
$44.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
CASE, CHAIN NO.2
61321-41G00
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (6X16)
09139-06083
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
ADJUSTER,CHAIN RH
61445-40F20
Superseded by 61445-40F00
|
$60.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
ADJUSTER,CHAIN LH
61446-40F10
Superseded by 61446-40F00
|
$60.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (8X50)
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
