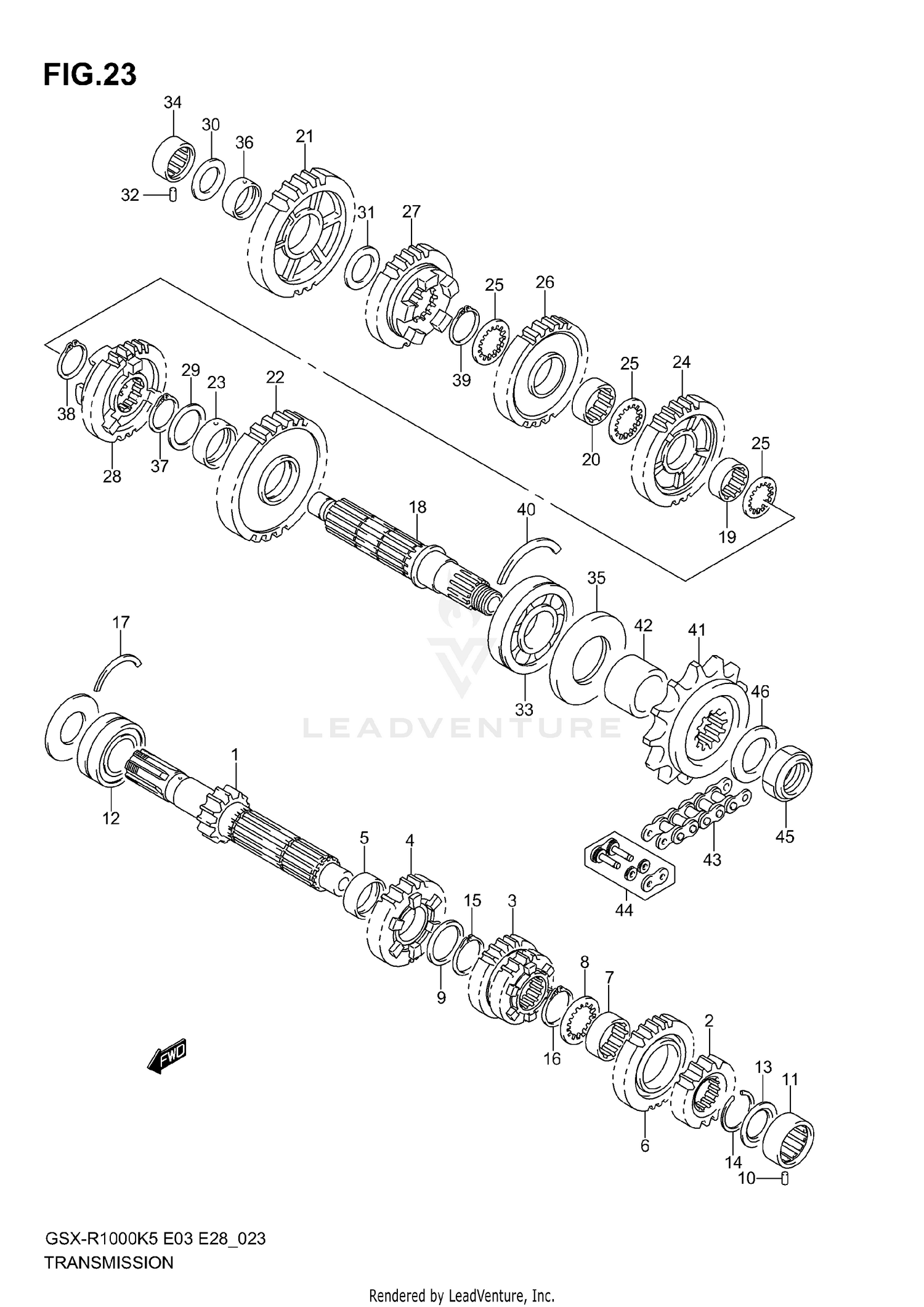

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, CNTR (NT:16)
24120-40F20
Superseded by 24120-40F21
|
$367.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-40F20
Superseded by 24221-40F30
|
$132.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-40F20
Superseded by 24231-40F40
|
$192.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:25)
24251-40F20
Superseded by 24251-40F40
|
$153.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, 5TH DRIVE GEAR
24252-35F00
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:26)
24261-40F20
Superseded by 24261-40F30
|
$153.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, 6TH DRIVE GEAR
24262-35F00
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, 5TH DRIVE GEAR
09181-27014
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COUNTER SHAFT BEAR
09261-06003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, COUNTER SHAFT
09263-20087
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CNTR SHAFT, R
09267-25013
|
$115.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT, OIL
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP, 2ND DRIVE GEAR
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, 5TH DRIVE GEAR
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP, 6TH DRIVE GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#17
C RING
09390-58001
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-40F00
|
$363.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, 3RD DRIVEN GEAR
24262-17E01
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, 4TH DRIVEN GEAR
24262-17E01
|
$43.59 | ||
|
Unavailable |
|||
|
#21
GEAR, 1ST DRIVEN (NT:41)
24311-40F20
Superseded by 24311-40F30
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND DRIVEN (NT:39)
24321-40F20
Superseded by 24321-40F50
|
$135.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH,2ND DRIVEN GEAR
24322-02F01
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR,3RD DRIVEN (NT:36)
24331-40F20
Superseded by 24331-40F30
|
$188.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, 3RD & 4TH DRIVEN GEAR
24333-02F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:36)
24341-40F20
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:34)
24351-40F20
Superseded by 24351-40F40
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 6TH DRIVEN (NT:33)
24361-40F20
Superseded by 24361-40F30
|
$160.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, 2ND DRIVEN GEAR
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, 1ST DRIVEN GEAR
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, 1ST DRIVEN GEAR
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, DRIVE SHAFT BEARING
09261-06003
|
$1.88 | ||
|
Unavailable |
|||
|
#33
BEARING, DRIVE SHAFT, L
09262-28025
|
$163.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, DRIVE SHAFT, R
09263-20087
|
$54.54 | ||
|
Unavailable |
|||
|
#35
SEAL, DRIVE SHAFT OIL
09283-36008
|
$26.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
BUSH, 1ST DRIVEN GEAR
24312-02F00
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP, 2ND DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#38
CIRCLIP, 3RD DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#39
CIRCLIP, 4TH DRIVEN GEAR
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#40
C RING (67.6X75X2)
09390-70001
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPROCKET, ENGINE (NT:17)
27510-21A31
|
$108.11 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPACER, ENGINE SPROCKET
27531-40F00
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#43
CHAIN,DRIVE (DI
27600-40F10-110
Superseded by 27600-40F21-110
|
$283.17 | ||
|
Unavailable |
|||
|
#44
JOINT SET, DRIVE CHAIN
27620-40F10
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, ENGINE SPROCKET
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, ENGINE SPROCKET
09160-25035
|
$5.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
