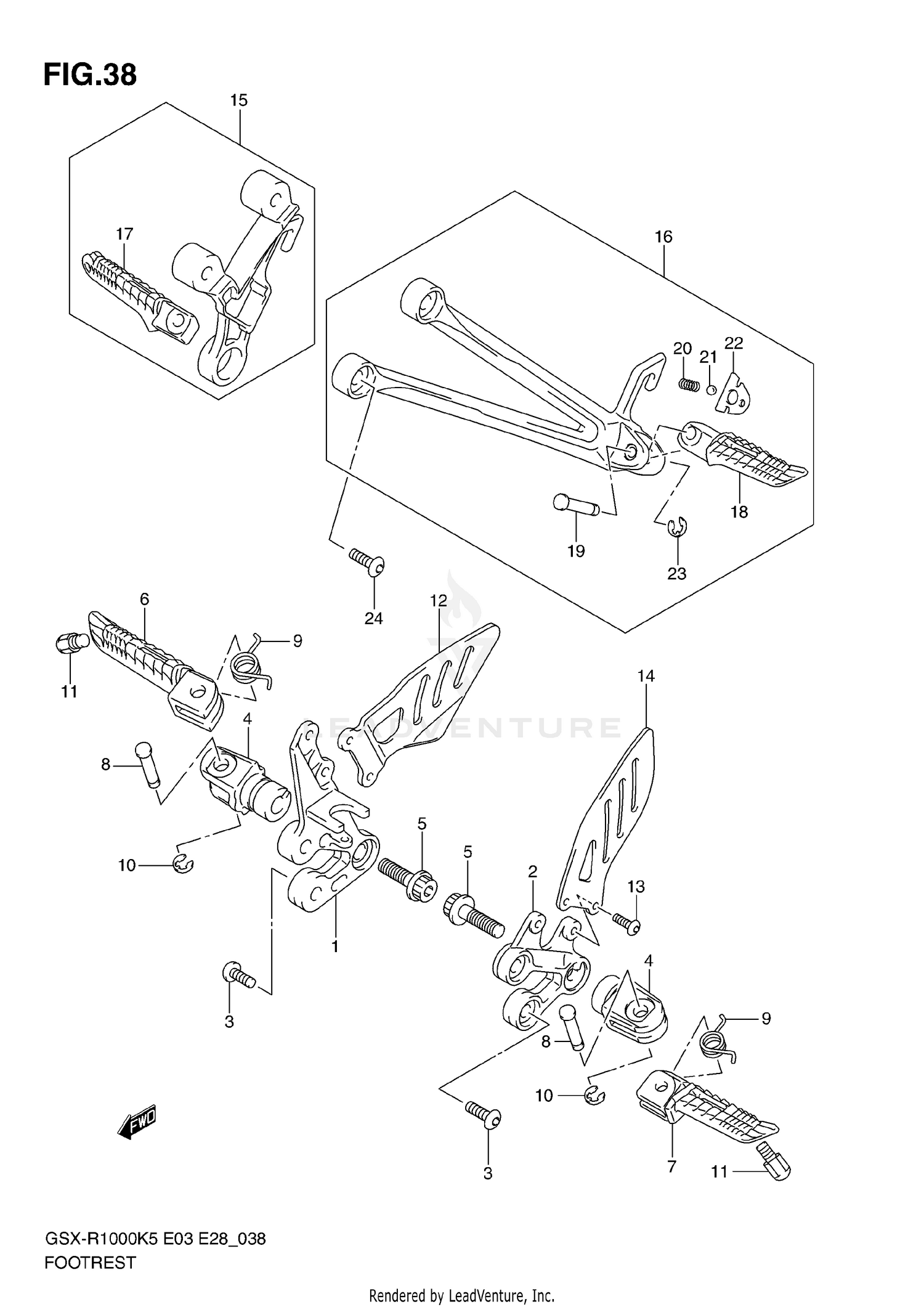

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-41G00
|
$159.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-41G00
|
$131.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
09106-08150
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, FOOTREST
43531-41G00
Superseded by 43531-41G10
|
$111.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HOLDER
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FRONT FOOTREST RH
43516-41G00
|
$129.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, FRONT FOOTREST LH
43526-41G00
|
$129.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09208-08010
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING
09448-14037
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
.BOLT,BANK SENSOR
43576-07D01
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD,FRONT FOO
43571-41G00
Superseded by 43571-41G01
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,FOOTREST GUARD LH
43577-35F00
Superseded by 43577-35F10
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD,FRONT FOO
43576-41G00
Superseded by 43576-41G01
|
$71.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOTREST ASSY, PILLION RH
43600-41G00
|
$291.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
FOOTREST ASSY, PILLION LH
43700-41G00
|
$225.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAR, PILLION RH
43611-41G00
|
$72.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR, PILLION LH
43621-41G00
|
$72.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09208-08011
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
43816-41G00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#24
BOLT, BRACKET
09106-08150
|
$4.35 | ||
|
Unavailable |
|||
