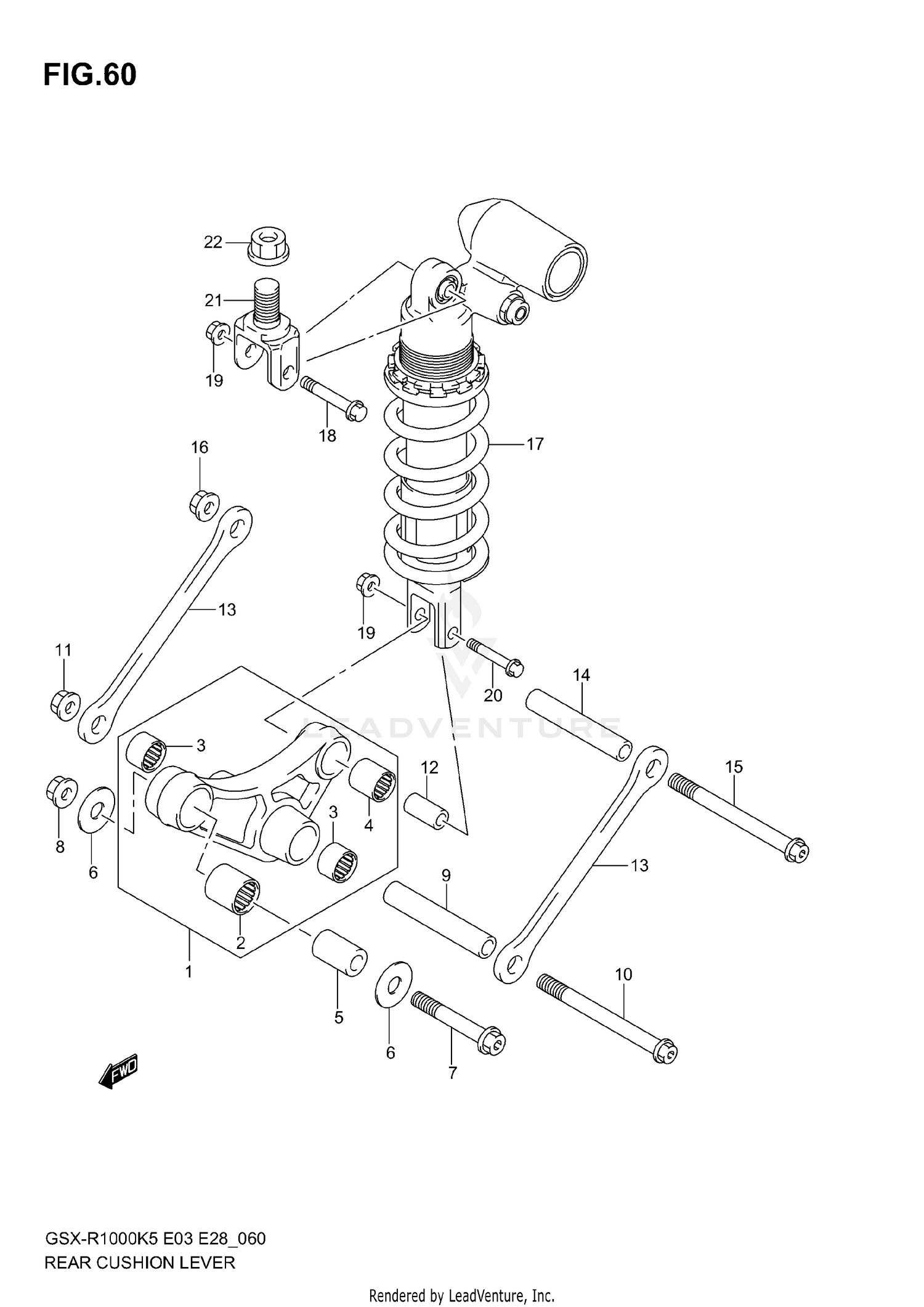

Rear Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-41810
|
$409.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (20X27X30)
09263-20073
Superseded by 09263-20121
|
$22.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,RR CUSHION LVR,FR (12X
62684-12C00
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-12037
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FRONT
62658-35F00
|
$45.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-12056
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER,REAR CUSHION LEVER,CTR
62626-33D00
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, CENTER
62621-35F00
|
$53.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#12
SPACER, REAR
62684-40A10
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, REAR CUSHION LEVER
62641-41G00
|
$64.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,REAR CUSHION LEVER,CTR
62626-33D00
|
$27.36 | ||
|
Unavailable |
|||
|
#15
BOLT, ROD
62621-35F00
|
$53.05 | ||
|
Unavailable |
|||
|
#16
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK
62100-41G10-163
|
$1,277.34 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK
62100-41G00-163
|
|||
|
Unavailable |
|||
|
#18
BOLT, UPPER (10X55)
09103-10143
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, LOWER (10X55)
09103-10143
|
$4.92 | ||
|
Unavailable |
|||
|
#21
BRACKET, ABSORBER
62993-35F00
|
$111.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09159-20006
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
