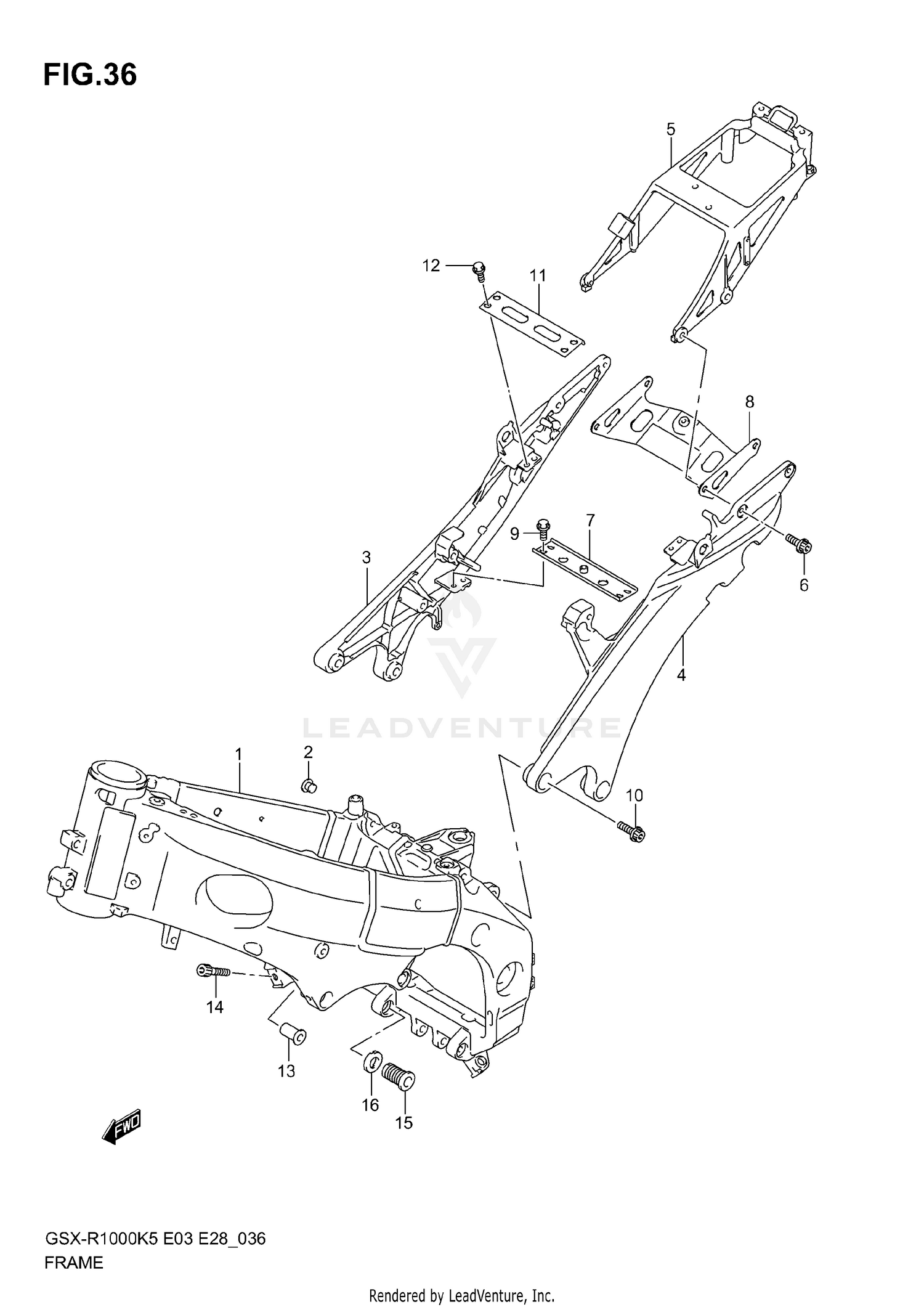

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME,COMP
41100-41G00-YAP
Superseded by 41000-41G00-YAP
|
$3,615.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION,NET COV
43585-18G00
Superseded by 43585-18G01
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL,SEAT,R(BLA
41211-41G00-YAP
Superseded by 41211-41G01-YAP
|
$503.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
RAIL,SEAT,L(BLA
41221-41G00-YAP
Superseded by 41221-41G01-YAP
|
$512.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,PILLION
41231-41G00
Superseded by 41231-41G01
|
$511.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,SEAT RAIL
41233-18G00
Superseded by 41233-18G20
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRIDGE, FRONT
41770-41G00
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRIDGE, REAR
41240-41G00
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X12)
09103-06083
Superseded by 09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07120-08203
Superseded by 07120-0820A
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRIDGE, UPPER
41251-41G00
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X12)
09103-06083
Superseded by 09103-06285
|
$2.46 | ||
|
Unavailable |
|||
|
#13
SPACER, ENGINE MOUNT
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPACER
09106-08149
Superseded by 09106-08170
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CRANKCASE ADJUST
41921-35F00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CRANKCASE ADJUST
41922-18G00
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
