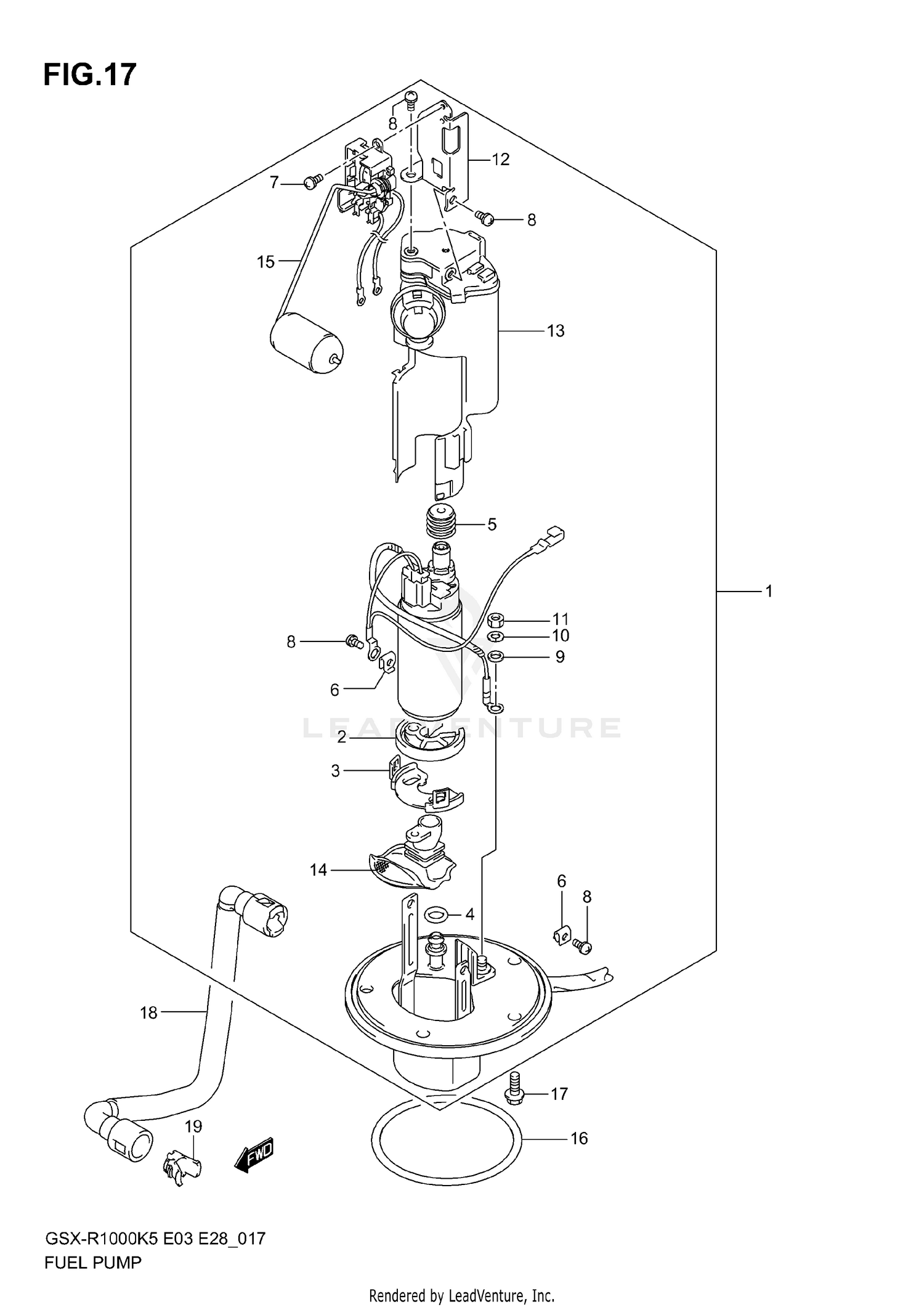

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, FUEL
15100-41G00
|
$1,306.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FUEL PUMP
15111-35F00
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, FUEL PUMP
15112-42F00
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
15113-35F00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, FUEL PUMP
15114-35F00
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
15115-35F00
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
15116-06G10
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
15116-35F10
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
15171-35F00
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING WASHER
15172-35F00
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
15173-35F00
|
$5.26 | ||
|
Unavailable |
|||
|
#12
BRACKET, FUEL GAUGE
15181-41G00
|
$27.93 | ||
|
Unavailable |
|||
|
#13
FILTER, FUEL
15410-41G00
|
$461.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
STRAINER, FUEL PUMP
15420-24FB0
|
$109.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
GAUGE ASSY, FUEL LEVEL
34810-41G00
|
$235.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING,FUEL PUMP
15201-35F00
|
$35.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, FUEL
15810-41G00
|
$81.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
RETAINER
15815-35F00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
