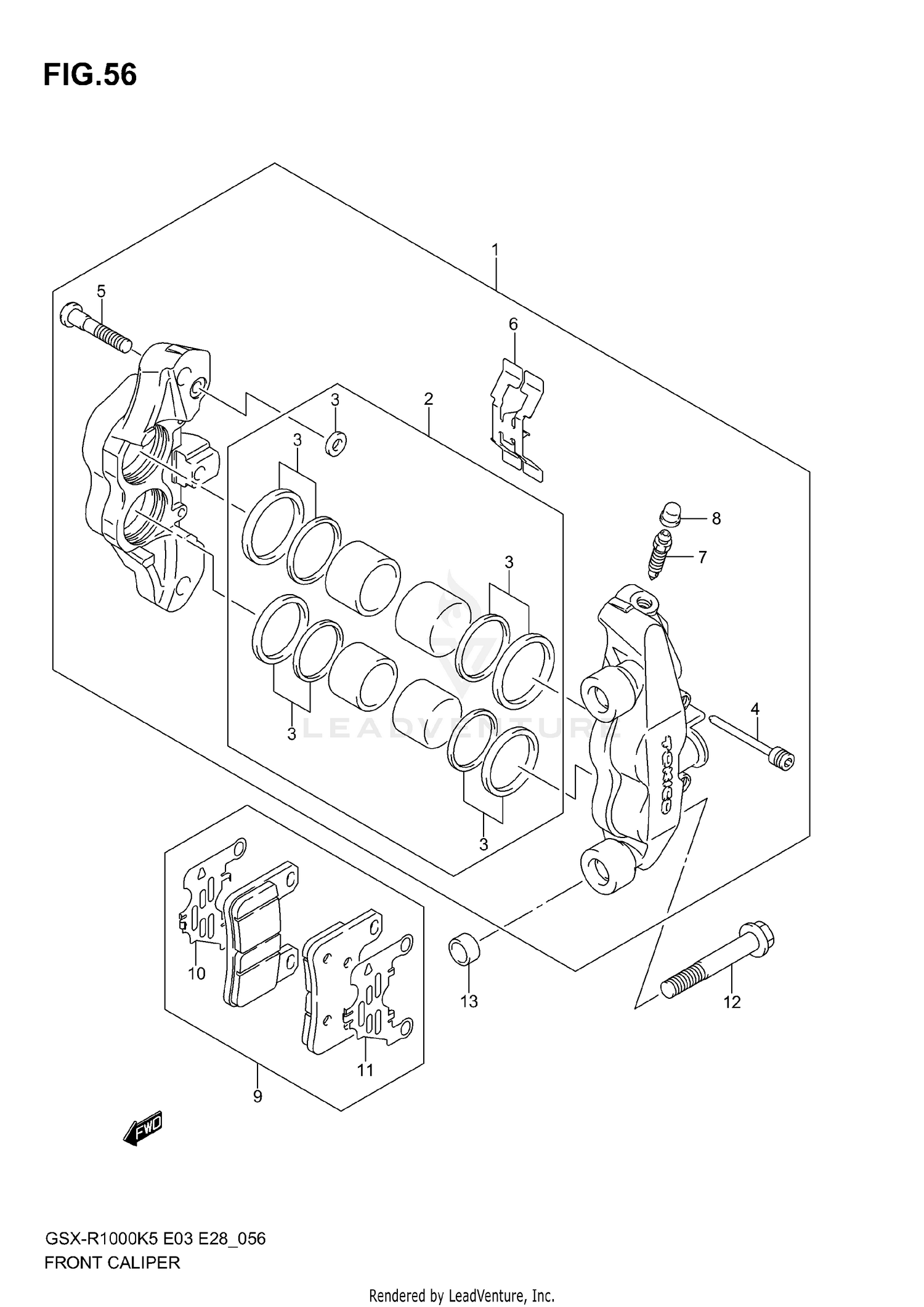

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-41G00-999
|
$699.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY, FRONT LH
59300-41G00-999
|
$713.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59100-35890
|
$130.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59100-29830
|
$55.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
.PIN
59141-41G00
Superseded by 59141-41G10
|
$34.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
59145-18G00
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
59151-29G00
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAD & SHIM SET
59100-29840
|
$75.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PAD A
59171-41G00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, PAD B
59172-41G00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09103-10392
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CALIPER
59151-41G00
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
