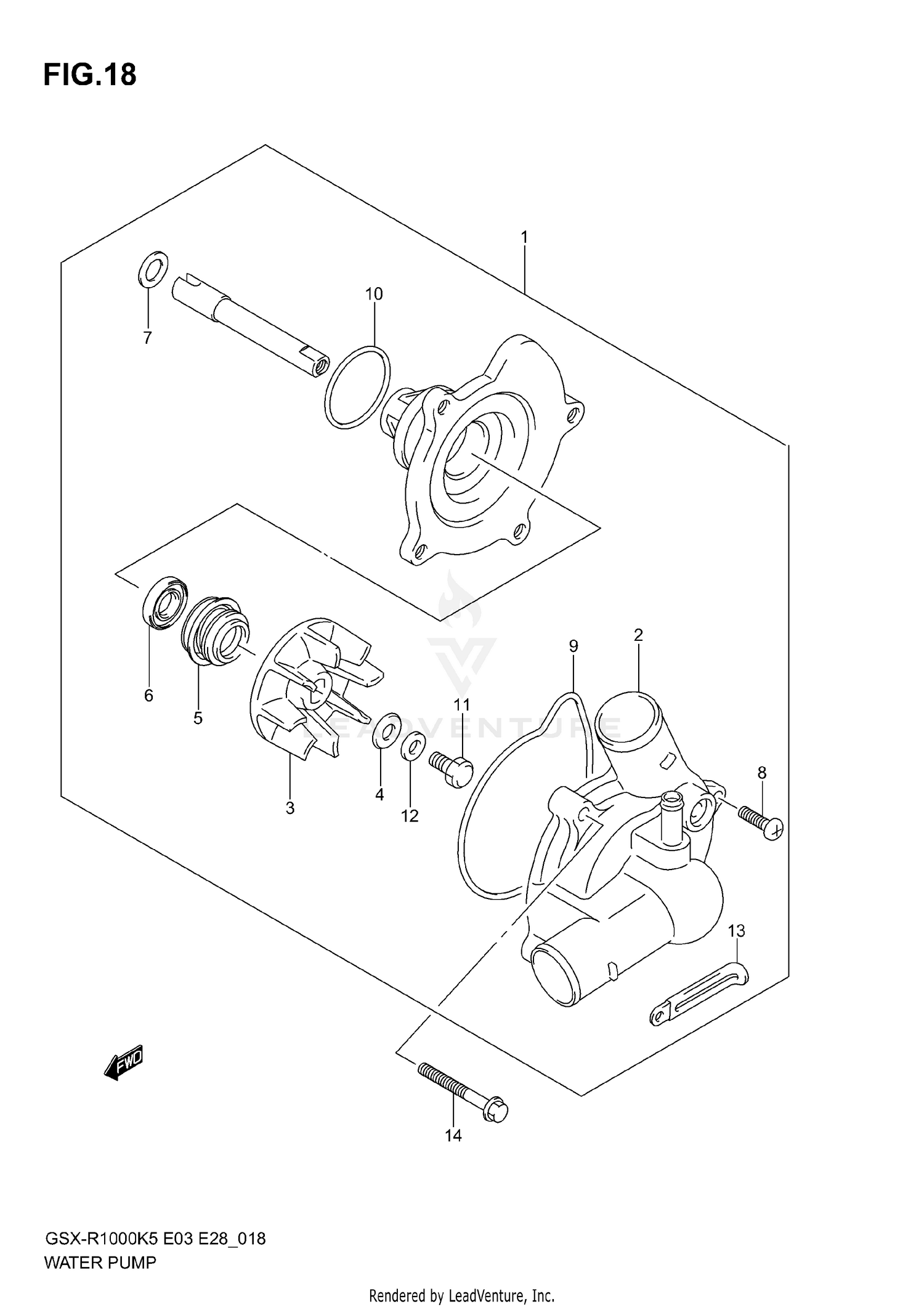

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-41G00
Superseded by 17400-41G01
|
$287.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE COMP
17411-41G00
Superseded by 17410-41G00
|
$129.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
IMPELLER
17491-17E01
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
.OIL SEAL (10X21X5)
09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
17432-07G00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O RING
17418-33400
Superseded by 17418-33401
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X13)
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#14
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
