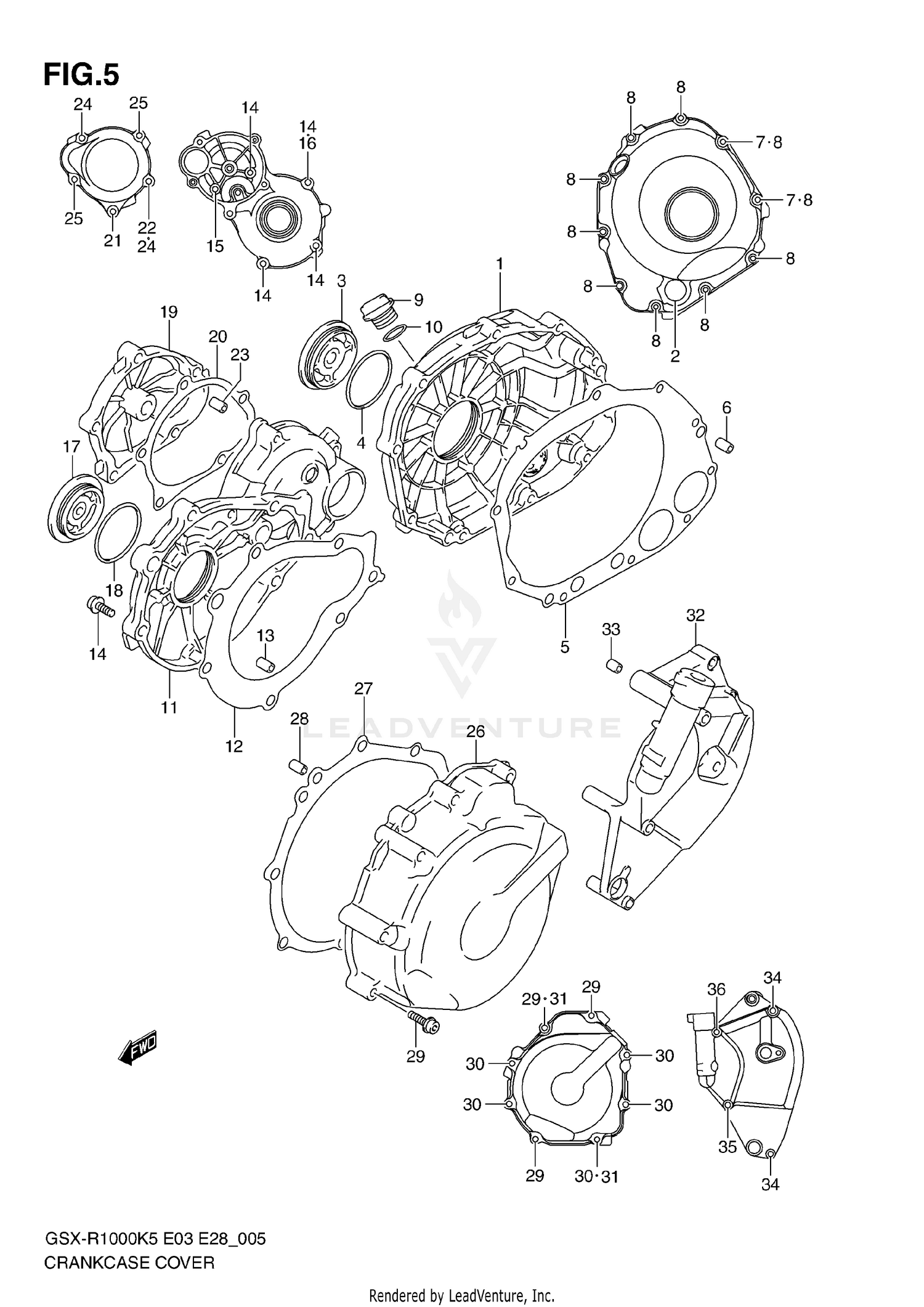

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-41G00
|
$339.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, CLUTCH RELEASE ADJUST
11342-41G00
|
$34.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O RING (D:2.4,ID:52.6)
09280-54001
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET,CLUTCH COVER
11482-40F00
Superseded by 11482-40F10
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, STARTER CLUTCH
11381-35F01
|
$276.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET,STARTER CLUTCH COVER
11491-33E02
|
$11.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#17
PLUG, SHAFT HOLE
09259-36021
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CAP, STARTER IDLE GEAR
11382-33E00
|
$100.72 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET,START IDLE GR CAP
11492-33E00
|
$9.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT
01547-06553
Superseded by 01547-0655B
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, BOLT (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#23
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#24
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Unavailable |
|||
|
#25
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Unavailable |
|||
|
#26
COVER, MAGNETO
11351-41G00
|
$246.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET,MAGNETO COVER
11483-18G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#29
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
Unavailable |
|||
|
#30
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#32
COVER, ENGINE SPROCKET
11361-41G00
|
$355.33 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01547-06553
Superseded by 01547-0655B
|
$3.42 | ||
|
Unavailable |
|||
|
#35
BOLT
01547-06803
Superseded by 01547-0680B
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#36
.BOLT
01547-06953
Superseded by 01547-0695B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
