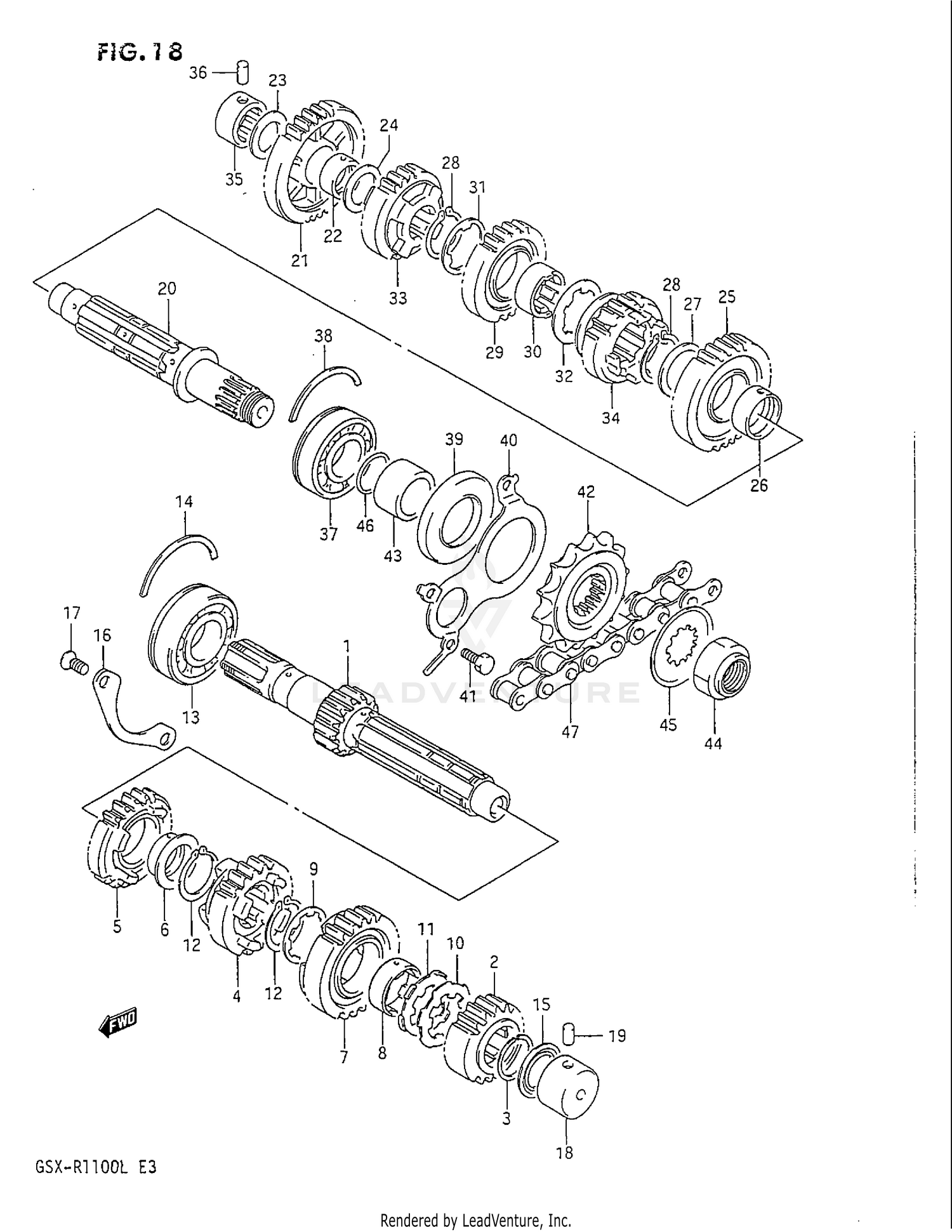

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:13)
24121-40C02
Superseded by 24121-40C03
|
$226.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-40C00
|
$99.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
09380-25013
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,3RD DRIVE,
24231-48B01
Superseded by 24231-48B10
|
$183.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR,4TH DRIVE,
24241-48B00
Superseded by 24241-48B50
|
$174.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, 2ND DRIVEN
09301-25001
Superseded by 24322-19F00
|
$26.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR,5TH DRIVE
24251-48B02
Superseded by 24251-48B30
|
$159.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH
24252-48B00
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,LOCK (25.1X33X1.0)
09167-25021
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,LOCK (25.1X41X1.5)
09167-25013
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK
09169-25001
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOLDER, BEARING
24741-27A00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING(20X34X1
09263-20049
Superseded by 09263-20119
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
DRIVESHAFT
24131-48B00
|
$191.54 | ||
|
Unavailable |
|||
|
#20
SHAFT, DRIVE
24131-40C10
Superseded by 24131-40C21
|
$288.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 1ST DRIVEN (NT:31)
24311-48B00
Superseded by 24311-48B20
|
$137.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH, 1ST DRIVEN
09300-22005
Superseded by 24312-02F00
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, RH
08211-20341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LH
08211-22341
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 2ND DRIVEN (NT:31)
24321-48B00
Superseded by 24321-48B10
|
$167.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH
09300-28002
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
08211-28361
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR,3RD DRIVEN
24331-48B02
Superseded by 24331-48B30
|
$137.51 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR,3RD DRIVEN
24331-48B03
Superseded by 24331-48B30
|
$137.51 | ||
|
Unavailable |
|||
|
#30
BUSH, 3RD DRIVEN GEAR
24332-48B00
Superseded by 24332-48B01
|
$35.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, RH
09167-28001
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LH (T:2)
09167-28008
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR,4TH DRIVEN
24341-06B01
Superseded by 24341-06B30
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#34
GEAR, 5TH DRIVEN (NT:21)
24351-48B01
Superseded by 24351-48B06
|
$166.84 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING (20X34X20)
09263-20040
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN (L:20)
04221-07209
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, LH
09262-25103
|
$73.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Unavailable |
|||
|
#39
OIL SEAL (34X62X6)
09283-34005
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE
24751-27A01
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
01107-06107
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPROCKET, ENGINE (NT:15)
27510-48B00
|
$110.63 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPACER (25X34X19.7)
09180-25093
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPACER (25X34X22.7)
09180-25094
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, LOCK
09167-25019
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#46
O RING (D:1,ID:24.5)
09280-25001
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#47
CHAIN, DRIVE (RK532GSV2X116LE
27600-40C20-114
Superseded by 27600-46E20-116
|
$276.38 | ||
|
Available to order. Add to View Price |
|||
|
#47
CHAIN, DRIVE (RK532GSV2X118LE
27600-40C20-118
|
$280.53 | ||
|
Available to order. Add to View Price |
|||
