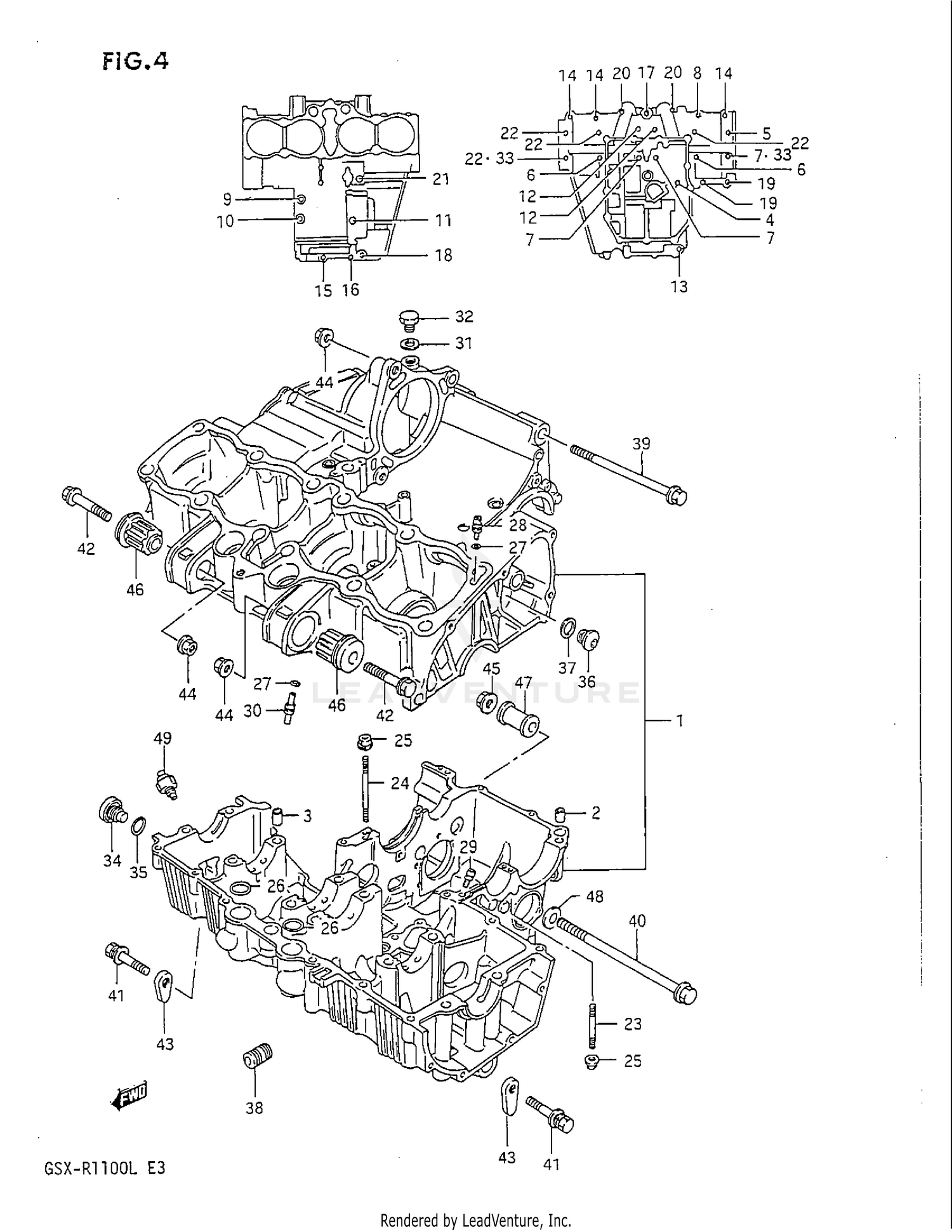

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11301-40830
Superseded by 11301-40833
|
$2,009.18 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13004
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (11X20)
09206-11005
Superseded by 09206-11017
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X105)
09103-06067
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X105)
09103-08097
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X125)
09103-08182
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X115)
09103-08098
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01517-06354
Superseded by 01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STATOR
07110-06405
Superseded by 07130-0640B
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07110-06505
Superseded by 07130-0650B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07110-06655
Superseded by 07130-0665B
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
07110-08555
Superseded by 07130-0855B
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07110-08655
Superseded by 07130-0865B
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01517-08605
Superseded by 01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01517-06354
Superseded by 01550-0635A
|
$2.88 | ||
|
Unavailable |
|||
|
#15
BOLT
01517-06404
Superseded by 01550-0640A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01517-06408
Superseded by 01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01517-06505
Superseded by 01550-0650A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01517-06605
Superseded by 01550-0660A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01517-06558
Superseded by 01550-06557
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01517-06705
Superseded by 01550-0670B
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01517-06805
Superseded by 01550-0680B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (8X95)
09103-08105
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,STUD
01421-06408
Superseded by 01421-0640A
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,STUD
01421-06608
Superseded by 01421-0660A
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09159-06017
Superseded by 08319-31067
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
O RING (D:2.5,ID:21)
09280-21008
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, OIL GALY HEAD
09493-14002
|
$13.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, OIL GALY GEAR SHIFT
09493-24010
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, OIL GALY PISTON
09493-80008
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, HOLE PLUG
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PLUG, HOLE
09247-12103
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
09168-08021
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG
09248-16003
Superseded by 09248-16007
|
$10.83 | ||
|
Available to order. Add to View Price |
|||
|
#35
O RING (D:2.4,ID:16.8)
09280-17002
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUG, CYLINDER HEAD
09248-14004
Superseded by 09248-14010
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
UNION,OIL STAND
16591-06B00
Superseded by 16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT (10X150)
09103-10139
Superseded by 09103-10078
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (12X178)
09100-12060
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
01987-10558
Superseded by 01580-1055B
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
01517-10558
Superseded by 01550-10557
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
09159-10020
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
08319-31128
Superseded by 08319-3112A
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#46
BUSH
11681-27A00
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPACER (L:27)
11611-40C00
Superseded by 11611-40C01
|
$8.55 | ||
|
Unavailable |
|||
|
#48
WASHER
08322-11128
Superseded by 08322-01127
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#49
SWITCH ASSY,OIL PRESSURE
37820-33200
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
