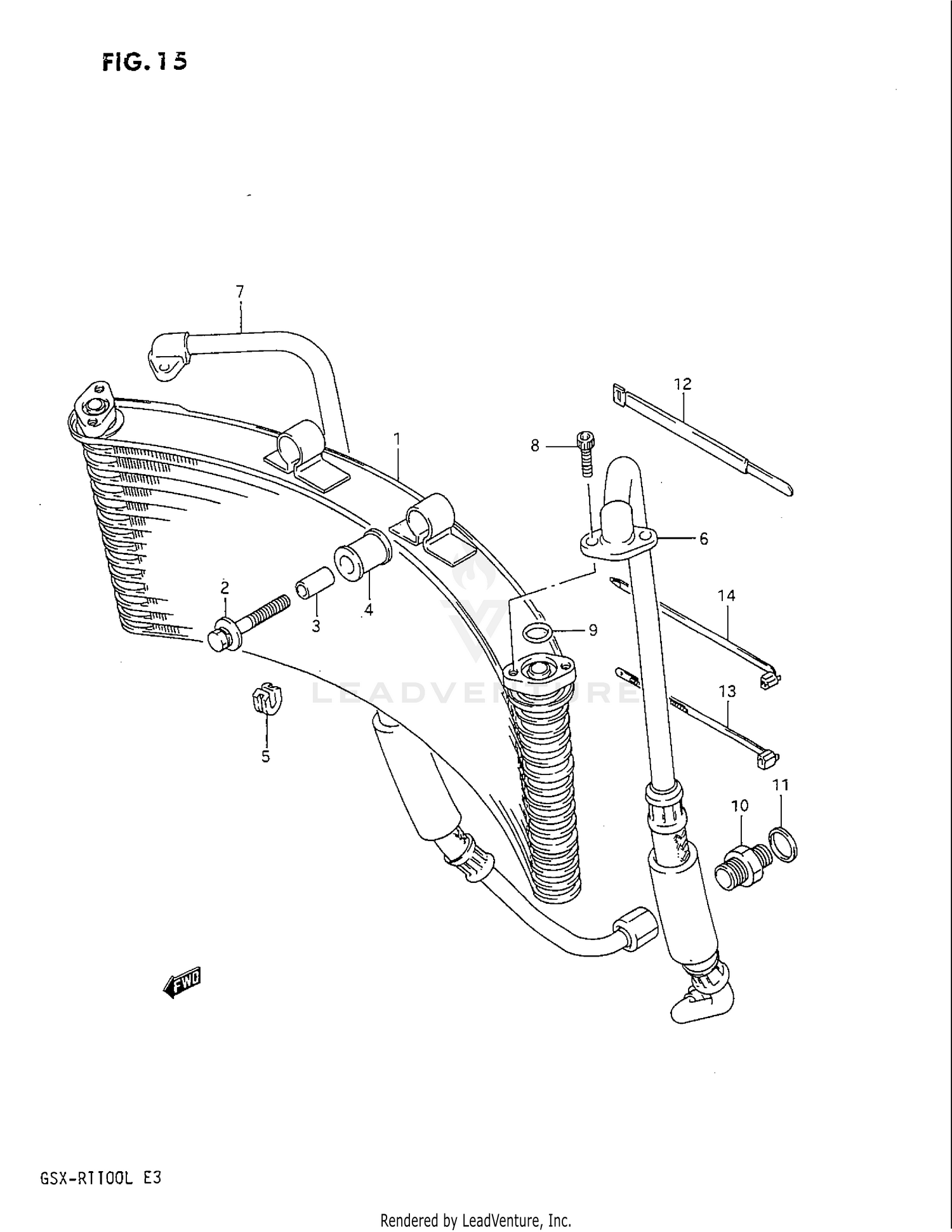

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-40C01
Superseded by 16600-40C03
|
$1,135.25 | ||
|
Unavailable |
|||
|
#1
COOLER ASSY, OIL
16600-40C03
|
$1,135.25 | ||
|
Unavailable |
|||
|
#2
BOLT (8X40)
09118-08131
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
09180-08124
Superseded by 09180-08304
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, NO.1
16629-27A01
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,OIL COOLER,NO.2
16628-27A00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, OIL COOLER LH
16460-40C00
|
$152.86 | ||
|
Unavailable |
|||
|
#6
HOSE, OIL COOLER LH
16460-40C01
Superseded by 16460-40C10
|
$207.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, OIL COOLER RH
16470-40C00
|
$160.51 | ||
|
Unavailable |
|||
|
#7
HOSE, OIL COOLER RH
16470-40C01
Superseded by 16470-40C10
|
$207.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07110-06165
Superseded by 07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (D:2.4,ID:12.3)
09280-12008
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
09360-20002
|
$16.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (16X22X2)
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP(L:250)
09407-25301
Superseded by 09407-25302
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:220)
09407-22404
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
