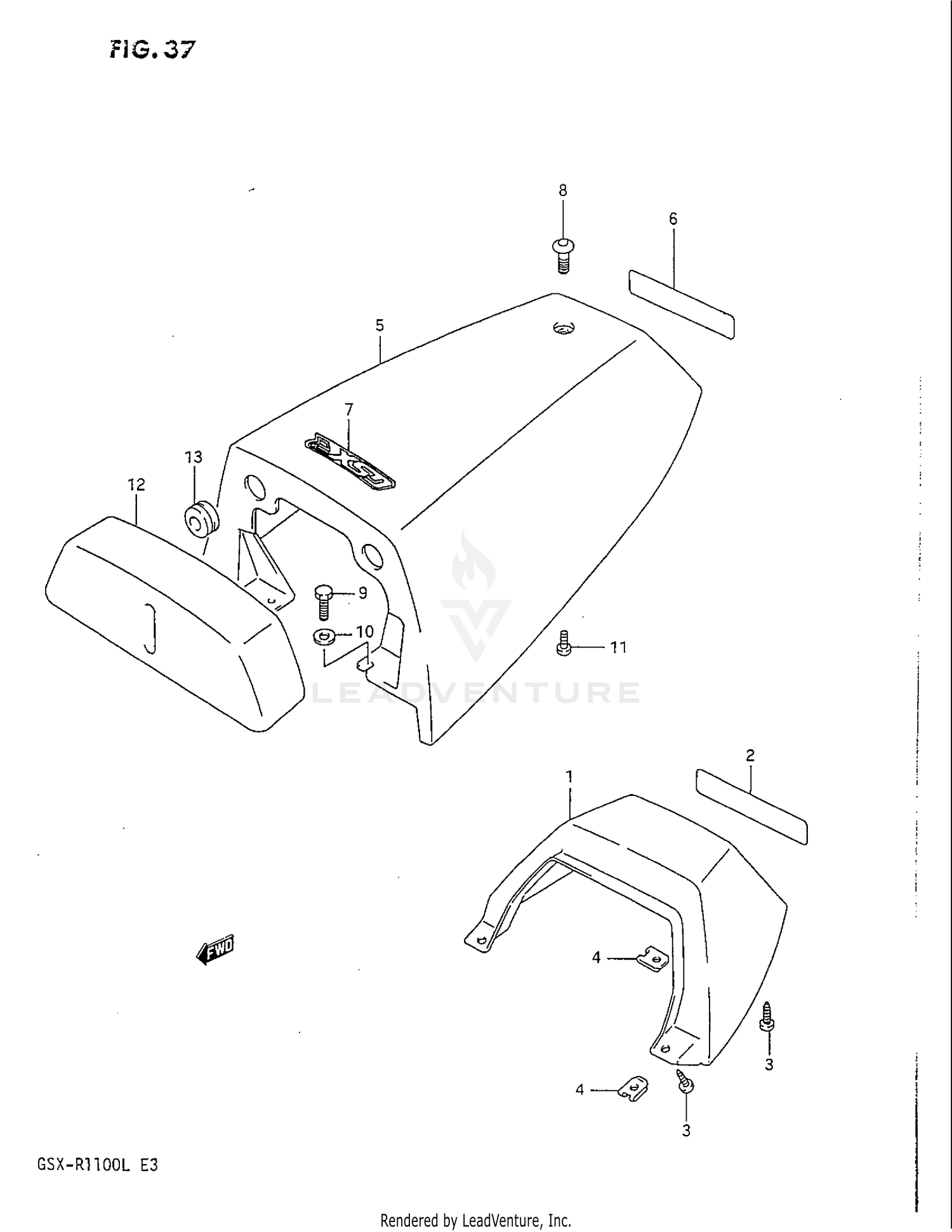

Seat Tail Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SEAT TAIL (BLUE)
45510-40C10-33N
Superseded by 45510-40C12-0NE
|
$162.44 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
45510-40C10-33J
Superseded by 45510-17C52-33J
|
$162.44 | ||
|
Unavailable |
|||
|
#1
COVER, SEAT TAIL (BLUE)
45510-40C11-33N
Superseded by 45510-40C12-0NE
|
$162.44 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
45510-40C11-33J
Superseded by 45511-17C10
|
$84.07 | ||
|
Unavailable |
|||
|
#1
COVER, SEAT TAIL (BLUE)
45510-40C12-0NE
|
$162.44 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
45510-40C12-33J
Superseded by 45510-17C52-33J
|
$162.44 | ||
|
Unavailable |
|||
|
#2
EMBLEM (WHITE)
68166-04700-22R
Superseded by 68166-04700-0JW
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM (SILVER)
68166-04700-742
|
$4.06 | ||
|
Unavailable |
|||
|
#2
EMBLEM (WHITE)
68166-04700-0JW
|
$5.67 | ||
|
Unavailable |
|||
|
#3
SCREW
03242-05129
Superseded by 03241-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09148-05013
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
45500-17C20-33N
Superseded by 45500-17880-13L
|
$224.02 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
45500-17C40-33J
Superseded by 45500-17840-36X
|
$144.95 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
45500-17C21-33N
Superseded by 45500-17880-13L
|
$224.02 | ||
|
Unavailable |
|||
|
#5
BOX ASSY, SEAT TAIL (BLACK)
45500-17C41-33J
|
$151.58 | ||
|
Unavailable |
|||
|
#6
EMBLEM (WHITE)
68166-04700-22R
Superseded by 68166-04700-0JW
|
$5.67 | ||
|
Unavailable |
|||
|
#6
EMBELM (SILVER)
68166-04700-742
|
$4.06 | ||
|
Unavailable |
|||
|
#7
TAPE, SEAT TAIL BOX
68651-17C00-2RM
|
$7.82 | ||
|
Unavailable |
|||
|
#8
SCREW, UPPER
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, GEAR SHIFT LINK
01107-06206
Superseded by 01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
08322-21066
Superseded by 08322-0106B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02142-05128
Superseded by 02142-05127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
BACKREST, SEAT (BLUE)
46220-17C10-5NN
|
$73.26 | ||
|
Unavailable |
|||
|
#12
BACKREST, SEAT (BLACK)
46220-17C10-58R
|
$73.26 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-12031
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOX SET, SEAT TAIL (BLUE)
45500-17840-0NE
|
$144.95 | ||
|
Unavailable |
|||
|
#14
NO DESCRIPTION AVAILABLE
45500-17840-33J
Superseded by 45500-17840-36X
|
$144.95 | ||
|
Unavailable |
|||
|
#15
EMBLEM (WHITE)
68166-04700-0JW
|
$5.67 | ||
|
Unavailable |
|||
|
#15
EMBLEM (SILVER)
68166-04700-742
|
$4.06 | ||
|
Unavailable |
|||
|
#16
SCREW, UPPER
09139-06030
|
$4.64 | ||
|
Unavailable |
|||
|
#17
BOLT, GEAR SHIFT LINK
01107-06206
Superseded by 01500-0620A
|
$2.21 | ||
|
Unavailable |
|||
|
#18
.WASHER
08322-21066
Superseded by 08322-0106B
|
$2.80 | ||
|
Unavailable |
|||
|
#19
SCREW
02142-05128
Superseded by 02142-05127
|
$2.46 | ||
|
Unavailable |
|||
|
#20
BACKREST, SEAT (BLUE)
46220-17C10-5NN
|
$73.26 | ||
|
Unavailable |
|||
|
#20
BACKREST, SEAT (BLACK)
46220-17C10-58R
|
$73.26 | ||
|
Unavailable |
|||
|
#21
CUSHION
09320-12031
|
$2.95 | ||
|
Unavailable |
|||
