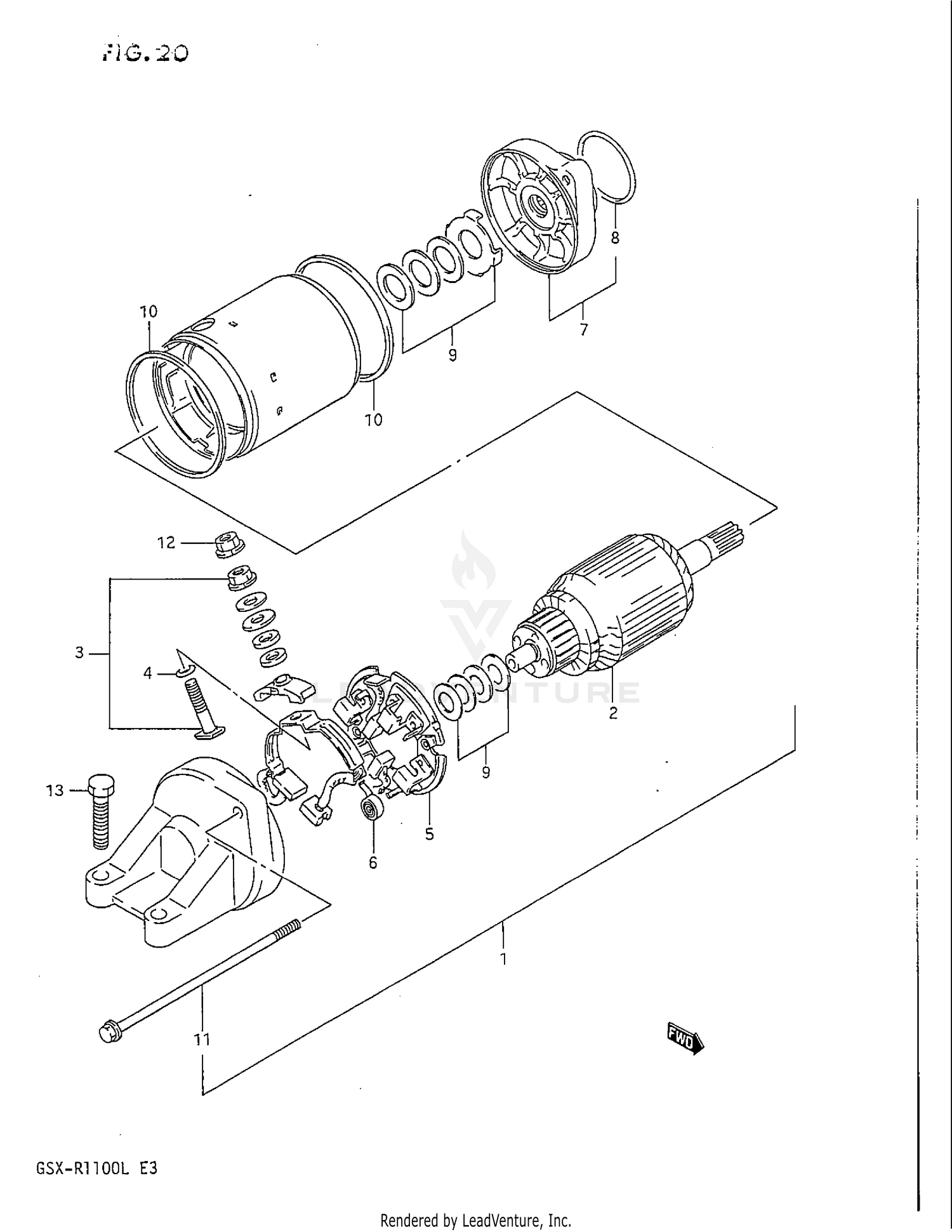

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-40C00
Superseded by 31100-26D10
|
$449.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARMATURE
31310-40C00
Superseded by 31310-40C02
|
$271.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
TERMINAL SET, BRUSH
31130-38B00
|
$78.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
31143-49040
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER SET, BRUSH
31132-38B00
|
$78.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, BRUSH
31135-38B00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET ASSY, FRONT
31150-40C00
Superseded by 31150-26D00
|
$63.74 | ||
|
Unavailable |
|||
|
#8
.O RING
31156-40C00
Superseded by 31156-48B00
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER SET
31170-19B10
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
31264-31300
Superseded by 31264-32E00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
31280-40C00
Superseded by 31280-26D00
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08361-35066
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STARTING MOTOR
09128-06024
Superseded by 09103-06212
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
