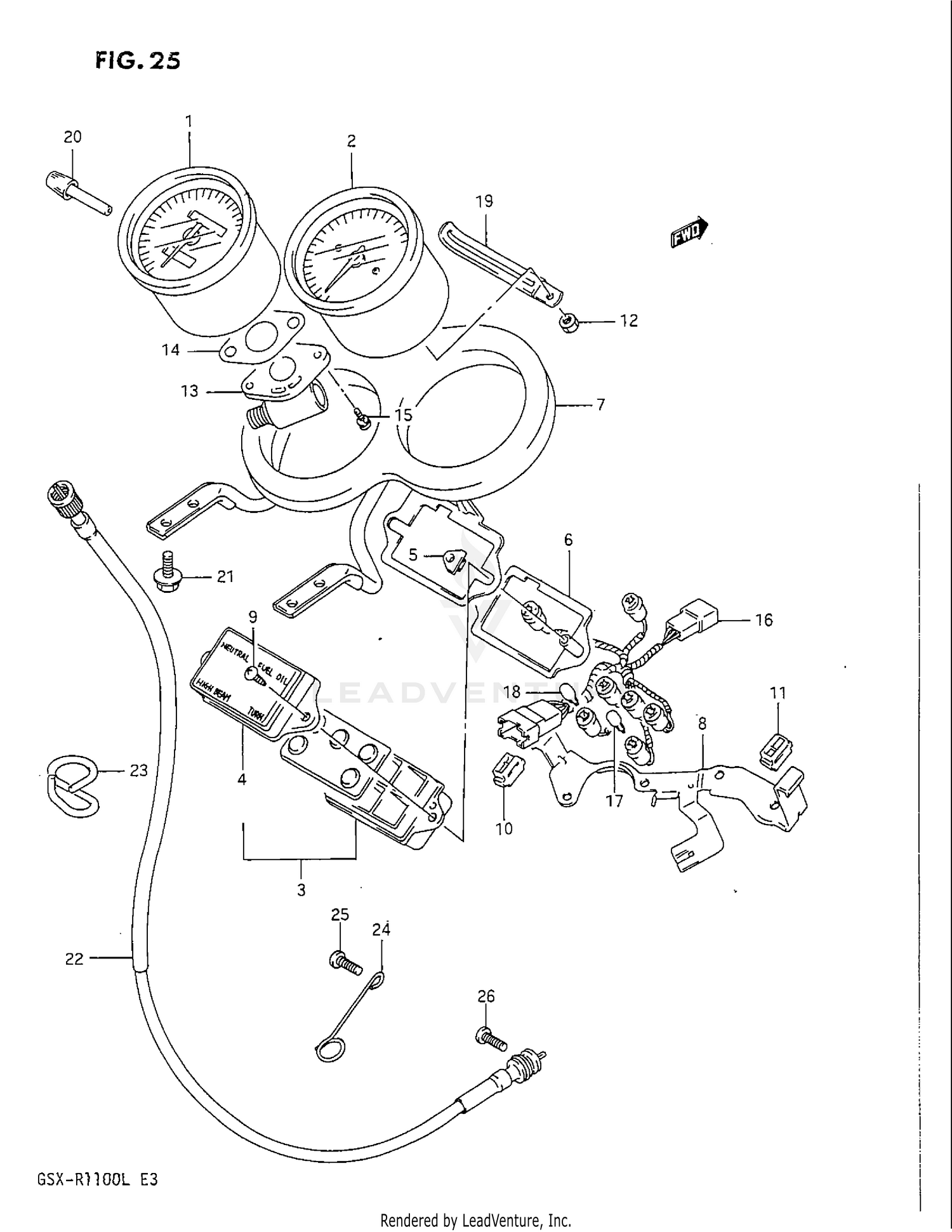

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
34110-40C30
Superseded by 34110-41C31
|
$521.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
TACHOMETER
34210-40C20
Superseded by 34210-41C21
|
$522.50 | ||
|
Unavailable |
|||
|
#2
TACHOMETER
34210-40C60
Superseded by 34210-41C21
|
$522.50 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
36380-40C30
Superseded by 36380-40C20
|
$48.48 | ||
|
Unavailable |
|||
|
#4
CASE, UPPER
36381-40C20
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
34716-32C00
|
$2.25 | ||
|
Unavailable |
|||
|
#6
PLATE, PILOT BOX
34718-32C00
|
$15.71 | ||
|
Unavailable |
|||
|
#7
PLATE, SETTING
34950-40C20
|
$188.00 | ||
|
Unavailable |
|||
|
#8
BRACKET
34111-17C00
|
$64.83 | ||
|
Unavailable |
|||
|
#9
SCREW
02112-74085
Superseded by 02112-7408B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LH
34189-17C00
|
$2.77 | ||
|
Unavailable |
|||
|
#11
CUSHION
34189-04A30
Superseded by 34189-27A00
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08310-11045
Superseded by 08310-0004A
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX, METER GEAR
34131-48B10
|
$170.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, GEAR BOX
34132-17C00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-34128
Superseded by 02112-3412B
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
SOCKET
34170-40C20
Superseded by 34170-41C20
|
$117.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULB (12V,3W)
09471-12103
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULB (12V1.7W)
09471-12108
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:60)
09404-04402
Superseded by 09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#20
KNOB
34124-49400
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE,SPEEDOMET
34910-40C01
Superseded by 34910-19C02
|
$35.86 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE,SPEEDOMET
34910-17C00
Superseded by 34910-19C02
|
$35.86 | ||
|
Unavailable |
|||
|
#23
CLAMP, CABLE
34939-40C50
|
$2.51 | ||
|
Unavailable |
|||
|
#24
GUIDE, SPEEDOMETER CABLE NO.3
34939-45000
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, SPEEDOMETER CABLE NO.3
34939-17D00
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02142-06108
|
$0.48 | ||
|
Unavailable |
|||
|
#26
SCREW
02112-05164
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
