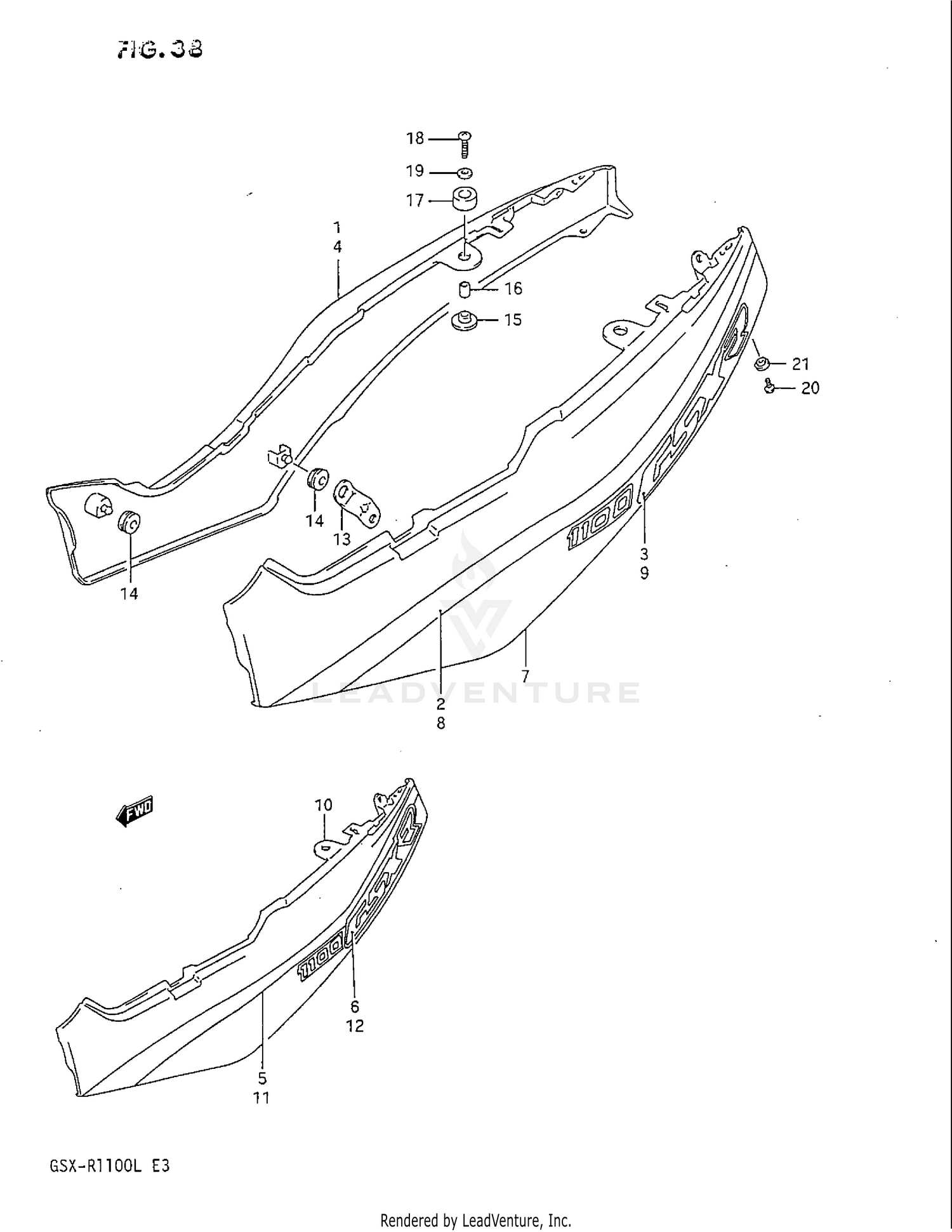

Frame Cover (model K) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
47110-40C30-2FF
Superseded by 47111-17C00
|
$317.72 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
47110-40C31-2FF
Superseded by 47111-17C00
|
$317.72 | ||
|
Unavailable |
|||
|
#2
TAPE, FRAME COVER RH (WHITE)
68135-17C10-22R
|
$29.53 | ||
|
Unavailable |
|||
|
#3
EMBLEM, RH
68131-40C10-2GZ
|
$18.19 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME RH
47110-40C40-3CH
|
$285.40 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME RH
47110-40C41-3CH
Superseded by 47110-40C40-3CH
|
$285.40 | ||
|
Unavailable |
|||
|
#5
TAPE, FRAME COVER RH (BLACK)
68135-40C20-17U
|
$39.23 | ||
|
Unavailable |
|||
|
#6
EMBLEM, RH
68131-40C30-2RM
|
$20.25 | ||
|
Unavailable |
|||
|
#7
NO DESCRIPTION AVAILABLE
47210-40C30-2FF
Superseded by 47211-17C00
|
$307.24 | ||
|
Unavailable |
|||
|
#7
NO DESCRIPTION AVAILABLE
47210-40C31-2FF
Superseded by 47211-17C00
|
$307.24 | ||
|
Unavailable |
|||
|
#8
TAPE, FRAME COVER LH (WHITE)
68145-17C10-22R
|
$46.65 | ||
|
Unavailable |
|||
|
#9
EMBLEM, LH
68141-40C10-2GZ
|
$20.86 | ||
|
Unavailable |
|||
|
#10
COVER, FRAME LH
47210-40C40-3CH
|
$256.76 | ||
|
Unavailable |
|||
|
#10
COVER, FRAME LH
47210-40C41-3CH
Superseded by 47210-40C40-3CH
|
$256.76 | ||
|
Unavailable |
|||
|
#11
TAPE, FRAME COVER LH (BLACK)
68145-40C20-17U
|
$38.06 | ||
|
Unavailable |
|||
|
#12
EMBLEM, LH
68141-40C30-2RM
|
$18.96 | ||
|
Unavailable |
|||
|
#13
BRACKET,FRAME C
43815-17C11
Superseded by 43815-17C1V
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, LOWER
45326-17C00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
09180-06143
Superseded by 09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, UPPER
45149-04A00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02142-06305
Superseded by 02142-0630B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, CLUTCH RLSE NO.2
09160-06069
Superseded by 09160-06052
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SCREW
02142-05124
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
09161-05017
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
