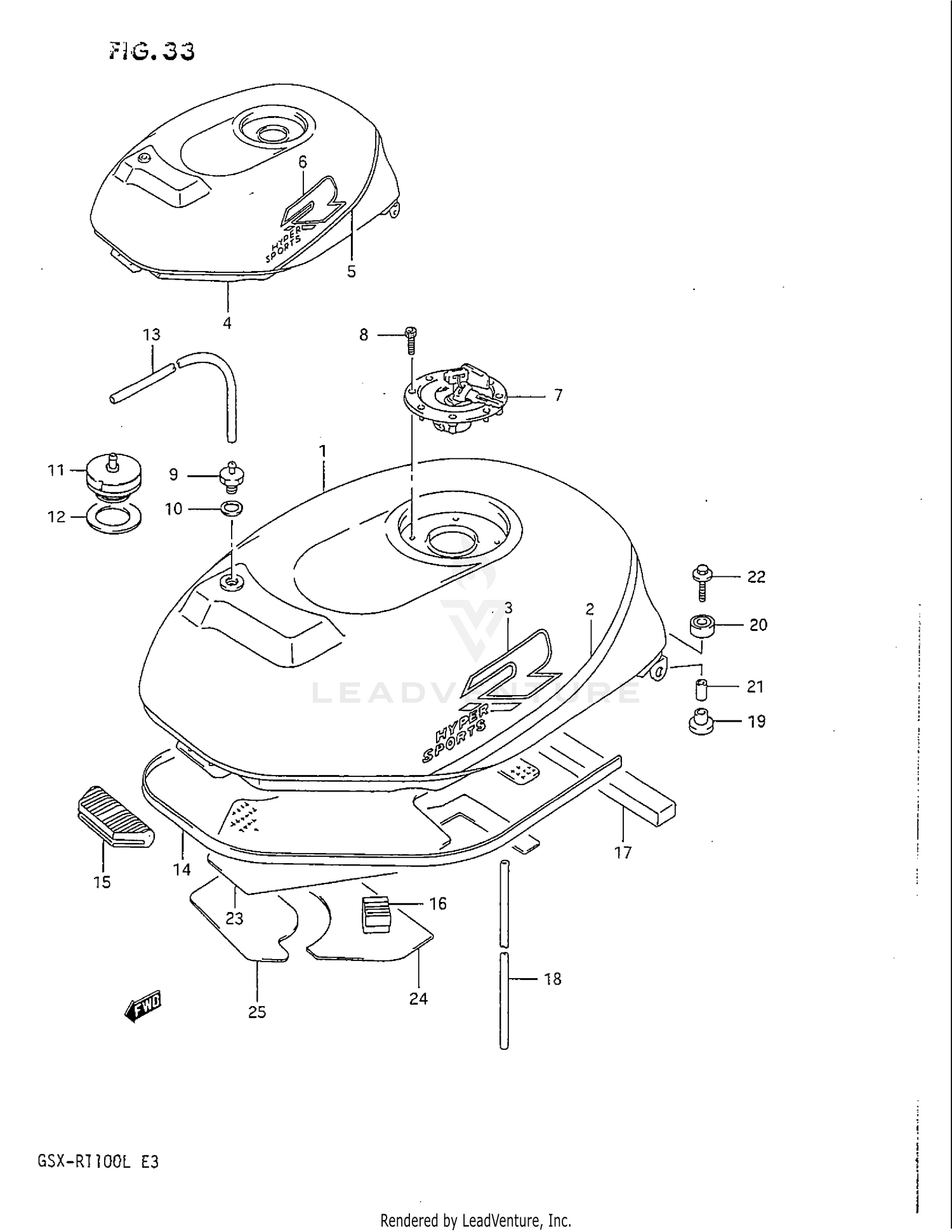

Fuel Tank (model K) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-40C00-9SR
Superseded by 44110-40C10-Y2D
|
$1,064.91 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL
49100-40C00-9SR
|
$611.41 | ||
|
Unavailable |
|||
|
#2
TAPE, FUEL TANK (BLUE)
68115-40C00-39K
|
$45.57 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68111-06B00-2GS
|
$20.06 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
44100-40C60-3CG
Superseded by 44110-40C10-Y2D
|
$1,064.91 | ||
|
Unavailable |
|||
|
#4
TANK ASSY, FUEL
49100-40C10-3CG
|
$514.00 | ||
|
Unavailable |
|||
|
#5
TAPE, FUEL TANK (BLACK)
68115-40C20-33J
|
$41.79 | ||
|
Unavailable |
|||
|
#6
EMBLEM
68111-06B00-2RM
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP SET, FUEL TANK
44200-19C20-KEY
Superseded by 44201-01852
|
$192.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, BREATHER
44240-06B10
|
$43.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
09168-12012
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, FUEL TANK BREATHER
44240-28A01
|
$68.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
09168-27001
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,5X10X600
09352-50823-370
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
MOLDING (L:300)
68241-27A00
Superseded by 68241-04X50-00B
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, FRONT
44511-17C00
|
$8.80 | ||
|
Unavailable |
|||
|
#16
CUSHION, SIDE
44545-40C00
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, AIR SEAL
44151-17C00
Superseded by 13841-17E00
|
$20.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE
09352-50823-730
Superseded by 09352-50005-00B
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION, LOWER
09320-10038
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CUSHION, UPPER
09320-14017
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPACER
09180-06072
Superseded by 09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT
09116-06097
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
HEAT SHIELD, FUEL TANK
44191-17C01
|
$34.56 | ||
|
Unavailable |
|||
|
#24
HEAT SHIELD, FUEL TANK NO.1
44191-40C00
|
$30.77 | ||
|
Unavailable |
|||
|
#25
HEAT SHIELD, FUEL TANK NO.1
44191-40C10
|
$10.28 | ||
|
Unavailable |
|||
