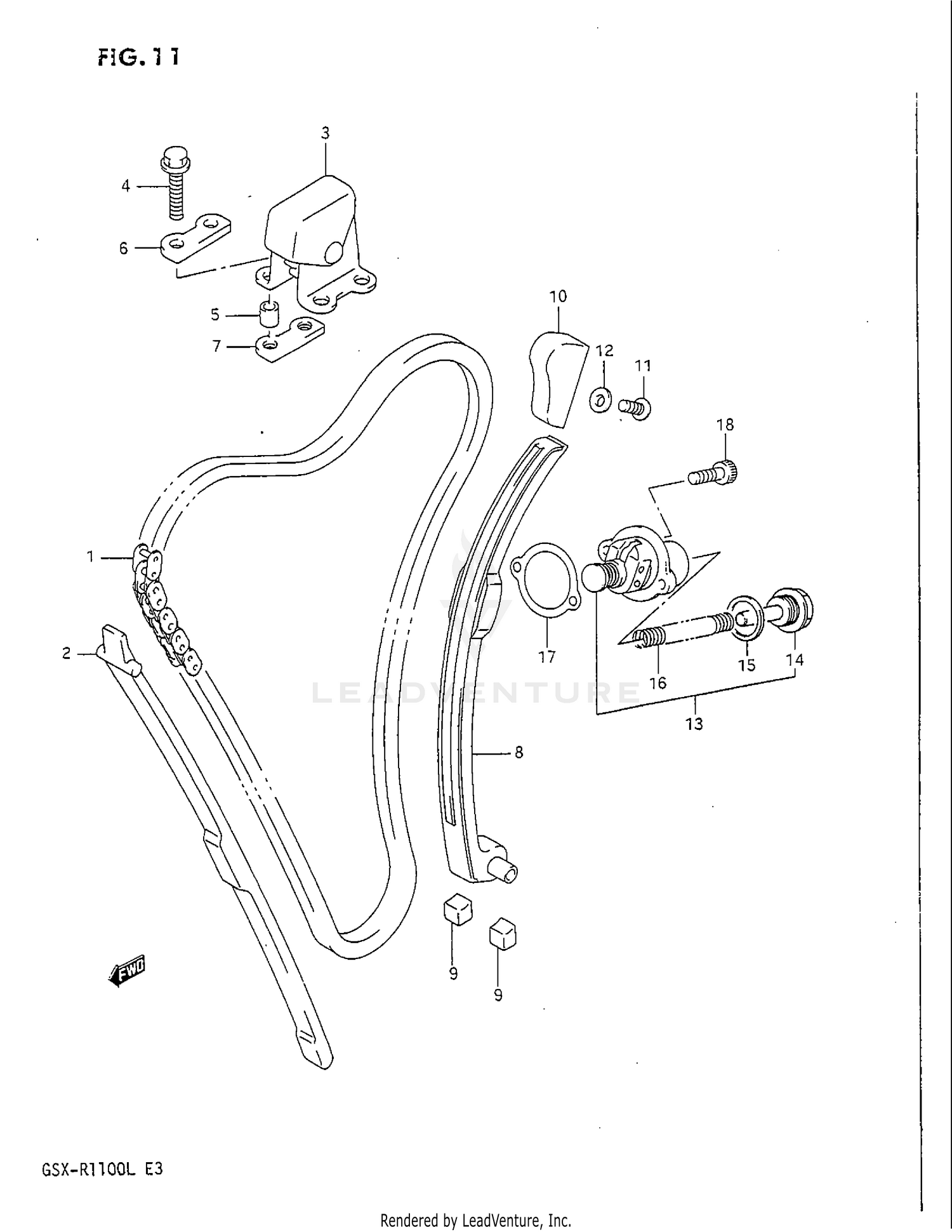

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT
12760-40C00
Superseded by 12760-40C01
|
$142.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-06B01
|
$55.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
IDLER, CAM CHAIN
12780-40C00
|
$104.00 | ||
|
Unavailable |
|||
|
#4
BOLT
01517-06307
Superseded by 01550-06307
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
09180-06167
Superseded by 09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION (T:5.2)
12788-48B01
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION (T:8.6)
12788-48B11
|
$18.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER,CAM C
12810-40C00
Superseded by 12810-40C01
|
$75.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
12814-34200
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, CAM CHAIN NO.2
12791-06B01
|
$81.35 | ||
|
Unavailable |
|||
|
#11
BOLT
01517-06105
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NO DESCRIPTION AVAILABLE
12830-48B02
Superseded by 12830-48B03
|
$726.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
12834-27A00
|
$22.62 | ||
|
Unavailable |
|||
|
#15
GASKET
12832-27A00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
12833-06B00
|
$25.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
12837-27A00
Superseded by 12837-27A10
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07110-06255
Superseded by 07130-0625B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
