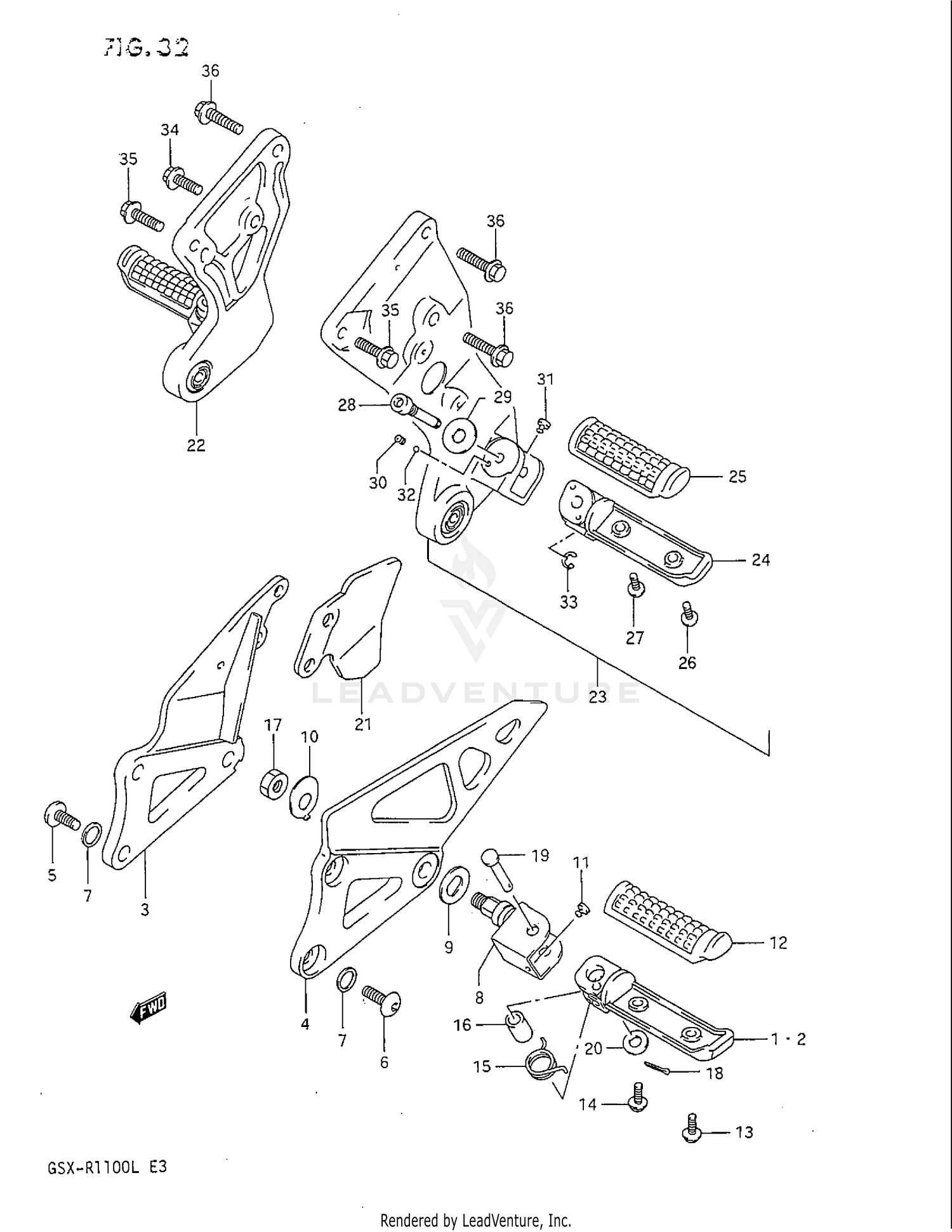

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTREST RH
43511-40C00
|
$72.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, FRONT FOOTREST LH
43521-40C00
|
$72.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
NO DESCRIPTION AVAILABLE
43510-17C03
Superseded by 43510-17C04
|
$94.25 | ||
|
Unavailable |
|||
|
#3
BRACKET, FOOTREST RH
43511-17D00
Superseded by 43511-17D01
|
$156.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FOOTREST LH
43522-17C02
Superseded by 43522-17D01
|
$173.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FOOTREST LH
43522-17D00
Superseded by 43522-17D01
|
$173.58 | ||
|
Unavailable |
|||
|
#5
BOLT
43529-40C00
Superseded by 09139-10004
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT , 10X20
43529-17C10
Superseded by 09106-10050
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09164-10005
Superseded by 09164-10010
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
NO DESCRIPTION AVAILABLE
43530-40C00
Superseded by 43530-40C01
|
$69.37 | ||
|
Unavailable |
|||
|
#9
PLATE, FRONT FOOTREST
43213-17C01
|
$4.62 | ||
|
Unavailable |
|||
|
#10
WASHER, FRONT FOOTREST
43214-17C01
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, FOOTREST
43541-40C00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER
43550-40C10
Superseded by 43550-40C11
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, FOOTREST
43550-40C11
|
$29.07 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-75168
Superseded by 02112-7516A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-75208
Superseded by 02112-75207
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
09448-19020
Superseded by 09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER, FRONT FOOTREST
09180-08149
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FIXED DRIVE FACE
08310-22127
Superseded by 09140-12039
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
04111-25158
Superseded by 04111-2515A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09200-08057
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
43586-40C00
Superseded by 43586-40C02
|
$40.63 | ||
|
Unavailable |
|||
|
#21
NO DESCRIPTION AVAILABLE
43586-40C01
Superseded by 43586-40C02
|
$40.63 | ||
|
Unavailable |
|||
|
#22
FOOTREST ASSY, PILLION RH
43600-40C00
|
$162.46 | ||
|
Unavailable |
|||
|
#23
FOOTREST ASSY, PILLION LH
43700-40C00
|
$151.60 | ||
|
Unavailable |
|||
|
#24
BAR, RH
43610-40C00
|
$78.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAR, LH
43620-40C00
|
$78.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER
43550-40C10
Superseded by 43550-40C11
|
$29.07 | ||
|
Unavailable |
|||
|
#25
RUBBER
43550-40C11
|
$29.07 | ||
|
Unavailable |
|||
|
#26
SCREW
02112-75168
Superseded by 02112-7516A
|
$3.03 | ||
|
Unavailable |
|||
|
#27
SCREW
02112-75208
Superseded by 02112-75207
|
$3.63 | ||
|
Unavailable |
|||
|
#28
BOLT
43642-40C00
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (10.5X24X1.6)
09160-10031
Superseded by 09160-10126
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
09440-05003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION, FOOTREST
43541-40C00
|
$3.59 | ||
|
Unavailable |
|||
|
#32
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
E-RING
08332-11068
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT (8X20)
01517-08205
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#35
.BOLT
01517-08254
Superseded by 01550-0825A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
01517-08304
Superseded by 01550-0830A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
