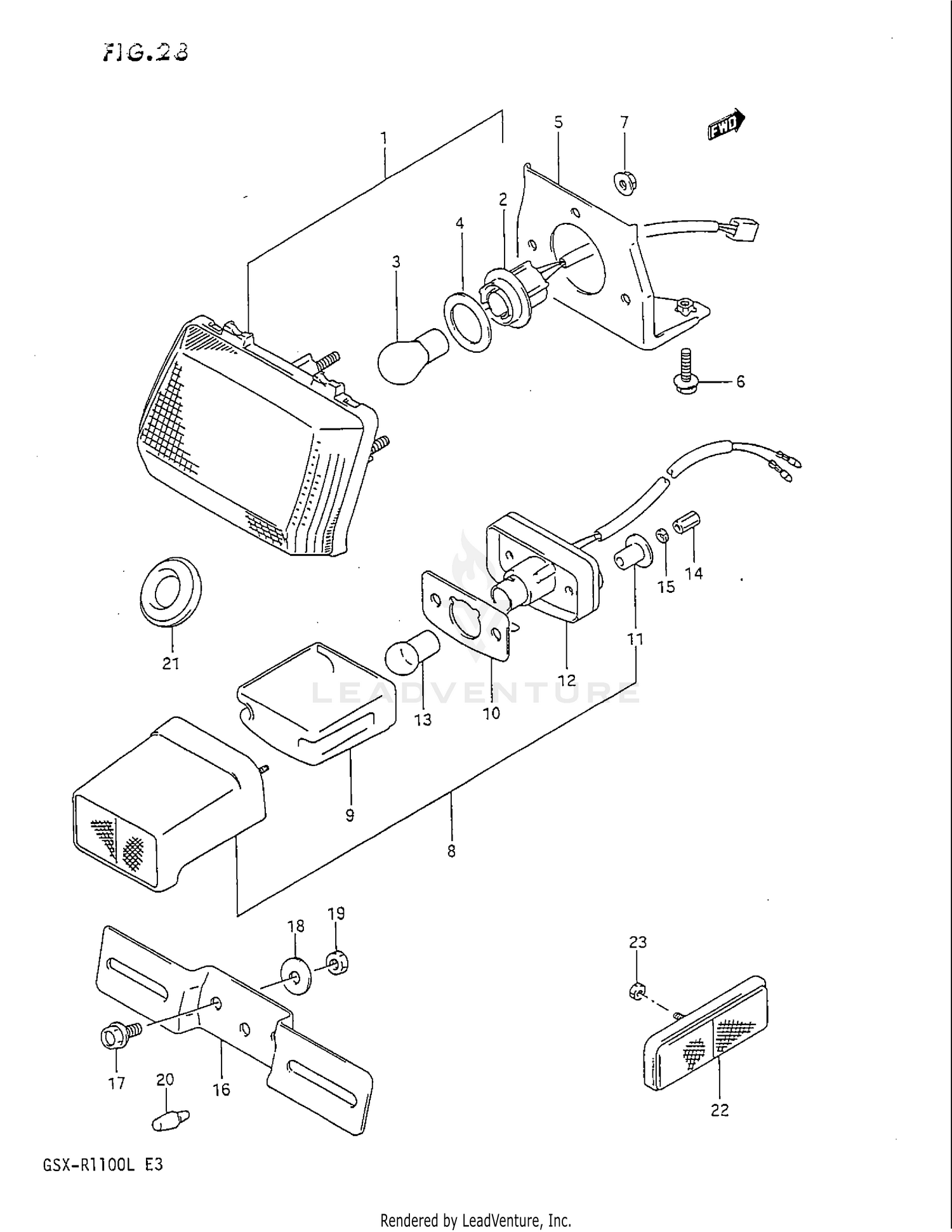

Tail Lamp - License Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
35710-17C00
Superseded by 35710-17X50
|
$78.29 | ||
|
Unavailable |
|||
|
#2
SOCKET & CORD
35718-17C00
|
$30.80 | ||
|
Unavailable |
|||
|
#3
BULB (12V,21/5W)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35764-48B20
|
$1.78 | ||
|
Unavailable |
|||
|
#5
BRACKET
35730-17C00
|
$12.25 | ||
|
Unavailable |
|||
|
#6
BOLT
01517-06128
Superseded by 01550-06127
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-26066
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LAMP ASSY, LICENSE
35910-17C00
|
$109.23 | ||
|
Unavailable |
|||
|
#9
LENS, LICENSE LAMP
35912-38A30
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
35913-38A30
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER
35766-17C00
|
$1.70 | ||
|
Unavailable |
|||
|
#12
HOUSING
35915-17C00
|
$40.53 | ||
|
Unavailable |
|||
|
#13
BULB (12V5W)
09471-12139
Superseded by 09471-12058
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB (12V,5W)
09471-12058
|
$1.72 | ||
|
Unavailable |
|||
|
#14
NUT
09140-04006
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, LICENSE PLATE
35927-00A10
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01517-06164
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
.WASHER (6.5X20X1.6)
09160-06020
Superseded by 09160-06066
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-26066
Superseded by 08316-1006B
|
$3.11 | ||
|
Unavailable |
|||
|
#20
CUSHION
09321-06023
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP,OD:40
09250-30010
Superseded by 72999-67H00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
REFLECTOR, REAR
35970-00A21
Superseded by 35970-00A10
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
.NUT
08310-22055
Superseded by 09140-05006
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
