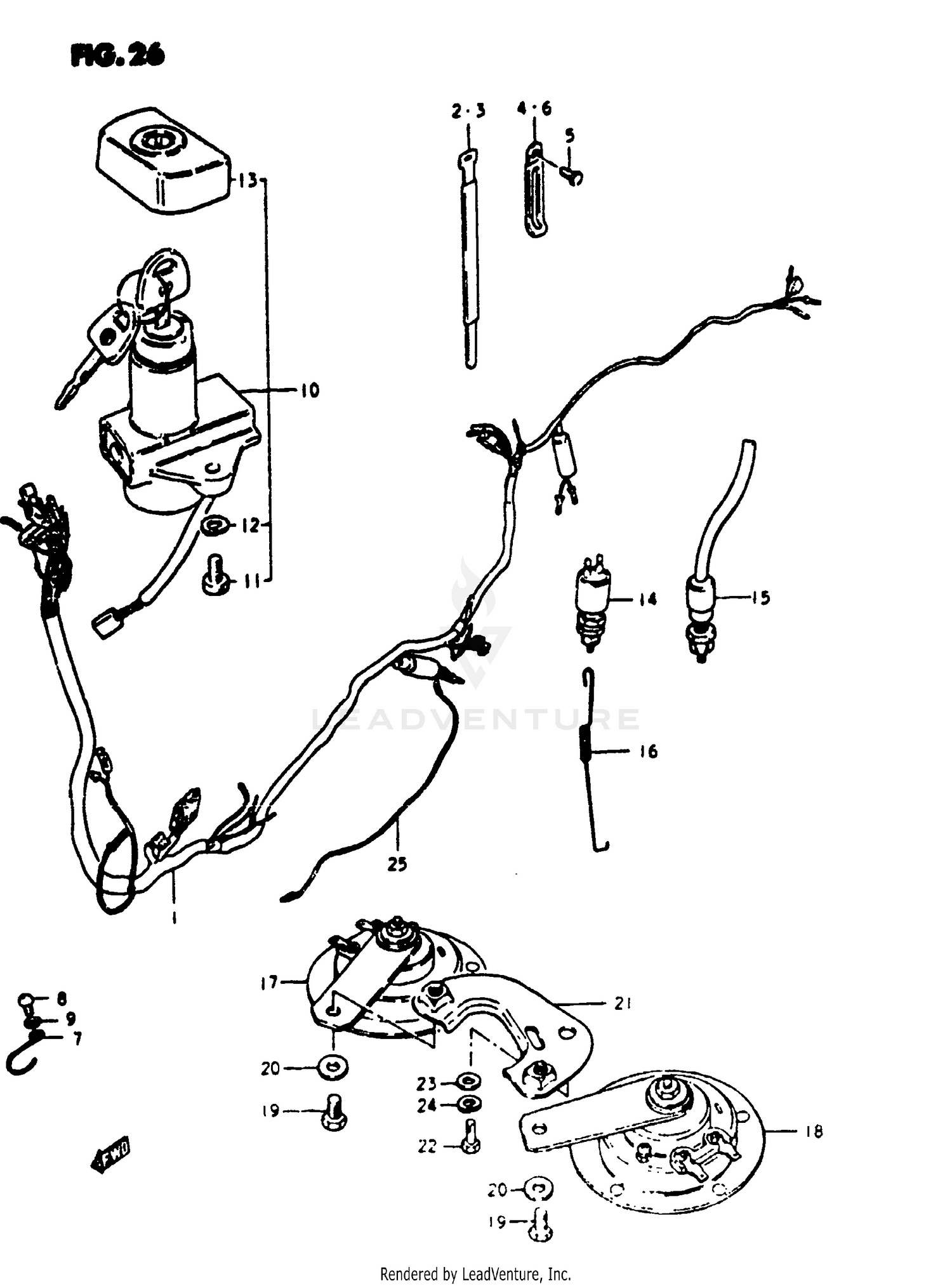

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS
36610-49080
Superseded by 36610-49081
|
$172.17 | ||
|
Unavailable |
|||
|
#1
WIRING HARNESS
36610-49081
|
$172.17 | ||
|
Unavailable |
|||
|
#2
CLAMP (L:120)
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP(L:80)
09404-06414
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01107-06108
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09404-08401
Superseded by 09404-08420
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, WIRING HARNESS
36619-44000
Superseded by 36619-44002
|
$0.82 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
.WASHER
08322-11068
Superseded by 08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NO DESCRIPTION AVAILABLE
37100-49011
Superseded by 37100-49012
|
$186.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
37152-47010
Superseded by 07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER
37155-49011
|
$6.55 | ||
|
Unavailable |
|||
|
#14
SWITCH, REAR BRAKE LAMP
37740-04571
Superseded by 37740-48071
|
$25.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH, BRAKE LAMP
37610-53011
|
$40.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-06006
|
|||
|
Unavailable |
|||
|
#17
HORN ASSY
38502-49010
Superseded by 38502-49001
|
$91.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
NO DESCRIPTION AVAILABLE
38501-49010
Superseded by 38501-47001
|
$74.83 | ||
|
Unavailable |
|||
|
#19
BOLT
01107-08128
Superseded by 01500-08127
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BRACKET, HORN
38590-49002
|
$5.57 | ||
|
Unavailable |
|||
|
#22
BOLT, LH
09100-08067
Superseded by 09100-08143
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
Unavailable |
|||
|
#24
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
LEAD WIRE, PRESSURE SWITCH
36852-49000
|
$11.02 | ||
|
Unavailable |
|||
