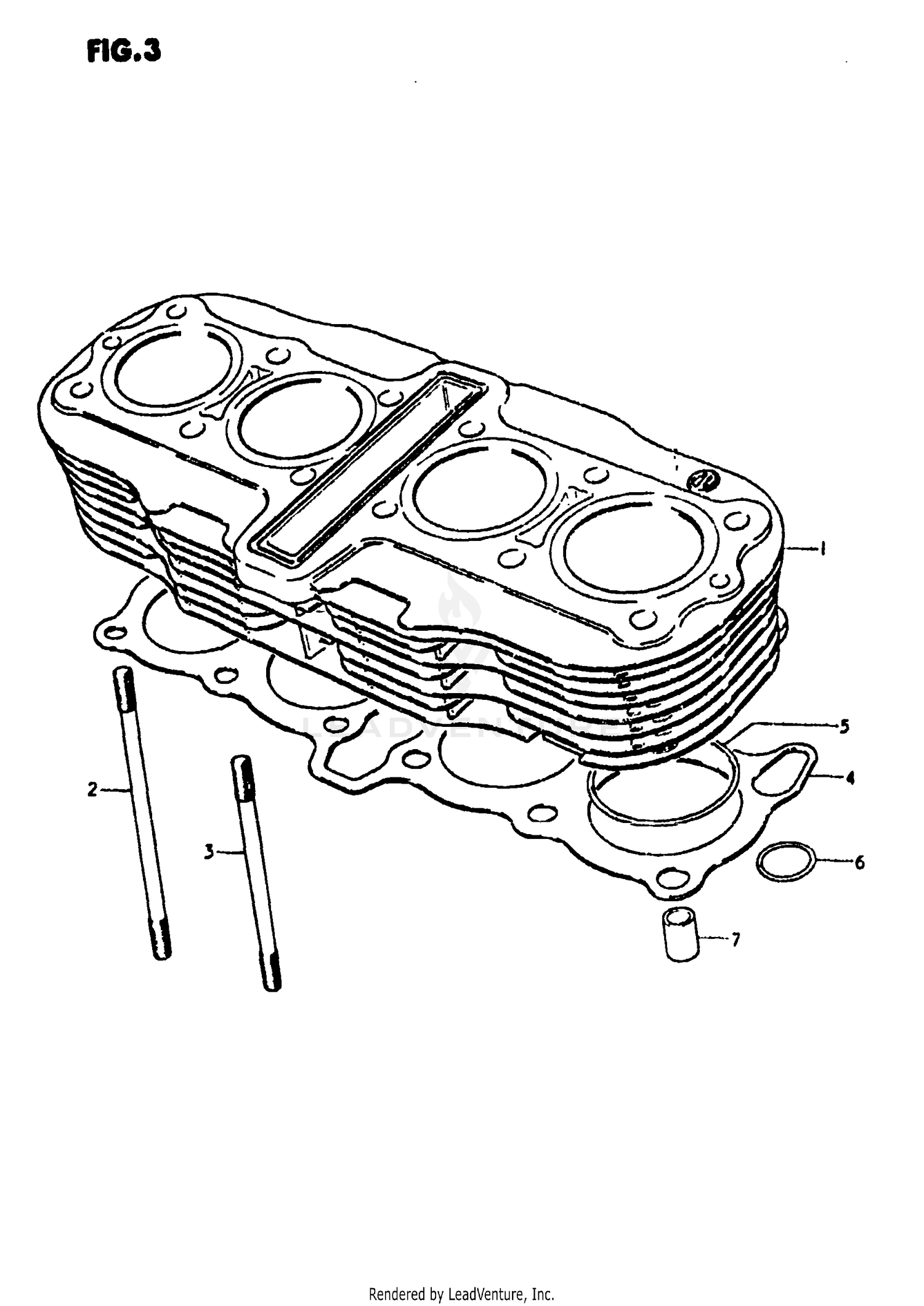

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-49002
Superseded by 11210-49003
|
$565.24 | ||
|
Unavailable |
|||
|
#2
STUD BOLT
09108-10027
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD BOLT (L:168)
09108-10028
Superseded by 09108-10112
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,CYLINDER
11241-49000
Superseded by 11241-49000-H17
|
$19.14 | ||
|
Unavailable |
|||
|
#5
O RING
09280-74002
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
09280-21007
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
