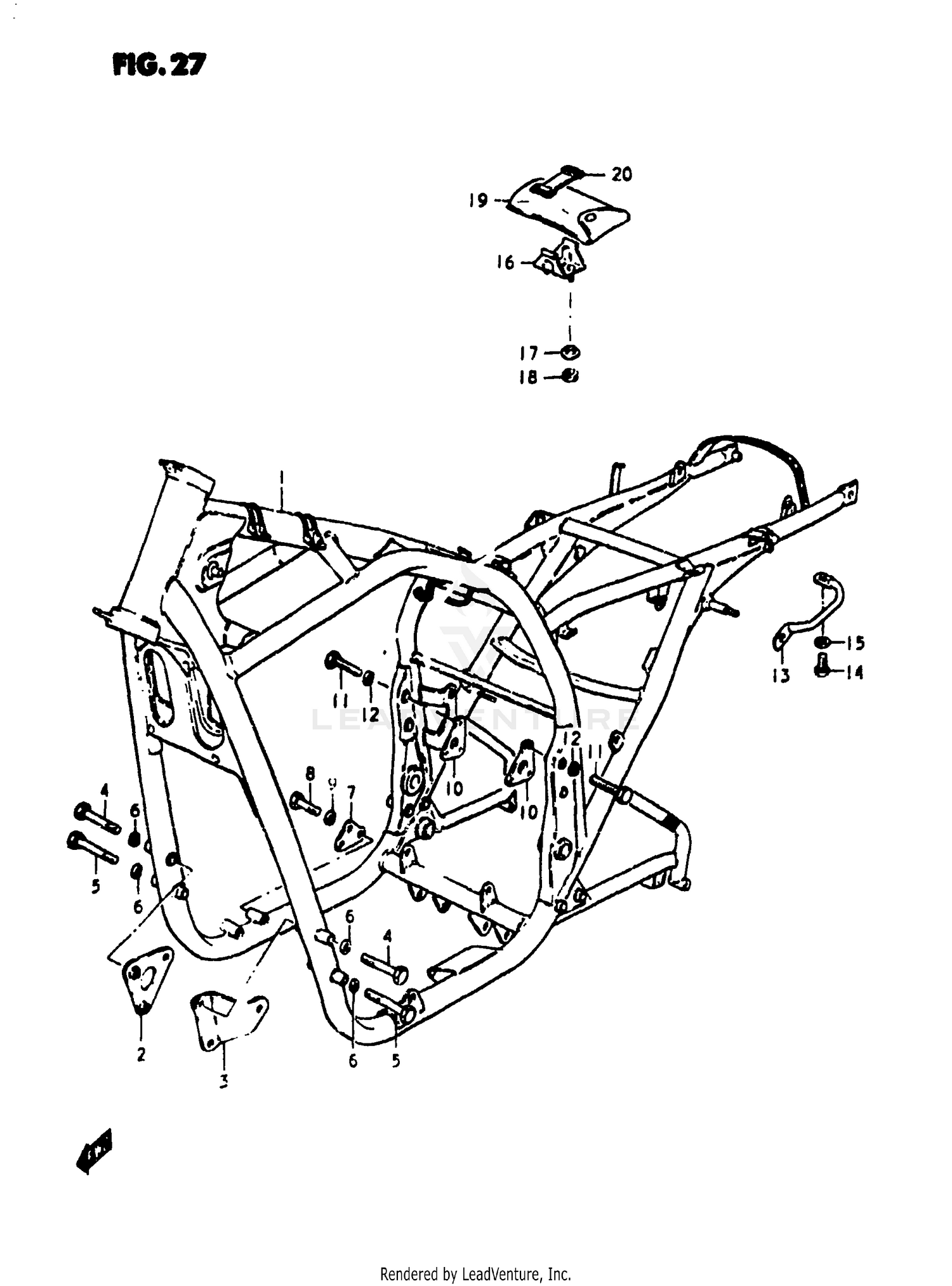

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
41100-49050-019
Superseded by 41100-49051-019
|
$715.86 | ||
|
Unavailable |
|||
|
#2
PLATE, MOUNTING NO. 1 RH
41910-49000-019
|
$13.55 | ||
|
Unavailable |
|||
|
#3
PLATE, MOUNTING NO. 1 LH
41990-49000-019
|
$15.26 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08658
Superseded by 01500-0865B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01107-08708
Superseded by 01500-0870B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, NO.2 (SILVER)
41921-49000-019
Superseded by 41921-49000-13L
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.3 (SILVER)
41940-49000-019
Superseded by 41940-49000-13L
|
$16.67 | ||
|
Unavailable |
|||
|
#11
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#13
GRIP, FRAME HANDLE
41610-49000
Superseded by 41610-34200
|
$40.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Unavailable |
|||
|
#15
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOLDER, TOOL
41550-49000
|
$8.48 | ||
|
Unavailable |
|||
|
#17
WASHER
09169-06011
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
TOOL ASSY
09800-00192
Superseded by 09800-21068
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND
09462-00072
Superseded by 09462-00094
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
