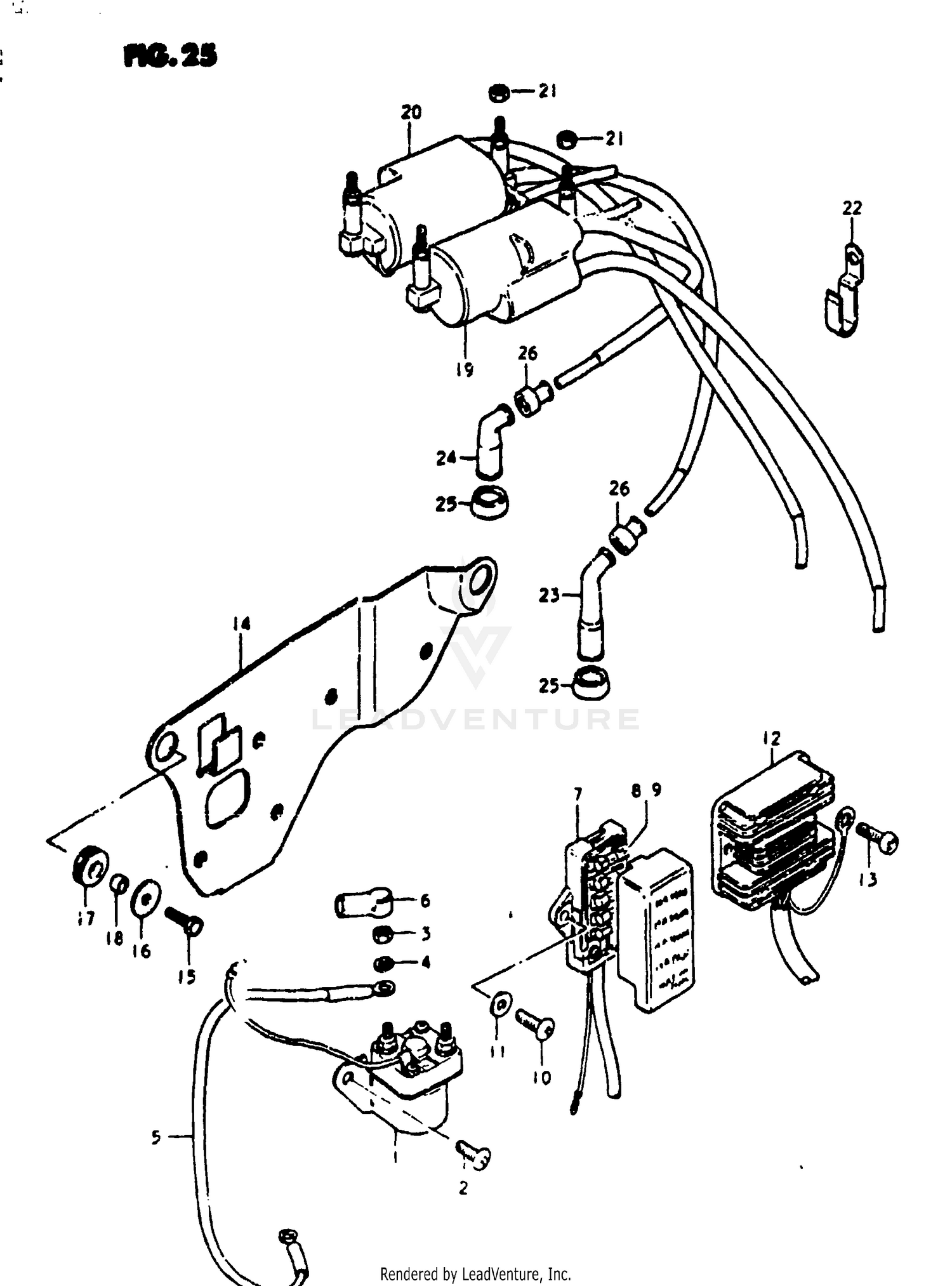

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-37020
Superseded by 31800-37021
|
$94.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06108
Superseded by 02112-06107
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
.NUT
08310-22068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
LEAD WIRE, (-)
33850-49001
Superseded by 33850-03201
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, STARTER MOTOR
31861-35100
Superseded by 31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE BOX ASSY
36740-49200
Superseded by 36740-49X02
|
$102.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE (10A)
09481-10001
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (15A)
09481-15001
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
02112-06168
Superseded by 02112-06167
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RECTIFIER ASSY
32800-45210
Superseded by 32800-49X50
|
$313.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, ELECTRIC PARTS HOLDER
47410-49200
|
$13.52 | ||
|
Unavailable |
|||
|
#15
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.5X9X7)
09180-07005
Superseded by 09180-06259
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COIL ASSY,IGNIT
33410-45110
Superseded by 33410-45112
|
$158.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
COIL ASSY,IGNIT
33420-45110
Superseded by 33410-45112
|
$158.62 | ||
|
Unavailable |
|||
|
#21
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
Unavailable |
|||
|
#22
CLAMP
09403-06307
Superseded by 09403-06329
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, SPARK PLUG (L)
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, SPARK PLUG (S)
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, SPARK PLUG
33541-69010
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL,HIGH TENSION CORD
33542-98000
Superseded by 33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
