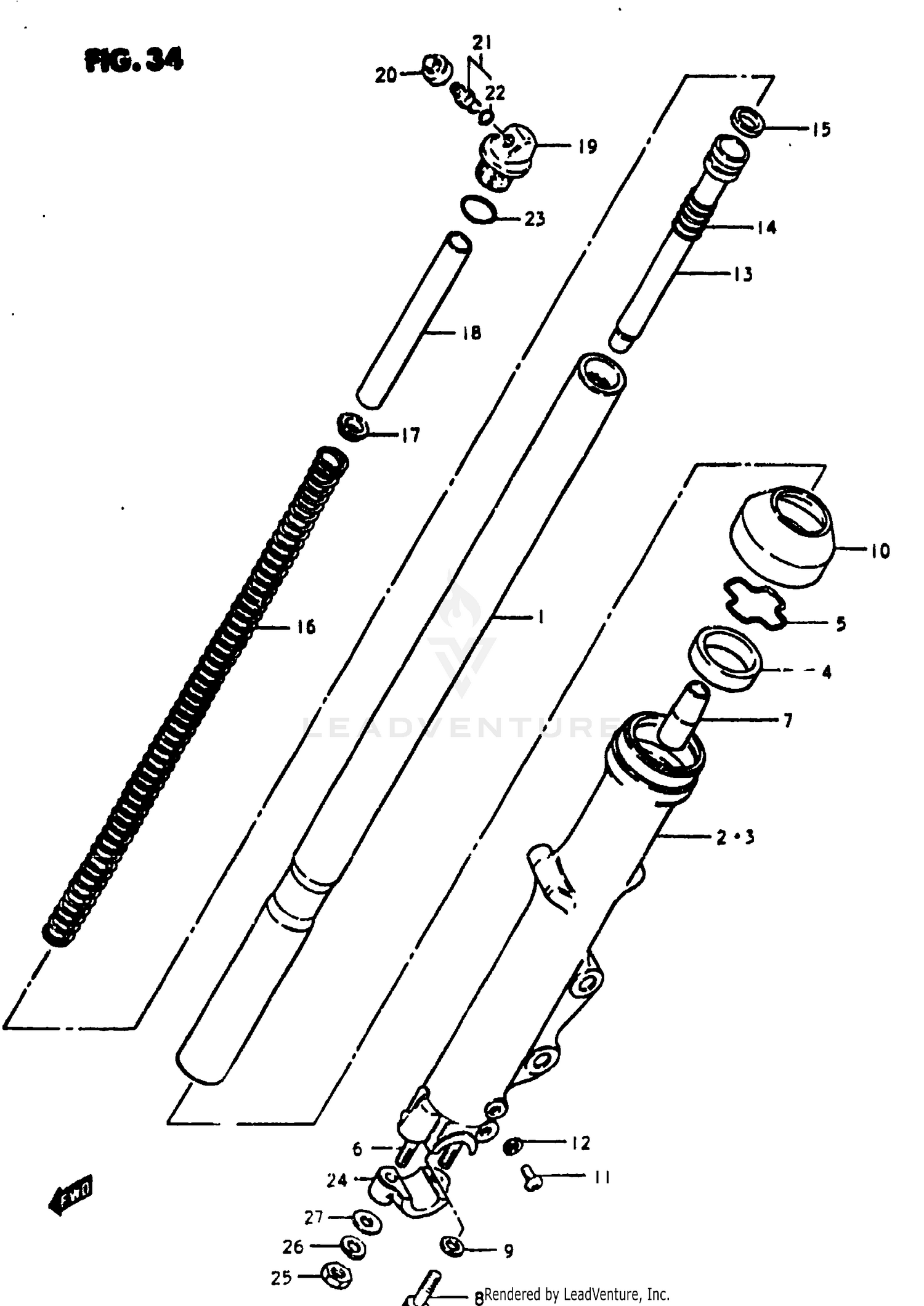

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
DUMPER ASSY, RH
51103-49761
|
$319.46 | ||
|
Unavailable |
|||
|
#0
DUMPER ASSY, LH
51104-49761
|
$319.46 | ||
|
Unavailable |
|||
|
#1
INNER TUBE
51110-49001
|
$338.16 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE, RH
51130-49001
|
$295.08 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, LH
51140-49001
|
$147.46 | ||
|
Unavailable |
|||
|
#4
SEAL, OIL
51153-49000
Superseded by 51153-08C20
|
$26.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, OIL SEAL STOPPER
51156-40301
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
STUD BOLT (L:30)
01421-08308
Superseded by 09108-08142
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIECE, OIL LOCK
51195-49071
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
51147-16510
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
51148-41310
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
DUST SEAL
51173-49002
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-04088
Superseded by 02112-04087
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
51183-03010
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
CYLINDER
51146-49020
|
$60.86 | ||
|
Unavailable |
|||
|
#14
SPRING, REBOUND
51177-49000
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON RING
51196-49000
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, MAIN
51171-49020
|
$52.16 | ||
|
Unavailable |
|||
|
#17
GUIDE, SPRING
51172-38010
|
$6.37 | ||
|
Unavailable |
|||
|
#18
SPACER
51176-41211
|
$3.69 | ||
|
Unavailable |
|||
|
#19
CAP, UPPER
51351-41211
|
$55.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
51294-49000
|
$12.66 | ||
|
Unavailable |
|||
|
#21
VALVE
51293-49001
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
51117-41211
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
O RING
51117-16310
|
$3.44 | ||
|
Unavailable |
|||
|
#24
HOLDER, AXLE
51132-49000
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CLUTCH RELEASE NO.1
09140-08005
Superseded by 09140-08017
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
