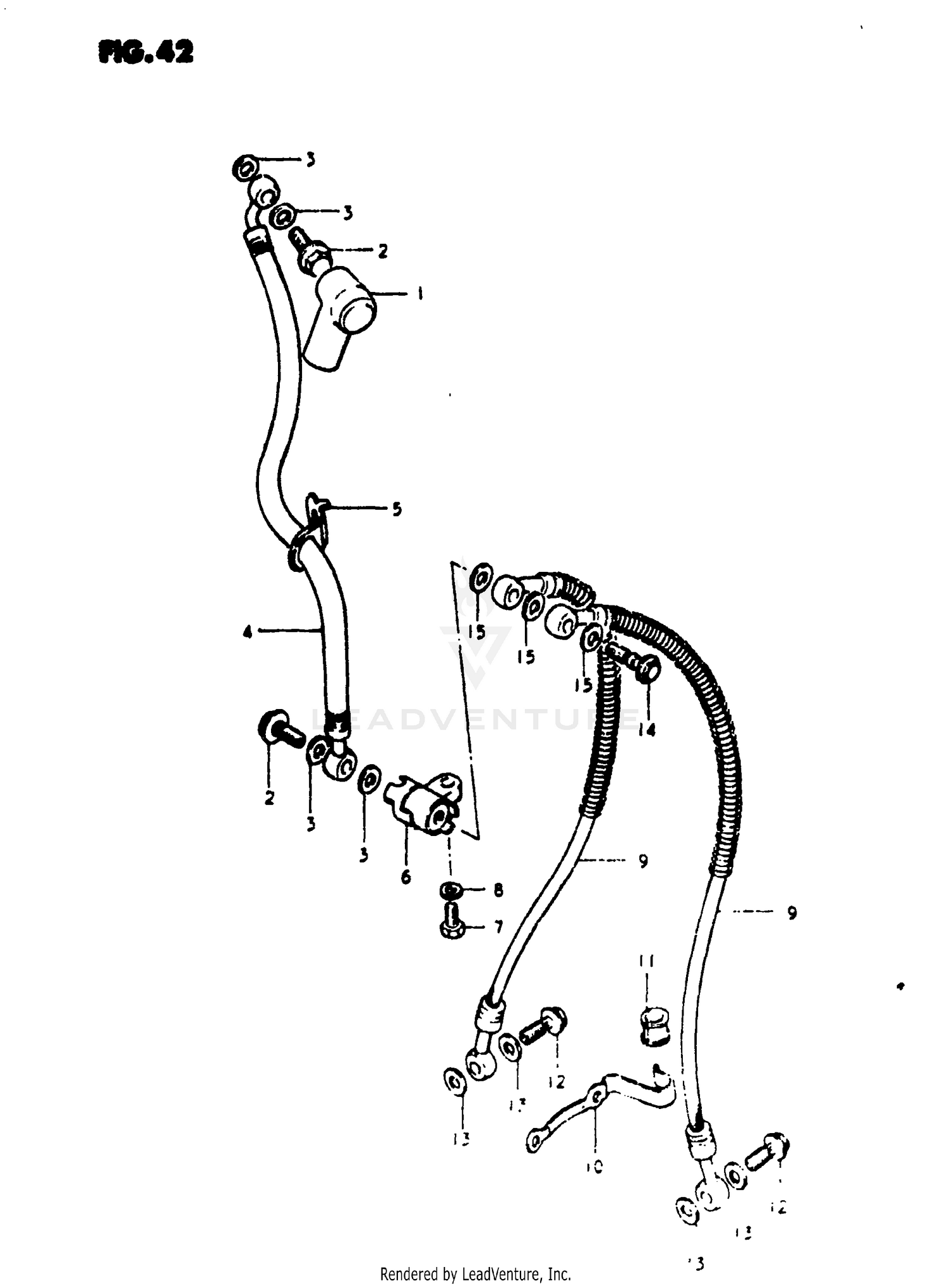

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, MASTER CYLINDER
59711-49001
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNION
09360-10007
Superseded by 09360-10017
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (10X15X1.5)
09161-10005
Superseded by 09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
NO DESCRIPTION AVAILABLE
59480-45621
Superseded by 59480-45623
|
$29.17 | ||
|
Unavailable |
|||
|
#5
GUIDE, HOSE
59243-45010
|
$6.43 | ||
|
Unavailable |
|||
|
#6
JOINT, BRAKE HOSE
59491-45000
Superseded by 59491-45001
|
$37.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01107-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE BRAKE
59240-45000
Superseded by 59240-49400
|
$43.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
59268-49001
|
$7.23 | ||
|
Unavailable |
|||
|
#11
BUSHING
59244-49000
|
$4.32 | ||
|
Unavailable |
|||
|
#12
UNION
09360-10007
Superseded by 09360-10017
|
$4.31 | ||
|
Unavailable |
|||
|
#13
WASHER (10X15X1.5)
09161-10005
Superseded by 09161-10009
|
$2.29 | ||
|
Unavailable |
|||
|
#14
UNION BOLT
09360-10008
Superseded by 09360-10018
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (10X15X1.5)
09161-10005
Superseded by 09161-10009
|
$2.29 | ||
|
Unavailable |
|||
