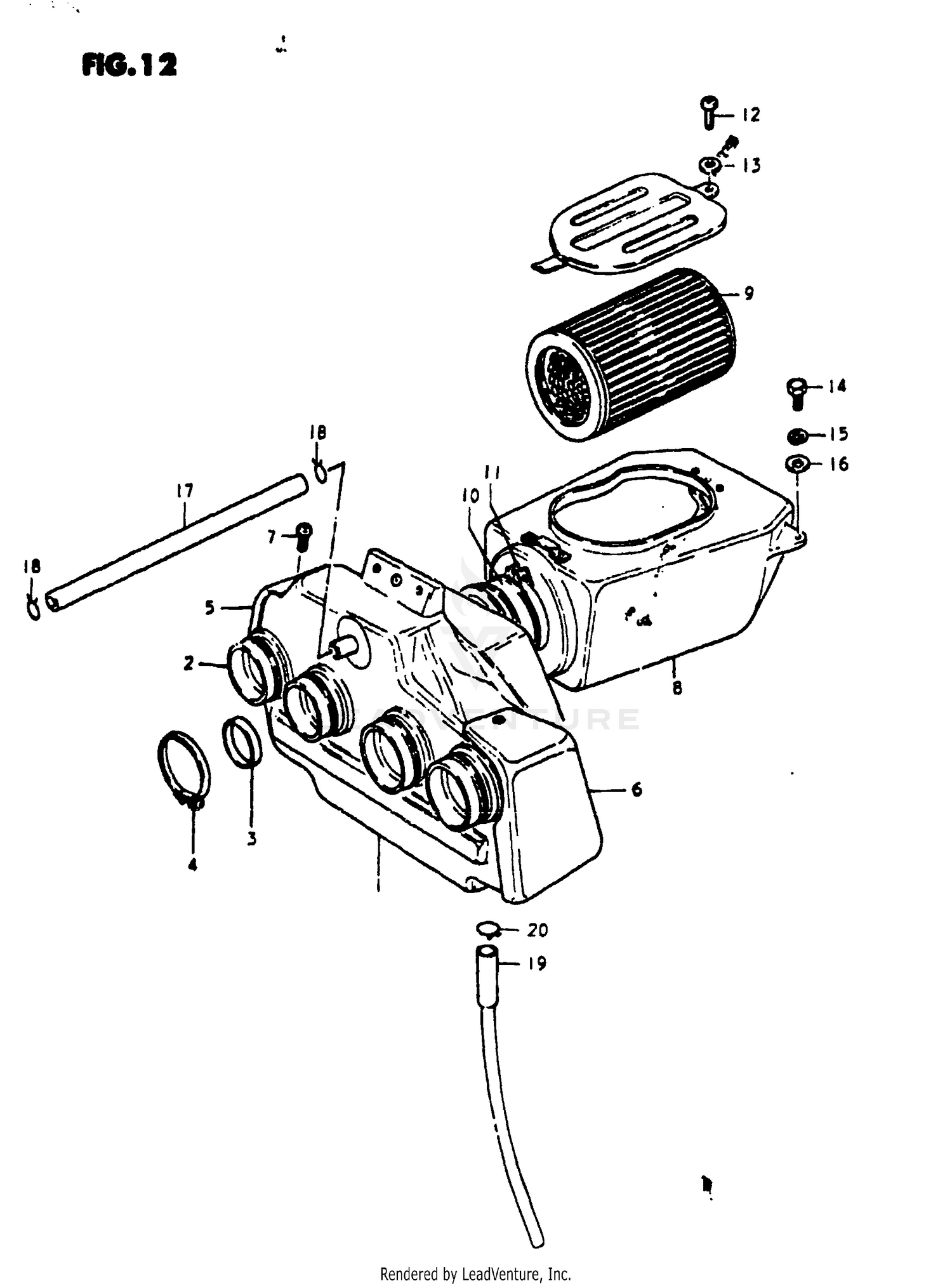

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY, FRONT
13710-49020
|
$93.61 | ||
|
Unavailable |
|||
|
#2
HOSE, OUTLET
13881-49020
Superseded by 13881-49021
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
13885-49000
Superseded by 13885-47030
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-66306
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, RH
13831-49020
|
$26.89 | ||
|
Unavailable |
|||
|
#6
COVER, LH
13832-49020
|
$26.89 | ||
|
Unavailable |
|||
|
#7
SCREW
03211-04108
Superseded by 03211-0410B
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE ASSY, REAR
13701-49001
|
$203.99 | ||
|
Unavailable |
|||
|
#9
FILTER
13780-49000
Superseded by 13780-45500
|
$41.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, JOINT
13795-49000
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
13796-49000
Superseded by 09402-70902
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-05108
Superseded by 02112-05107
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-21058
Superseded by 08322-01057
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HOSE,11X15X2000
13851-00240
Superseded by 09352-11154-00B
|
$52.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE,DRAIN
13870-00020
Superseded by 13870-11459
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
09401-14301
|
$2.53 | ||
|
Unavailable |
|||
