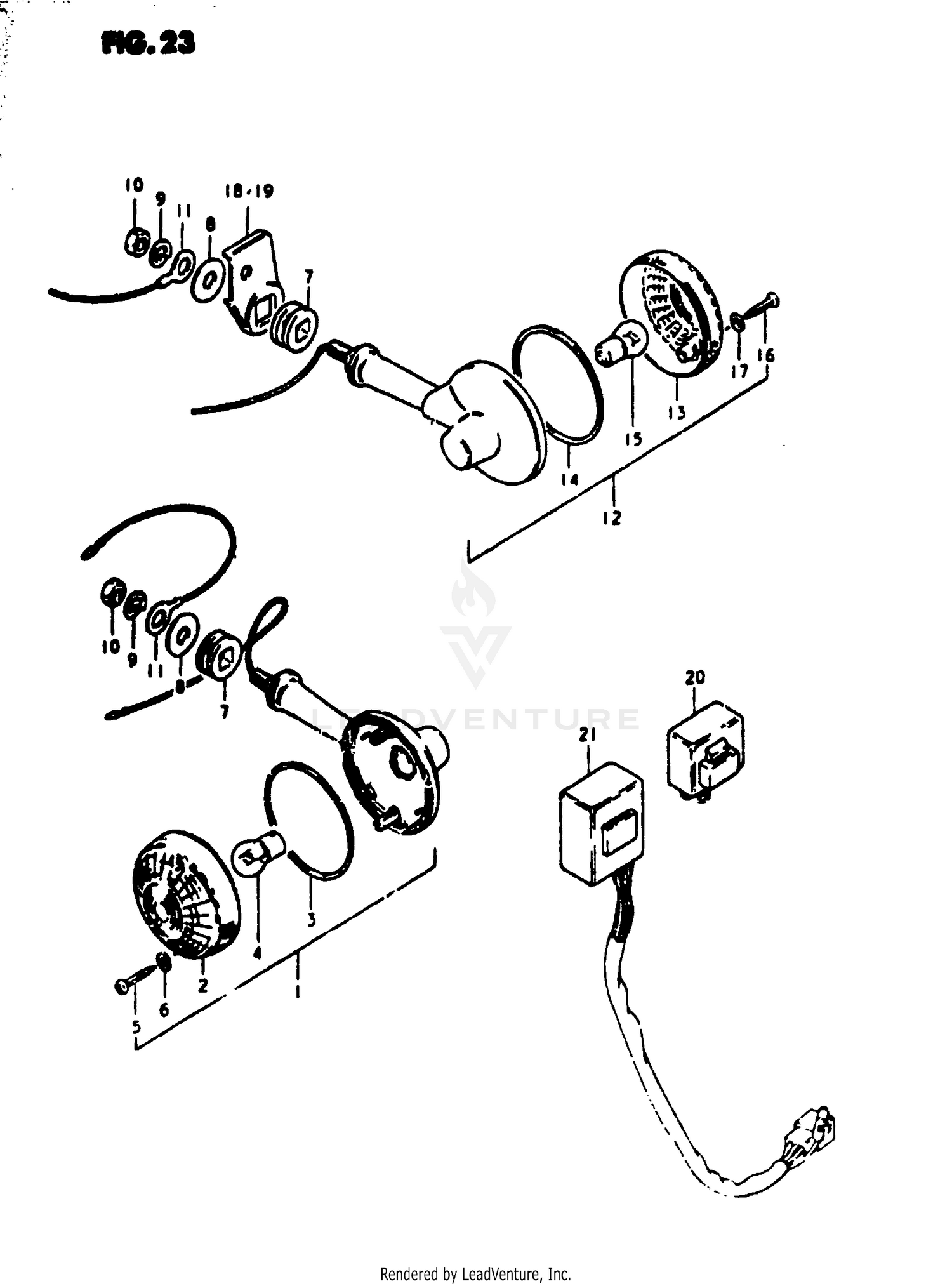

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP TURN SIGNA
35601-49030
Superseded by 35603-49121-999
|
$117.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35612-45010
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-45010
|
$5.16 | ||
|
Unavailable |
|||
|
#4
BULB (12V,23W)
09471-12006
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35625-49030
Superseded by 03211-04306
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR TURN SIG CUS
35690-32200
Superseded by 35690-32201
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, MUFFLER SUPPORT
09160-08001
Superseded by 09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
LEAD WIRE, EARTH
36851-45100
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
LAMP TURN SIGNA
35601-49030
Superseded by 35603-49121-999
|
$117.71 | ||
|
Unavailable |
|||
|
#13
LENS
35612-45010
|
$16.75 | ||
|
Unavailable |
|||
|
#14
GASKET
35613-45010
|
$5.16 | ||
|
Unavailable |
|||
|
#15
BULB (12V,23W)
09471-12006
|
$5.08 | ||
|
Unavailable |
|||
|
#16
SCREW
35625-49030
Superseded by 03211-04306
|
$2.25 | ||
|
Unavailable |
|||
|
#17
GASKET
35627-43010
|
$2.68 | ||
|
Unavailable |
|||
|
#18
BRACKET, RH
41580-45000-019
|
$9.91 | ||
|
Unavailable |
|||
|
#19
BRACKET, LH
41590-45000-019
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY, TURN SIGNAL
38610-49230
Superseded by 38610-49231
|
$59.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
UNIT,TURN SIG C
38830-49200
Superseded by 38830-49X00
|
$346.34 | ||
|
Available to order. Add to View Price |
|||
