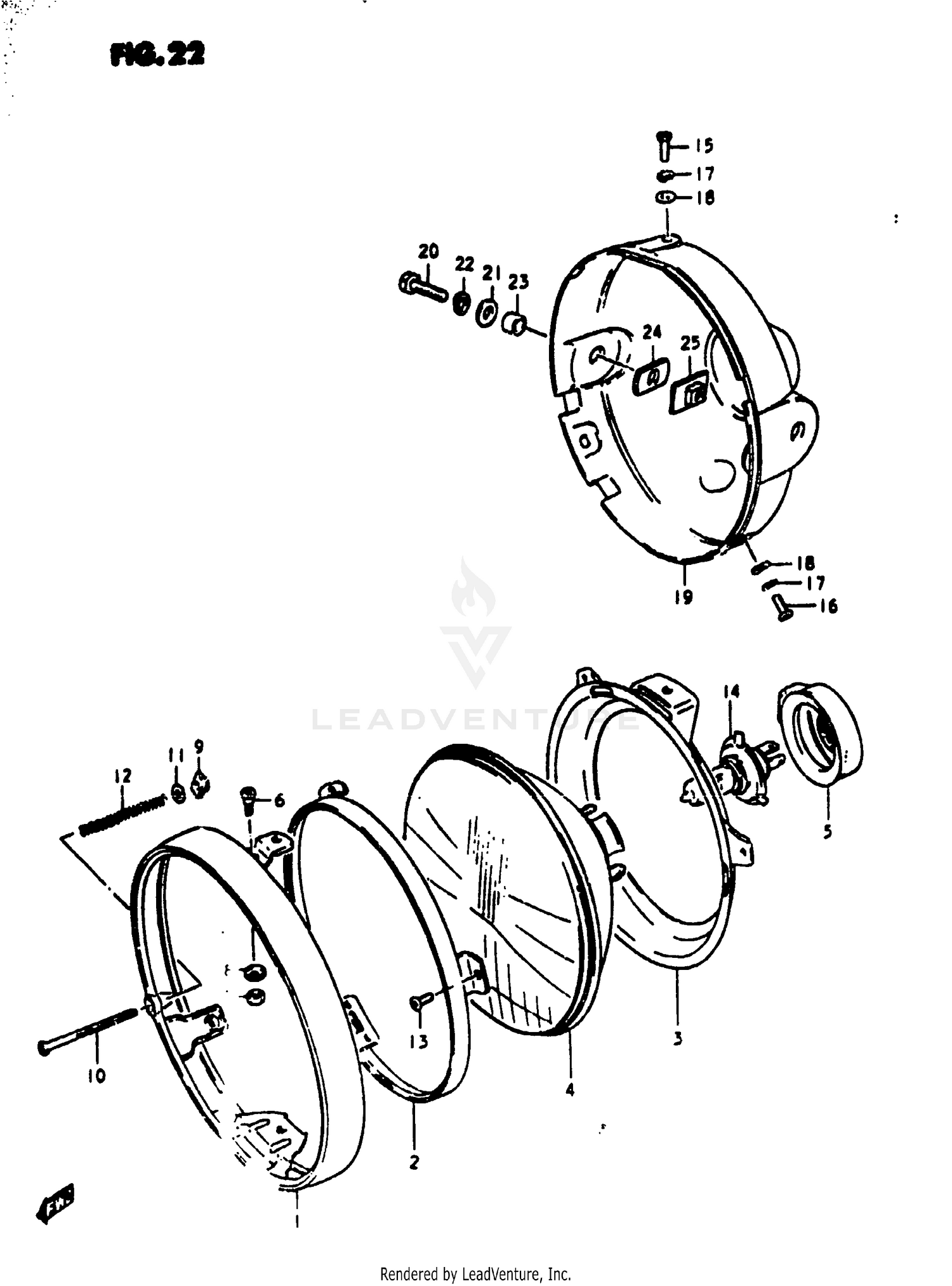

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
HEADLAMP ASSY
35100-49010-999
|
$123.17 | ||
|
Unavailable |
|||
|
#1
RIM
35111-45600
|
$59.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING
35127-45600
|
$38.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, MOUNTING
35130-45600
|
$33.36 | ||
|
Unavailable |
|||
|
#4
UNIT
35121-49010
|
$81.58 | ||
|
Unavailable |
|||
|
#5
COVER
35173-49020
Superseded by 35173-45200
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,HEAD LAMP
35136-25611
Superseded by 35136-35400
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
35135-25611
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
35133-45600
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
35135-45600
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
35151-27630
Superseded by 35151-45230
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
35157-27630
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
35154-45600
|
$2.14 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-03088
Superseded by 02112-0308A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
01104-05168
Superseded by 01500-0516B
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-05168
Superseded by 02112-05167
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09169-06021
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOUSING, HEADLAMP (BLACK)
51811-45002-291
|
$86.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPACER
09180-08030
Superseded by 09180-08187
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CUSHION
09329-12002
Superseded by 09329-12005
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE
51860-45000
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
