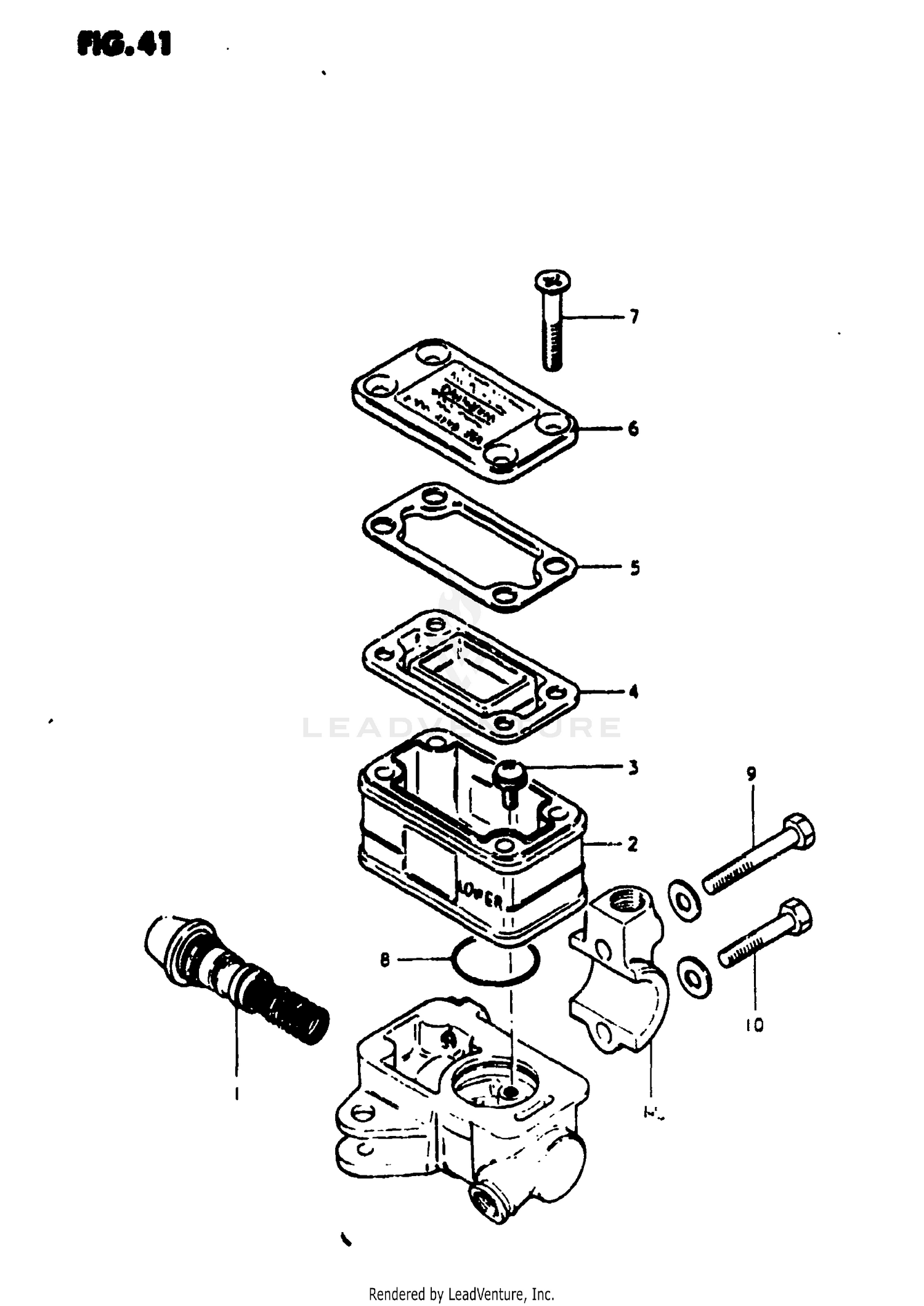

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
CYLINDER ASSY, MASTER
59600-49030
Superseded by 59600-49031
|
$97.59 | ||
|
Unavailable |
|||
|
#1
PISTON/CUP SET
59600-49810
Superseded by 59600-49811
|
$60.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RESERVOR
59687-49000
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
59688-49000
Superseded by 02112-0410A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-49000
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE
59668-49000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
59669-49030
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
59691-49000
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
59686-49000
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
59694-49000
|
|||
|
Unavailable |
|||
|
#10
BOLT
59693-49000
|
|||
|
Unavailable |
|||
|
#11
BOLT
59671-49000
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
