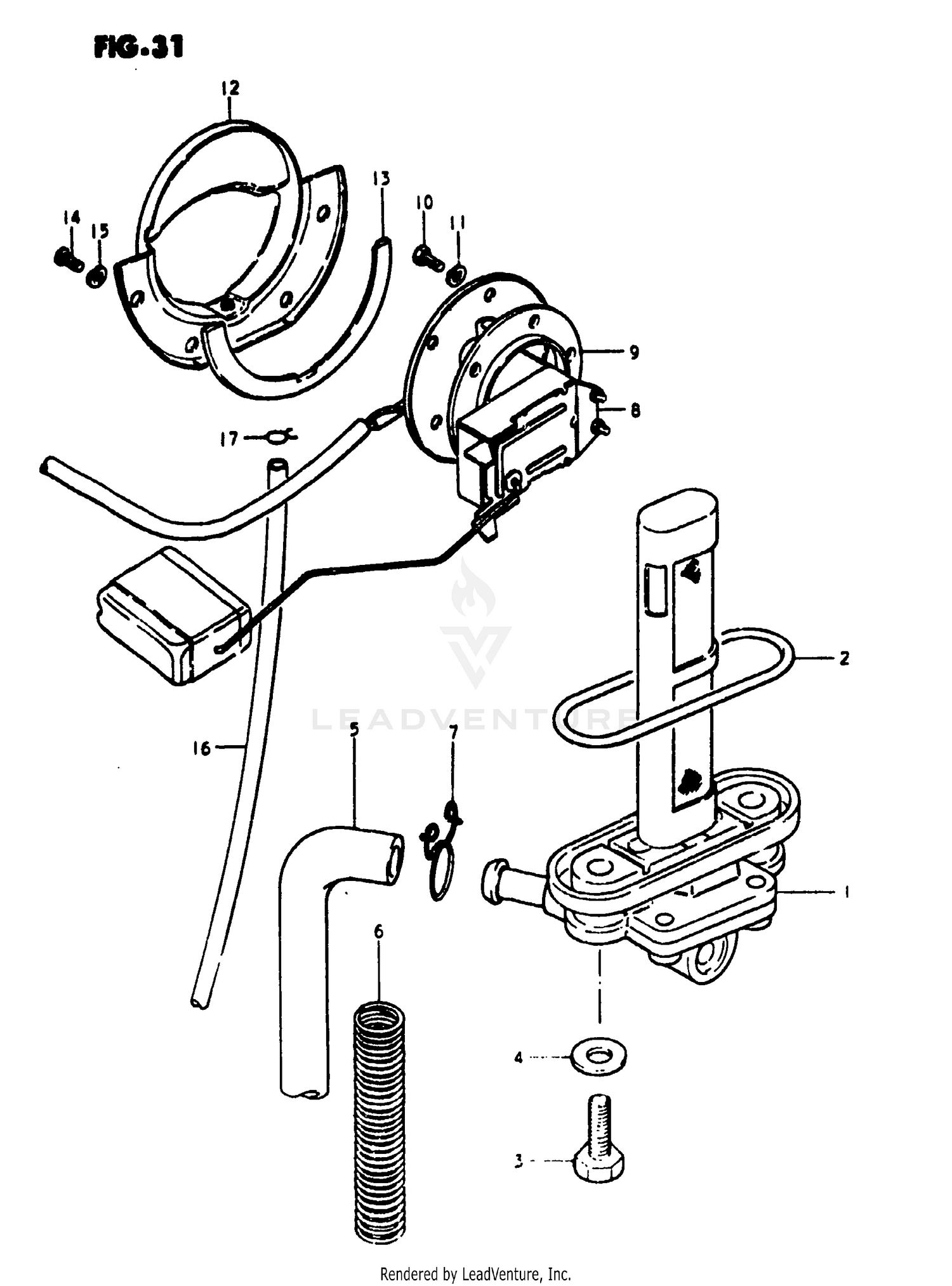

Fuel Cock Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COCK ASSY, FUEL
44300-47270
|
$107.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
44348-47270
Superseded by 44348-47271
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STARTING MOTOR
09128-06024
Superseded by 09103-06212
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET (5.8X13X1.2)
09168-06010
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HOSE(7X10.2X200
09343-07026
Superseded by 09352-70104-00B
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09440-13018
Superseded by 09440-13043
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
09401-10403
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
GAUGE ASSY, FUEL LEVEL
34810-49002
|
$82.87 | ||
|
Unavailable |
|||
|
#9
GASKET
34825-49001
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01104-05108
Superseded by 01500-0510B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
34885-49002
Superseded by 34885-49005
|
$23.81 | ||
|
Unavailable |
|||
|
#13
GASKET,FUEL DRA
34888-49000
Superseded by 34888-49001
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-05068
Superseded by 09125-05122
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#16
HOSE
09343-05165
Superseded by 09352-50005-00B
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
09401-08402
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
